About the Shirley-FC-Dev-Board

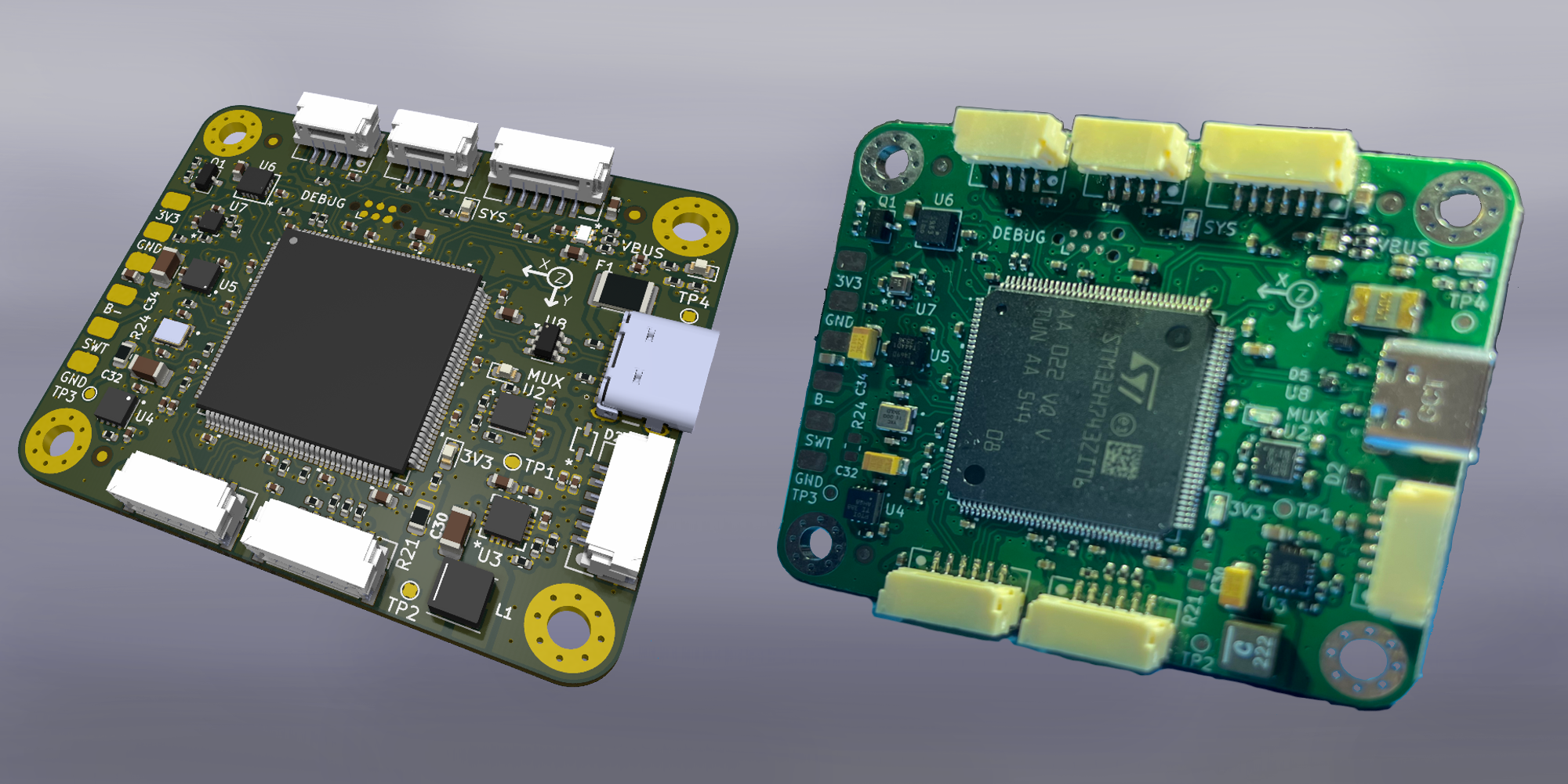

Shirley-FC-Dev-Board is an open source STM32 PCB design by Bare-Metal-Foundry, published on GitHub. It is a 4-layer board measuring 56 × 46 mm, with 110 components from 49 distinct parts.
Its main chip is the STM32H743ZIT6, from the STM32 family. Other key parts include the TPS2113ADRBR, TPS62130ARGTR, TPS7A2133PQWDRBRQ1, ICM-40609-D and MMC5983MA. By type, the board carries 49 capacitors, 42 resistors, 8 ICs, 6 diodes, 1 transistor and 1 crystal.
It belongs with the robotics & motion, dev boards & breakouts and sensors designs in this gallery.
From the project
This repository contains all the source files and documentation concerning a custom FC Development Board
Shirley is high-performance flight controller hardware platform built around the STM32H743 microcontroller, designed for custom firmware development and compatibility with existing flight stacks.
Note: All connectors are GH1.25 connectors
This project uses atomic documentation - each subsystem is documented independently in /docs:
- Hardware Overview - System architecture and block diagrams - Power Architecture - Power rail design and specifications - Design Decisions - Component selection rationale - STM32 Subsystem - MCU peripheral configuration

Main components on the Shirley-FC-Dev-Board
Shirley-FC-Dev-Board bill of materials (BOM)
110 components, 49 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H743ZIT6 STMicroelectronics | STM32H743ZIT6 | U1 |
| 1 | TPS2113ADRBR Texas Instruments | TPS2113ADRBR | U2 |
| 1 | TPS62130ARGTR Texas Instruments | TPS62130ARGTR | U3 |
| 1 | TPS7A2133PQWDRBRQ1 Texas Instruments | TPS7A2133PQWDRBRQ1 | U4 |
| 1 | ICM-40609-D InvenSense | ICM-40609-D | U5 |
| 1 | MMC5983MA Memsic | MMC5983MA | U6 |
| 1 | BMP390 BOSCH | BMP390 | U7 |
| 1 | TPD2EUSB30ADRTR TPD2EUSB30A Texas Instruments | Texas_DRT-3 | U8 |
| 1 | AO3400A Alpha & Omega Semicon | SOT-23-3 | Q1 |
| 1 | X322516MLB4SI 16MHz YXC Crystal Oscillators | TSX-3225_16MHz | Y2 |
| 1 | MF-MSMF050-2 BOURNS | Fuse_1812_4532Metric | F1 |
| 1 | 19-337C/RSBHGHC-A88/4T Everlight | SMD-B_19-337C_EVE | LED1 |
| 1 | KT-0603R SYS_LED Hubei KENTO Elec | LED_0603_1608Metric | D1 |
| 2 | LTVS16H5.0T5G LTVS16H5 LRC | DFN1610-2 | D2, D5 |
| 1 | KT-0603R MUX_LED Hubei KENTO Elec | LED_0603_1608Metric | D3 |
| 1 | KT-0603R PWR_LED Hubei KENTO Elec | LED_0603_1608Metric | D4 |
| 1 | KT-0603R USB_LED Hubei KENTO Elec | LED_0603_1608Metric | D6 |
| 1 | XFL4020-222MEC 2.2u Coilcraft | L_Coilcraft_XxL4020 | L1 |
| 6 | CL10A106MA8NRNC 10u Samsung Electro-Mechanics | C_0603_1608Metric | C1, C27, C38, C41, C48, C49 |
| 26 | CL05B104KO5NNNC 100n Samsung Electro-Mechanics | C_0402_1005Metric | C2, C3, C4, C5, C6, C7, C8, C9 +18 |
Show 29 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | CL05A105KA5NQNC 1u Samsung Electro-Mechanics | C_0402_1005Metric | C16, C23, C31, C37, C43, C45, C46, C47 |
| 2 | CL05C100JB5NNNC 10p Samsung Electro-Mechanics | C_0402_1005Metric | C18, C19 |
| 2 | CL10A225KO8NNNC 2.2u Samsung Electro-Mechanics | C_0603_1608Metric | C20, C21 |
| 1 | CL05B332KB5NNNC 3.3n Samsung Electro-Mechanics | C_0402_1005Metric | C29 |
| 1 | TAJA226M016RNJ 22u KYOCERA AVX | C_1206_3216Metric | C30 |
| 1 | T491A106K010AT 10u KEMET | C_1206_3216Metric | C32 |
| 1 | TAJA225K016RNJ 2.2u KYOCERA AVX | C_1206_3216Metric | C34 |
| 1 | CL05B103KB5NNNC 10n Samsung Electro-Mechanics | C_0402_1005Metric | C36 |
| 7 | 0402WGF1002TCE 10k UNI-ROYAL | R_0402_1005Metric | R1, R23, R25, R26, R29, R37, R42 |
| 1 | 0402WGF499JTCE 47 UNI-ROYAL | R_0402_1005Metric | R2 |
| 1 | 0402WGF0000TCE 0R UNI-ROYAL | R_0402_1005Metric | R3 |
| 1 | 0402WGF1000TCE 100 UNI-ROYAL | R_0402_1005Metric | R4 |
| 6 | 0402WGF330JTCE 33 UNI-ROYAL | R_0402_1005Metric | R5, R6, R7, R8, R9, R10 |
| 3 | 0402WGF2200TCE 220 UNI-ROYAL | R_0402_1005Metric | R11, R12, R13 |
| 1 | 0402WGF5101TCE 4.3k UNI-ROYAL | R_0402_1005Metric | R14 |
| 1 | 0402WGF1001TCE 820 UNI-ROYAL | R_0402_1005Metric | R15 |
| 3 | 0402WGF2200TCE 250 UNI-ROYAL | R_0402_1005Metric | R16, R17, R33 |
| 1 | 0402WGF1003TCE 100k UNI-ROYAL | R_0402_1005Metric | R18 |
| 1 | 0402WGF4701TCE 7.5k UNI-ROYAL | R_0402_1005Metric | R19 |
| 1 | 0402WGF1501TCE 2.4k UNI-ROYAL | R_0402_1005Metric | R20 |
| 2 | 0R | R_0805_2012Metric | R21, R24 |
| 1 | 0402WGF1501TCE 1.5k UNI-ROYAL | R_0402_1005Metric | R22 |
| 2 | 0402WGF2201TCE 2.2k UNI-ROYAL | R_0402_1005Metric | R27, R28 |
| 1 | 0402WGF5102TCE 56k UNI-ROYAL | R_0402_1005Metric | R30 |
| 1 | 0402WGF5101TCE 43k UNI-ROYAL | R_0402_1005Metric | R31 |
| 1 | 0402WGF1002TCE 82k UNI-ROYAL | R_0402_1005Metric | R32 |
| 2 | 0402WGF5101TCE 5.1k UNI-ROYAL | R_0402_1005Metric | R34, R35 |
| 1 | 0402WGF1001TCE 1k UNI-ROYAL | R_0402_1005Metric | R36 |
| 4 | 0402WGF4701TCE 4.7k UNI-ROYAL | R_0402_1005Metric | R38, R39, R40, R41 |
Shirley-FC-Dev-Board design files
The KiCad project lives in the Bare-Metal-Foundry/Shirley-FC-Dev-Board repository on GitHub; these links point at the commit this page was built from.
Shirley-FC-Dev-Board: common questions
What microcontroller does the Shirley-FC-Dev-Board use?
The Shirley-FC-Dev-Board is built around the STM32H743ZIT6, from the STM32 family.
How big is the Shirley-FC-Dev-Board?
The Shirley-FC-Dev-Board measures 56 × 46 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Shirley-FC-Dev-Board?
110 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Shirley-FC-Dev-Board design files?
From the Bare-Metal-Foundry/Shirley-FC-Dev-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Shirley-FC-Dev-Board design in my own project?
The repository has no license, so all rights stay with Bare-Metal-Foundry. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Shirley-FC-Dev-Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
