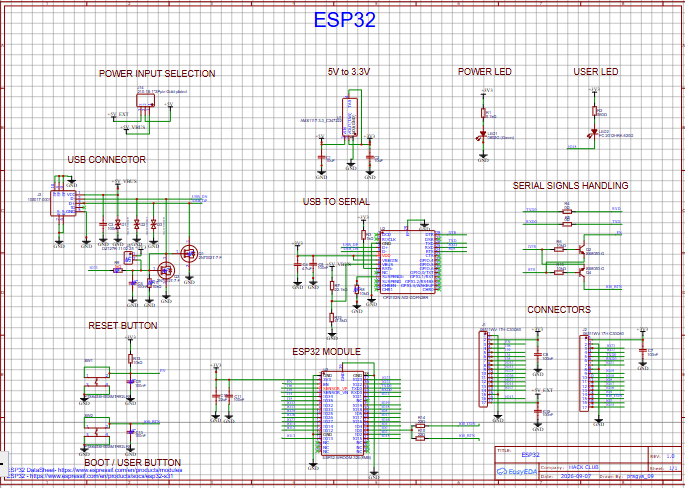

About the MY-COOL-ESP32 PCB

MY-COOL-ESP32 is an open source ESP32 PCB design by bhardwajpragya1111-lgtm, published on GitHub. It is a board, with 47 components from 25 distinct parts.

Its main chip is the ESP32-WROOM-32E-N8, from the ESP32 family. Other key parts include the AMS1117-3.3_C347222 and CP2102N-A02-GQFN28R. By type, the board carries 15 resistors, 13 capacitors, 5 connectors, 4 transistors, 3 ICs and 3 diodes.

It belongs with the iot & wireless, dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Watch the complete project demonstration on YouTube:

Watch the complete project demonstration on YouTube:

This video demonstrates the project functionality, hardware setup, working process, and final output.

- ESP32-based custom development board - Wi-Fi connectivity - Bluetooth connectivity - USB interface for programming and power - GPIO header pins for external components - BOOT/RESET control buttons - Custom PCB layout and routing - Compact development-board design - Designed and routed in EasyEDA - Editable PCB design file included - 3D OBJ model included - Gerber manufacturing files included - User LED connected to GPIO18 - Basic…

Main components on the MY-COOL-ESP32

AMS1117-3.3_C347222CP2102N-A02-GQFN28RESP32-WROOM-32E-N8

MY-COOL-ESP32 bill of materials (BOM)

47 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3_C347222
UMW(友台半导体)
U1
1
CP2102N-A02-GQFN28R
SKYWORKS/SILICON LABS(芯科)
U2
1
ESP32-WROOM-32E-N8
ESP32-WROOM-32E(8MB)
ESPRESSIF(乐鑫)
U3
2
2N7002T-7-F
DIODES(美台)
Q1, Q3
2
SS8050-G
CJ(江苏长电/长晶)
Q2, Q4
2
X6511WV-17H-C30D60
XKB Connection(中国星坤)
J1, J2
1
105017-0001
MOLEX
J3
1
DZ127R-11-02-25
DEALON(德艺隆)
J5
1
B-2101S03P-A110
210-1S-1*3Ppin Gold-plated
Ckmtw(灿科盟)
J14
2
PTS645SH50SMTR92LFS
C&K
SW1, SW2
1
KT-0805G
0805G (Green)
KENTO
LED1
1
FC-2012HRK-620D
国星光电
LED2
3
LESD5D5.0CT1G
LRC(乐山无线电)
D1, D2, D3
2
10UF
10uF
SAMSUNG(三星)
C1, C2
9
100NF
100nF
SAMSUNG(三星)
C3, C5, C6, C7, C8, C9, C11, C12 +1
1
4.7UF
4.7uF
SAMSUNG(三星)
C4
1
22UF
22uF
SAMSUNG(三星)
C10
1
0402WGF5101TCE
5.1kΩ
UNI-ROYAL(厚声)
R1
1
0402WGF5600TCE
560Ω
UNI-ROYAL(厚声)
R2
2
0402WGF1001TCE
1kΩ
UNI-ROYAL(厚声)
R3, R9
Show 5 more
QtyPartRefs
2
0402WGF0000TCE
0Ω
UNI-ROYAL(厚声)
R4, R5
5
0402WGF1002TCE
10kΩ
UNI-ROYAL(厚声)
R6, R8, R10, R11, R13
1
0402WGF2212TCE
22.1kΩ
UNI-ROYAL(厚声)
R7
1
0402WGF4752TCE
47.5kΩ
UNI-ROYAL(厚声)
R12
2
0402WGF220JTCE
22Ω
UNI-ROYAL(厚声)
R14, R15

MY-COOL-ESP32 design files

The KiCad project lives in the bhardwajpragya1111-lgtm/MY-COOL-ESP32 repository on GitHub; these links point at the commit this page was built from.

MY-COOL-ESP32: common questions

What microcontroller does the MY-COOL-ESP32 use?

The MY-COOL-ESP32 is built around the ESP32-WROOM-32E-N8, from the ESP32 family.

How many components are on the MY-COOL-ESP32?

47 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MY-COOL-ESP32 design files?

From the bhardwajpragya1111-lgtm/MY-COOL-ESP32 repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the MY-COOL-ESP32 design in my own project?

The repository has no license, so all rights stay with bhardwajpragya1111-lgtm. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MY-COOL-ESP32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
