Teensy4 esp32 sd usb host breakout

blackketter·teensy4_esp32_sd_usb_host_breakout

Teensy4 esp32 sd usb host breakout layout, top view — open source ESP32 board by blackketter
Simulate this board

About the Teensy4 esp32 sd usb host breakout

Teensy4 esp32 sd usb host breakout is an open source ESP32 PCB design by blackketter, published on GitHub. It is a 2-layer board measuring 22.9 × 55.9 mm, with 33 components from 25 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the TPD3S014 and TLV75733PDBVR. By type, the board carries 9 resistors, 8 capacitors, 7 connectors, 3 ICs, 2 diodes and 1 battery holder.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Breakout board for Teensy 4.0 with ESP32, SD slot, USB Host (and more)

A jumbo breakout board with ESP32, USB-A host and microSD connectors to mate with the Teensy 4 Header Breakout Board.

Additionally, the board includes a space for RTC Battery Holder and provides another Teensy reset/programming button (since it covers up the one on the Teensy).

It's designed to mount above or below the Teensy 4 and Header Breakout board on a relatively tall header.

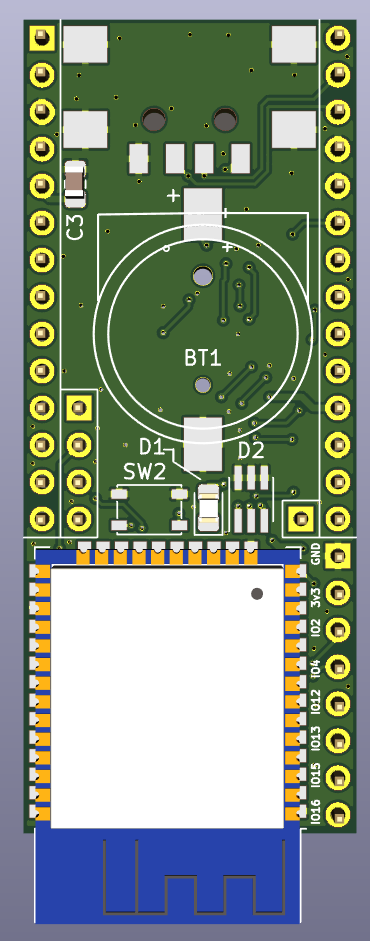

Teensy4 esp32 sd usb host breakout, from the project README
From the project README

Main components on the Teensy4 esp32 sd usb host breakout

TPD3S014TLV75733PDBVRESP32-WROOM-32D

Teensy4 esp32 sd usb host breakout bill of materials (BOM)

33 components, 25 distinct parts.

QtyPartRefs
1
TPD3S014
U1
1
TLV75733PDBVR
U2
1
ESP32-WROOM-32D
U3
2
Conn_01x14
J1, J3
1
USB_A
J2
1
Micro_SD_Card_Det_Hirose_DM3AT
J4
1
Conn_01x08
J5
1
Conn_01x04
J6
1
Conn_01x01
J7
1
Battery_Cell
BT1
1
500mA
F1
1
PROGRAM
SW2
1
LED
D1
1
LED_RGB
D2
1
ferrite 150
L1
1
0.1u/50v
C1
1
22u/10v
C2
1
10u
C3
3
1u
C4, C5, C8
1
2u2
C6
Show 5 more
QtyPartRefs
1
100u
C7
1
10k
R1
4
0R
R2, R3, R5, R6
1
2k
R4
3
1k
R7, R8, R9

Teensy4 esp32 sd usb host breakout design files

The KiCad project lives in the blackketter/teensy4_esp32_sd_usb_host_breakout repository on GitHub; these links point at the commit this page was built from.

Teensy4 esp32 sd usb host breakout: common questions

What microcontroller does the Teensy4 esp32 sd usb host breakout use?

The Teensy4 esp32 sd usb host breakout is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the Teensy4 esp32 sd usb host breakout?

The Teensy4 esp32 sd usb host breakout measures 22.9 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Teensy4 esp32 sd usb host breakout?

33 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teensy4 esp32 sd usb host breakout design files?

From the blackketter/teensy4_esp32_sd_usb_host_breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Teensy4 esp32 sd usb host breakout design in my own project?

The repository has no license, so all rights stay with blackketter. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Teensy4 esp32 sd usb host breakout without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
