Boardoza BMI088 6-Axis IMU Breakout Board

Boardoza·Boardoza_BMI088_6-Axis_IMU_Breakout_Board·hardware files/B-BMI088-BRK-R1.0.kicad_pcb

Boardoza BMI088 6-Axis IMU Breakout Board layout, top view — open source board by Boardoza

About the Boardoza BMI088 6-Axis IMU Breakout Board

Boardoza BMI088 6-Axis IMU Breakout Board is an open source PCB design by Boardoza, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 40 × 20 mm, with 16 components from 11 distinct parts.

Other key parts include the BMI088, TXS0108EPWR and TLV73333PDBVR. By type, the board carries 6 capacitors, 3 ICs, 3 connectors, 3 resistors and 1 diode.

It belongs with the sensors, robotics & motion and dev boards & breakouts designs in this gallery.

From the project

High-performance 6-axis IMU breakout board with Bosch BMI088 accelerometer and gyroscope supporting SPI and I²C communication.

The Boardoza BMI088 6-Axis IMU Breakout Board is a high-performance motion sensing solution built around the Bosch Sensortec BMI088 inertial measurement unit. It combines a 16-bit three-axis accelerometer, a 16-bit three-axis gyroscope, and an 11-bit internal temperature sensor to provide accurate motion and orientation data even in environments with intense vibration. An onboard 3.3V voltage regulator and bidirectional logic-level shifter enable seamless interfacing with both 3.3V and 5V microcontrollers.

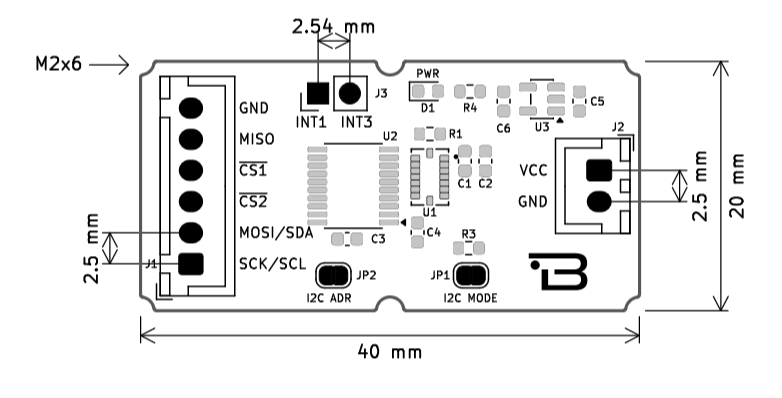

Boardoza BMI088 6-Axis IMU Breakout Board, from the project README
From the project README

Main components on the Boardoza BMI088 6-Axis IMU Breakout Board

BMI088TXS0108EPWRTLV73333PDBVR

Boardoza BMI088 6-Axis IMU Breakout Board bill of materials (BOM)

16 components, 11 distinct parts.

QtyPartRefs
1
BMI088
U1
1
TXS0108EPWR
TXS0108EPW
U2
1
TLV73333PDBVR
TLV73333PDBV
U3
1
L-KLS1-2.50-06-SB
Conn_01x06
J1
1
L-KLS1-2.50-02-SB
Conn_01x02
J2
1
L-KLS1-207-1-02-S
Conn_01x02_Pin
J3
1
LTST-C191KRKT
LED
D1
3
CC0603KRX7R9BB104
100n
C1, C3, C4
3
CL10B105KO8NNNC
1u
C2, C5, C6
2
CRT03J7E1002
10k
R1, R3
1
CRT03J7E1001
1k
R4

Boardoza BMI088 6-Axis IMU Breakout Board design files

The KiCad project lives in the Boardoza/Boardoza_BMI088_6-Axis_IMU_Breakout_Board repository on GitHub; these links point at the commit this page was built from.

Boardoza BMI088 6-Axis IMU Breakout Board: common questions

How big is the Boardoza BMI088 6-Axis IMU Breakout Board?

The Boardoza BMI088 6-Axis IMU Breakout Board measures 40 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Boardoza BMI088 6-Axis IMU Breakout Board?

16 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Boardoza BMI088 6-Axis IMU Breakout Board design files?

From the Boardoza/Boardoza_BMI088_6-Axis_IMU_Breakout_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Boardoza BMI088 6-Axis IMU Breakout Board design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which Boardoza chose for the repository.
