Devboard PCB layout, top view — open source RP2040/RP2350 board by bobis1

About the Devboard PCB

Devboard is an open source RP2040/RP2350 PCB design by bobis1, published on GitHub. It is a 2-layer board measuring 39.3 × 51.7 mm, with 43 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MCP1700X-120XXMB, W25Q128JVS, ER_OLEDM0.91_1X-I2C and TPS63000. By type, the board carries 21 capacitors, 8 resistors, 5 ICs, 4 connectors, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

I made this project because I wanted some experience working with devboards before I start something more complex. I also wanted to make something where a microcontroller was on a devboard already.

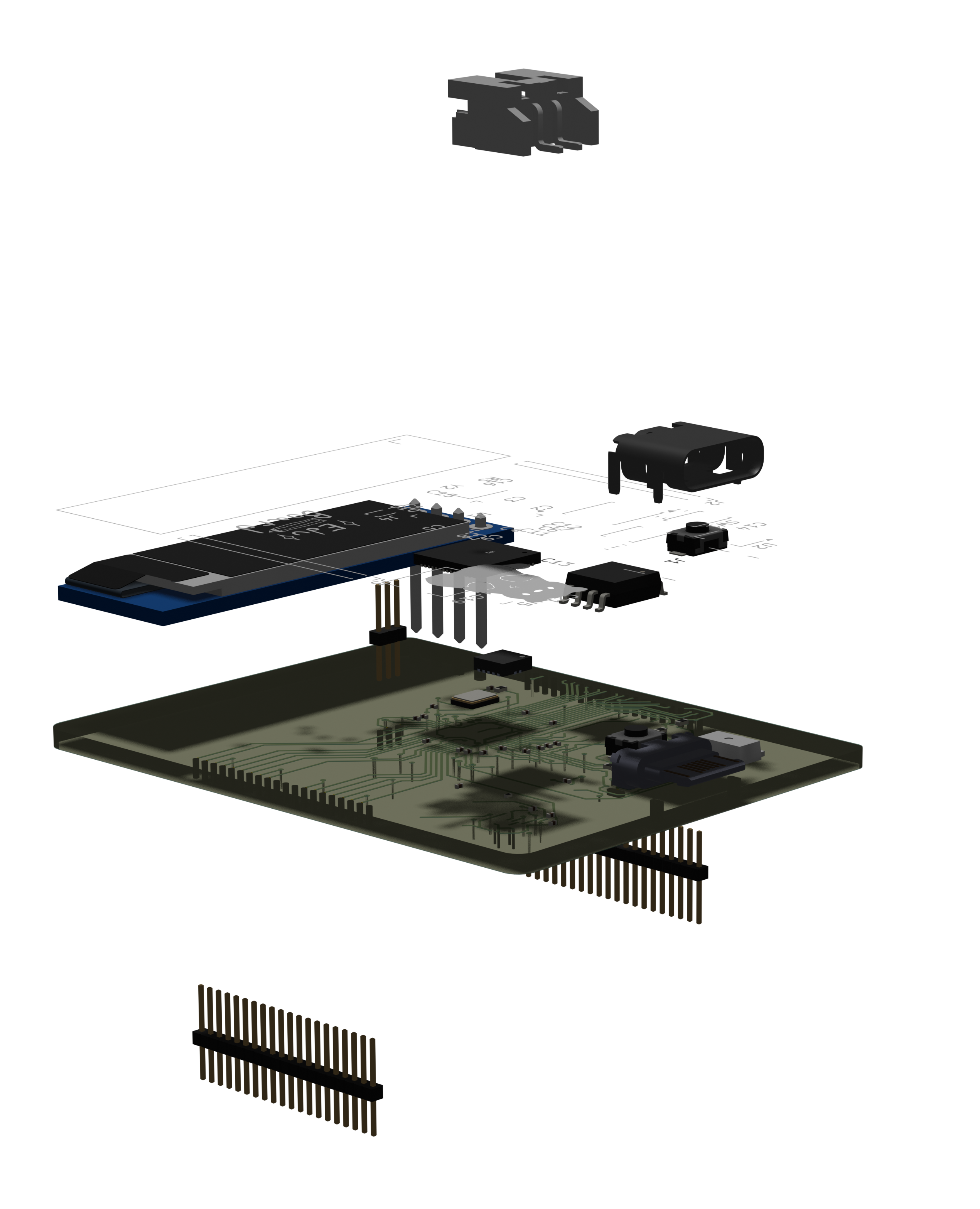

Devboard, from the project README
From the project README

Main components on the Devboard

RP2040MCP1700X-120XXMBW25Q128JVSER_OLEDM0.91_1X-I2CTPS63000

Devboard bill of materials (BOM)

43 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
MCP1700X-120XXMB
MCP1700x-120xxMB
U2
1
W25Q128JVS
U3
1
ER_OLEDM0.91_1X-I2C
ER_OLEDM0.91_1x-I2C
U4
1
TPS63000
U5
1
CRYSTAL_GND24
Crystal_GND24
Y2
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_01X20
Conn_01x20
J2, J3
1
CONN_01X03
Conn_01x03
J4
2
SW_Push
SW1, SW2
1
~
XT1
1
2.2μH
L1
11
0.1UF
0.1uf
C1, C2, C3, C4, C5, C6, C7, C8 +3
1
1UF
1uf
C9
1
1UF
1uf
C12
2
10UF
10uf
C13, C14
2
33UF
33uf
C15, C16
3
10μf
C18, C20, C21
1
0.1μf
C19
2
5.1KΩ
R1, R2
Show 5 more
QtyPartRefs
2
27Ω
R3, R4
1
1K
R5
1
1KΩ
R6
1
10KΩ
R7
1
100Ω
R8

Devboard design files

The KiCad project lives in the bobis1/devboard repository on GitHub; these links point at the commit this page was built from.

Devboard: common questions

What microcontroller does the Devboard use?

The Devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Devboard PCB?

The Devboard measures 39.3 × 51.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devboard?

43 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devboard design files?

From the bobis1/devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devboard design in my own project?

The repository has no license, so all rights stay with bobis1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
