About the SmartPrintCoreH7x PCB
SmartPrintCoreH7x is an open source STM32 PCB design by BoltzRnD, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 170.1 × 96.9 mm, with 530 components from 157 distinct parts.
Its main chip is the STM32H743ZIT6, from the STM32 family. Other key parts include the LMR51450SDRRR, LM61495RPHR, TXS0108ERGYR, CD74HCT365M and SN74LVC8T245RHLR. By type, the board carries 232 resistors, 153 capacitors, 65 connectors, 34 diodes, 22 ICs and 8 transistors.
It belongs with the robotics & motion and power & battery designs in this gallery.
From the project

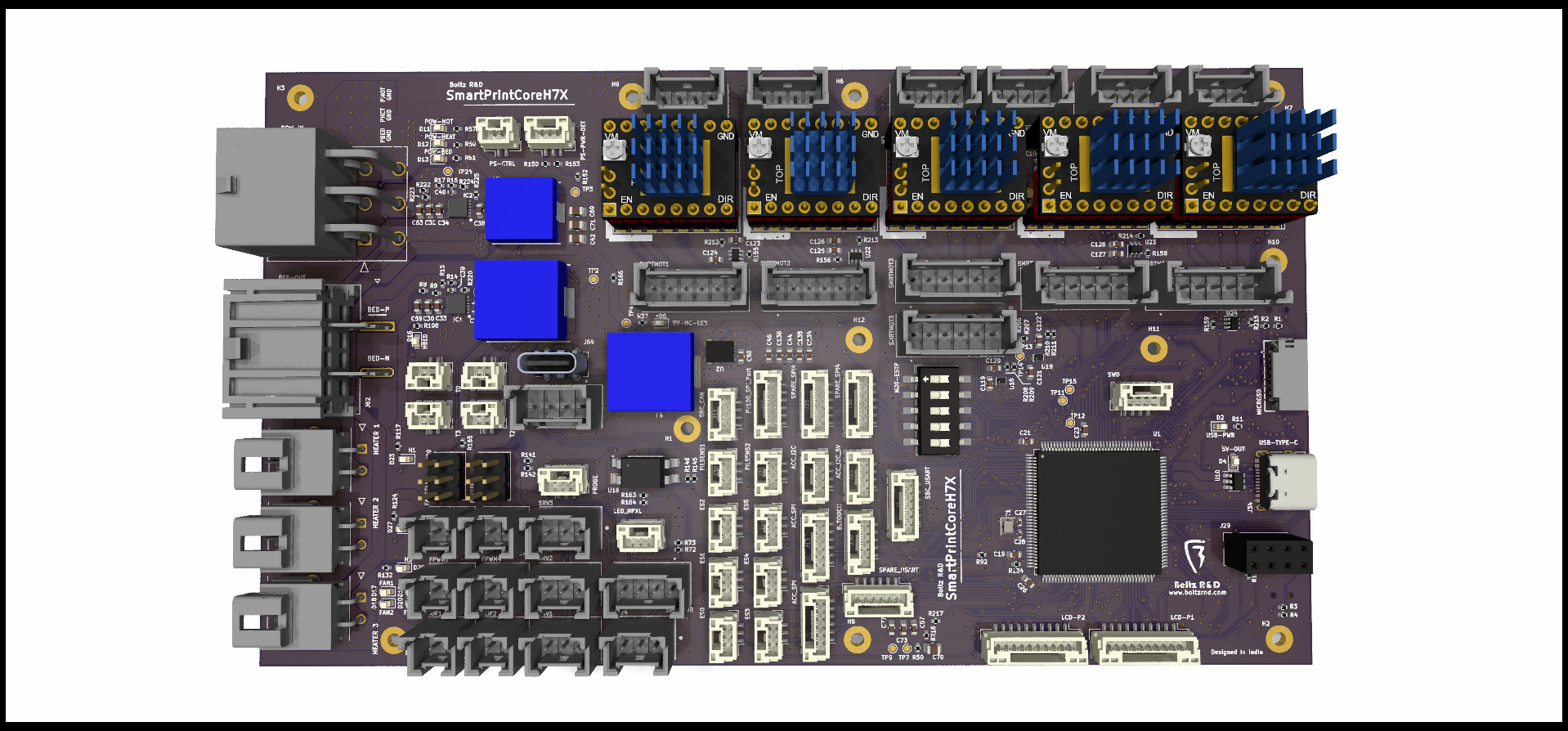

STM32H7 based Robust and Open Source 3D Printer Mainboard
The SmartPrintCoreH7x is an open-source 3D printer mainboard based on the STM32H7 series microcontroller. Copyright (C) 2024 Boltz R&D
This Project is free Hardware: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
Main components on the SmartPrintCoreH7x
SmartPrintCoreH7x bill of materials (BOM)
530 components, 157 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LMR51450SDRRR | SON50P300X300X80-13N-D | IC1, IC2 |
| 1 | STM32H743ZIT6 STM32H723ZGT6 | LQFP-144_20x20mm_P0.5mm | U1 |
| 1 | LM61495RPHR | RPH0016A | U2 |
| 1 | TXS0108ERGYR | IC_TXS0108ERGYR | U3 |
| 1 | CD74HCT365M | SOIC127P600X175-16N | U4 |
| 1 | SN74LVC8T245RHLR | IC_SN74LVC8T245RHLR | U5 |
| 1 | LP5912-3.3DRV | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_ThermalVias | U8 |
| 1 | TJA1051TK-3 | DFN-8-1EP_3x3mm_P0.65mm_EP1.55x2.4mm | U9 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U10 |
| 1 | W25Q128JVS | SOIC-8_5.23x5.23mm_P1.27mm | U11 |
| 1 | CD40109BPWR | TSSOP-16_4.4x5mm_P0.65mm | U12 |
| 1 | TLV62568DRL | SOT-563 | U15 |
| 1 | VO617A-3X007T | SOIC254P1016X440-4N | U16 |
| 1 | L78L10ACUTR L78L10_SOT89 | SOT-89-3 | U17 |
| 2 | TXS0102DQE | X2SON-8_1.4x1mm_P0.35mm | U18, U19 |
| 4 | TXS0101DCK | SOT-363_SC-70-6 | U20, U22, U23, U24 |
| 1 | TPS2116DRLR | SOT-583-8 | U21 |
| 5 | DNP/NC MotorDriverModule | MotorDriverModuleBase | M1, M2, M3, M4, M5 |
| 4 | AO3400A | SOT-23-3 | Q1, Q3, Q5, Q6 |
| 4 | TPH3R704PL | TRANS_TPHR8504PL,L1Q | Q2, Q4, Q7, Q8 |
Show 137 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NX2016SA-25MHZ-EXS00A-CS11321 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | 768250006 POW-IN | CON_768250006_MOL | J1 |
| 1 | BM02B-GHS-TBT T0 | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J2 |
| 1 | BM02B-GHS-TBT T2 | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J3 |
| 1 | BM06B-GHS-TBT SBC_USART | JST_GH_BM06B-GHS-TBT_1x06-1MP_P1.25mm_Vertical | J4 |
| 1 | BM02B-GHS-TBT PS-CTRL | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J5 |
| 1 | 1723103102 H1-Out | 1723103102 | J6 |
| 1 | 53375-0410 SBC_Supply | 53375-0410 | J7 |
| 1 | BM02B-GHS-TBT T1 | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J8 |
| 1 | BM02B-GHS-TBT T3 | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J9 |
| 1 | BM06B-GHS-TBT PT100_SPI_Port | JST_GH_BM06B-GHS-TBT_1x06-1MP_P1.25mm_Vertical | J10 |
| 1 | BM04B-GHS-TBT SBC_CAN | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J11 |
| 1 | BM03B-GHS-TBT PS-PWR-DET | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J12 |
| 2 | BM06B-GHS-TBT ACC_SPI | JST_GH_BM06B-GHS-TBT_1x06-1MP_P1.25mm_Vertical | J13, J61 |
| 1 | 1723103102 H2-Out | 1723103102 | J14 |
| 1 | BM03B-GHS-TBT ES0 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J15 |
| 1 | BM03B-GHS-TBT ES3 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J16 |
| 1 | BM04B-GHS-TBT ACC_I2C | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J17 |
| 1 | BM10B-GHS-TBT LCD-P1 | JST_GH_BM10B-GHS-TBT_1x10-1MP_P1.25mm_Vertical | J18 |
| 1 | BM03B-GHS-TBT LED_NPXL | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J19 |
| 1 | BM05B-GHS-TBT BLTOUCH | JST_GH_BM05B-GHS-TBT_1x05-1MP_P1.25mm_Vertical | J20 |
| 1 | BM03B-GHS-TBT ES1 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J21 |
| 1 | BM03B-GHS-TBT ES4 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J22 |
| 1 | BM04B-GHS-TBT ACC_I2C_5V | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J23 |
| 1 | BM10B-GHS-TBT LCD-P2 | JST_GH_BM10B-GHS-TBT_1x10-1MP_P1.25mm_Vertical | J24 |
| 1 | BM03B-GHS-TBT ES2 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J25 |
| 1 | BM03B-GHS-TBT ES5 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J26 |
| 1 | BM04B-GHS-TBT SWD | JST_GH_BM04B-GHS-TBT_1x04-1MP_P1.25mm_Vertical | J27 |
| 1 | BM06B-GHS-TBT SPARE_USART | JST_GH_BM06B-GHS-TBT_1x06-1MP_P1.25mm_Vertical | J28 |
| 1 | DNP/NC ESP1_PORT | PinSocket_2x04_P2.54mm_Vertical | J29 |
| 1 | BM03B-GHS-TBT FILSENS1 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J30 |
| 1 | BM03B-GHS-TBT FILSENS2 | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J31 |
| 1 | 53375-0210 AOF1 | 53375-0210 | J32 |
| 1 | 53375-0210 AOF2 | 53375-0210 | J33 |
| 1 | USB4105-GF-A USB_C_Receptacle_USB2.0 | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J34 |
| 2 | BM06B-GHS-TBT SPARE_SPI4 | JST_GH_BM06B-GHS-TBT_1x06-1MP_P1.25mm_Vertical | J35, J36 |
| 1 | 53375-0210 FPWM4 | 53375-0210 | J37 |
| 1 | 53375-0210 FPWM3 | 53375-0210 | J38 |
| 1 | 53375-0210 FPWM2 | 53375-0210 | J39 |
| 1 | 53375-0210 FPWM1 | 53375-0210 | J40 |
| 1 | 53375-0310 SRV1 | 53375-0310 | J41 |
| 1 | 53375-0310 SRV2 | 53375-0310 | J42 |
| 1 | 53375-0310 SRV3 | 53375-0310 | J43 |
| 1 | 53375-0310 SRV4 | 53375-0310 | J44 |
| 1 | 53375-0410 SRV-PWR | 53375-0410 | J45 |
| 1 | 473092651 Micro_SD_Card_Det | 473092651 | J46 |
| 1 | 53375-0610 SMRTMOT1 | 53375-0610 | J47 |
| 2 | 53375-0610 SMRTMOT3 | 53375-0610 | J48, J51 |
| 1 | 53375-0610 SMRTMOT2 | 53375-0610 | J49 |
| 1 | 53375-0610 SMRTMOT4 | 53375-0610 | J50 |
| 1 | 53375-0610 SMRTMOT5 | 53375-0610 | J52 |
| 1 | 53375-0410 MOTPORT1 | 53375-0410 | J53 |
| 1 | 53375-0410 MOTPORT4 | 53375-0410 | J54 |
| 1 | 53375-0410 MOTPORT2 | 53375-0410 | J55 |
| 1 | 53375-0410 MOTPORT5 | 53375-0410 | J56 |
| 2 | 53375-0410 MOTPORT3 | 53375-0410 | J57, J58 |
| 1 | PH2-06-UA FANSEL1 | PinSocket_2x03_P2.54mm_Vertical | J59 |
| 1 | PH2-06-UA FANSEL2 | PinSocket_2x03_P2.54mm_Vertical | J60 |
| 1 | 1720430206 BED-OUT | MOLEX_1720430206 | J62 |
| 1 | BM03B-GHS-TBT PROBE | JST_GH_BM03B-GHS-TBT_1x03-1MP_P1.25mm_Vertical | J63 |
| 1 | USB4115-03-C USB_C_Receptacle_PowerOnly_6P | USB_C_Receptacle_GCT_USB4115-03-C | J64 |
| 1 | 1723103102 H3-Out | 1723103102 | J65 |
| 3 | SF-1206HH20M-2 20A SLBLW | Fuse_1206_3216Metric | F1, F2, F3 |
| 1 | TL1014BF160QG BOOT | Panasonic_EVQPUM_EVQPUD | SW1 |
| 1 | TL1014BF160QG RST | Panasonic_EVQPUM_EVQPUD | SW2 |
| 1 | 219-5LPSTR MOT-ESTP | SW_DIP_SPSTx05_Slide_6.7x14.26mm_W8.61mm_P2.54mm_LowProfile | SW3 |
| 1 | CDSOT23-T24CAN | SOT95P230X117-3N | D1 |
| 1 | B1911UYG-20D000114U1930 USB-PWR | LED_0603_1608Metric | D2 |
| 1 | B1911UYG-20D000114U1930 BKP-ON | LED_0603_1608Metric | D3 |
| 1 | B1911PG--20D000514U1930 5V-OUT | LED_0603_1608Metric | D4 |
| 1 | B1911PG--20D000514U1930 5V-HC-LED | LED_0603_1608Metric | D6 |
| 1 | B1911PG--20D000514U1930 FMU-PWR | LED_0603_1608Metric | D7 |
| 3 | SMBJ30C | D_SMB | D8, D9, D10 |
| 1 | B1911PG--20D000514U1930 POW-MOT | LED_0603_1608Metric | D11 |
| 1 | B1911PG--20D000514U1930 POW-HEAT | LED_0603_1608Metric | D12 |
| 1 | B1911PG--20D000514U1930 POW-BED | LED_0603_1608Metric | D13 |
| 10 | SS14 | D_SMA | D14, D15, D21, D22, D24, D25, D26, D28 +2 |
| 1 | B1911UD--20D001014U1930 HBED | LED_0603_1608Metric | D16 |
| 1 | B1911UD--20D001014U1930 FAN1 | LED_0603_1608Metric | D17 |
| 1 | B1911UD--20D001014U1930 FAN2 | LED_0603_1608Metric | D18 |
| 1 | B1911UD--20D001014U1930 FAN3 | LED_0603_1608Metric | D19 |
| 1 | B1911UD--20D001014U1930 FAN4 | LED_0603_1608Metric | D20 |
| 1 | B1911UD--20D001014U1930 H1 | LED_0603_1608Metric | D23 |
| 1 | B1911UD--20D001014U1930 H2 | LED_0603_1608Metric | D27 |
| 1 | B1911UD--20D001014U1930 H3 | LED_0603_1608Metric | D29 |
| 4 | BAV99 | SOT-23 | D30, D31, D32, D33 |
| 1 | SRP1265A-150M 15uH | INDPM135125X650N | L2 |
| 1 | SRP1038CC-6R8M 6.8uH | INDPM110100X400N | L3 |
| 1 | SRP1265C-3R3M 3.3uH | IND_SRP1265C-3R3M | L4 |
| 1 | DFE252012F-1R0M=P2 1uH | L_1008_2520Metric | L5 |
| 78 | CL10B104JB8NNNC 100nF | C_0603_1608Metric | C1, C3, C5, C10, C11, C12, C13, C15 +70 |
| 10 | GRM188R61E225KA12J 2.2uF | C_0603_1608Metric | C2, C7, C8, C9, C14, C84, C93, C100 +2 |
| 7 | CL10A105KB8NNNC 1uF | C_0603_1608Metric | C4, C6, C32, C36, C50, C57, C116 |
| 2 | GCM1555C1H6R0FA16D 6pF 1% | C_0402_1005Metric | C27, C28 |
| 7 | GRM21BR61H106KE43L 10uF 50V | C_0805_2012Metric | C30, C31, C44, C59, C63, C64, C134 |
| 2 | CC0402CRNPO9BN1R0 1pF 50V | C_0402_1005Metric | C39, C40 |
| 5 | C3216X5R1V226M160AC 22uF 35V | C_1206_3216Metric | C41, C60, C61, C66, C114 |
| 5 | GRM21BR61A476ME15L 47uF 10V | C_0805_2012Metric | C42, C69, C71, C117, C118 |
| 3 | GRM32ER61A107ME20L 100uF 10V | C_1210_3225Metric | C53, C54, C55 |
| 16 | CL31A106KBHNNNE 10uF 50V | C_1206_3216Metric | C56, C139, C140, C141, C142, C143, C144, C145 +8 |
| 5 | CL21A106KOQNNNE 10uF 16V | C_0805_2012Metric | C67, C68, C70, C97, C112 |
| 3 | CL10A105KB8NNNC 1uF 50V | C_0603_1608Metric | C86, C135, C136 |
| 5 | EEE-1VA101XP 100uF 35V | CP_Elec_6.3x7.7 | C105, C106, C107, C108, C109 |
| 1 | C1608X7S1A475K080AC 4.7uF | C_0603_1608Metric | C113 |
| 3 | CL32B225KCJSNNE 2.2uF 100V | C_1210_3225Metric | C131, C132, C133 |
| 1 | GRM1555C1H120GA01D 12pF | C_0402_1005Metric | C138 |
| 2 | CRGCQ0402J220R 220R | R_0402_1005Metric | R1, R3 |
| 50 | CRCW040210K0FKEDC 10K | R_0402_1005Metric | R2, R4, R6, R7, R45, R46, R47, R50 +42 |
| 32 | CRCW04020000Z0ED 0E | R_0402_1005Metric | R5, R72, R134, R142, R161, R163, R165, R167 +24 |
| 1 | CRCW0402237KFKED 237K 1% | R_0402_1005Metric | R8 |
| 2 | CRCW0402200KFKEDC 200K 1% | R_0402_1005Metric | R9, R223 |
| 39 | RC0402FR-07120RL 120E | R_0402_1005Metric | R10, R18, R19, R20, R21, R26, R27, R28 +31 |
| 5 | CRGCQ0402J330R 330E | R_0402_1005Metric | R11, R12, R13, R37, R48 |
| 13 | CRGCQ0402J100K 100K | R_0402_1005Metric | R14, R16, R32, R93, R94, R95, R96, R97 +5 |
| 1 | CRCW04027K15FKED 7.15K | R_0402_1005Metric | R15 |
| 1 | CRCW040219K1FKEDC 19.1K | R_0402_1005Metric | R17 |
| 15 | CRGCQ0402J4K7 4.7K | R_0402_1005Metric | R22, R23, R24, R25, R57, R60, R61, R108 +7 |
| 2 | CRCW0402100KFKED 100K 1% | R_0402_1005Metric | R30, R35 |
| 1 | CRCW040216K2FKEDC 16.2K 1% | R_0402_1005Metric | R31 |
| 1 | CRCW04024K99FKEDC 4.99K | R_0402_1005Metric | R33 |
| 2 | RC0402FR-135K1L 5.1K | R_0402_1005Metric | R34, R89 |
| 1 | CRCW040224K9FKEDC 24.9K 1% | R_0402_1005Metric | R36 |
| 26 | DNP/NC 10K/NC | R_0402_1005Metric | R43, R141, R160, R162, R164, R166, R168, R170 +18 |
| 1 | CRGCQ0402J2K2 2.2K | R_0402_1005Metric | R44 |
| 8 | CRCW04022K37FKED 2.37K 1% | R_0402_1005Metric | R51, R52, R58, R59, R63, R137, R138, R140 |
| 4 | RT0402BRE074K7L 4.7K 0.1% | R_0402_1005Metric | R53, R54, R62, R139 |
| 1 | DNP/NC 100K/NC | R_0402_1005Metric | R73 |
| 2 | DNP/NC 5.1K/NC | R_0402_1005Metric | R90, R226 |
| 2 | CRGCQ0402J1K0 1K | R_0402_1005Metric | R91, R143 |
| 8 | RC0402FR-1312KL 12K | R_0402_1005Metric | R105, R107, R114, R116, R119, R121, R123, R130 |
| 1 | CRCW0402453KFKEDC 453K | R_0402_1005Metric | R135 |
| 1 | DNP/NC 0E/NC | R_0402_1005Metric | R152 |
| 1 | RC0402FR-1015KL 15K 1% | R_0402_1005Metric | R153 |
| 1 | ERJ-2RKF4642X 46.4K | R_0402_1005Metric | R220 |
| 1 | CRCW04021M21FKED 1.21M 1% | R_0402_1005Metric | R222 |
| 1 | CRCW040237K4FKED 37.4K | R_0402_1005Metric | R225 |
| 6 | YC248-JR-07100RL 100E | R_Array_Convex_8x0602 | RN1, RN2, RN3, RN4, RN5, RN6 |
SmartPrintCoreH7x design files
The KiCad project lives in the BoltzRnD/SmartPrintCoreH7x repository on GitHub; these links point at the commit this page was built from.
SmartPrintCoreH7x: common questions
What microcontroller does the SmartPrintCoreH7x use?
The SmartPrintCoreH7x is built around the STM32H743ZIT6, from the STM32 family.
How big is the SmartPrintCoreH7x PCB?
The SmartPrintCoreH7x measures 170.1 × 96.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SmartPrintCoreH7x?
530 components, from 157 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SmartPrintCoreH7x design files?
From the BoltzRnD/SmartPrintCoreH7x repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SmartPrintCoreH7x design in my own project?
Yes, under the terms of its GPL-3.0 license, which BoltzRnD chose for the repository.
Can I test firmware for the SmartPrintCoreH7x without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
Similar boards
STM32AxxSolder
AxxAxx
39 × 82.5 mm122 parts2LGPL-3.01.7k
STM32AIOC
skuep
21 × 31.5 mm47 parts2LMIT1.4k
STM32Ferris
pierrechevalier83
208.8 × 86.8 mm102 parts2LSHL-2.11.3k
STM32Module 16S
stuartpittaway
71.1 × 89.6 mm113 parts4LCC-BY-NC-4.01.1k
STM32Djinn
tzarc
192.3 × 150.5 mm216 parts2LCERN-OHL-S-2.0988
STM32Ghoul
228.6 × 79.4 mm163 parts2LCERN-OHL-S-2.0988
