ElectronicBadge PCB layout, top view — open source board by bostang

About the ElectronicBadge PCB

ElectronicBadge is an open source PCB design by bostang, published on GitHub. It is a 2-layer board measuring 31.9 × 43.9 mm, with 6 components from 6 distinct parts.

By type, the board carries 2 resistors, 1 transistor, 1 battery holder, 1 switch and 1 diode.

From the project

My repository for documenting all PCB Projects I have done

Lencana Elektronik yang berisi sebuah rangkaian sederhana : transistor sebagai switch sebagai tanda apresiasi bagi praktikan EL2205 Praktikum Elektronika 2024.

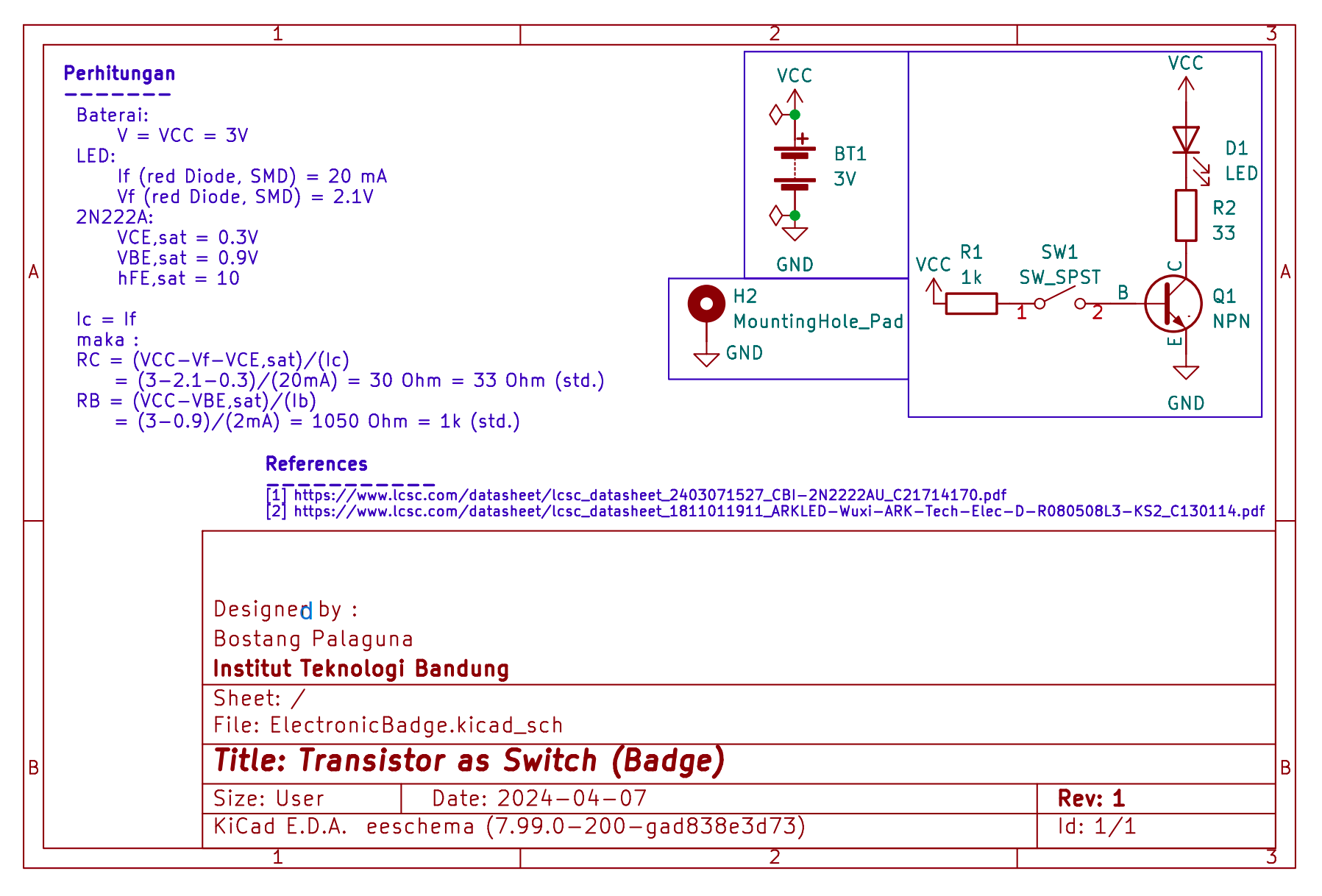

ElectronicBadge, from the project README
From the project README

ElectronicBadge bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NPN
Q1
1
C2988620
3V
BT1
1
SW_SPST
SW1
1
LED
D1
1
1k
R1
1
120
33
R2

ElectronicBadge design files

The KiCad project lives in the bostang/PCBs repository on GitHub; these links point at the commit this page was built from.

ElectronicBadge: common questions

How big is the ElectronicBadge PCB?

The ElectronicBadge measures 31.9 × 43.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ElectronicBadge?

6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ElectronicBadge design files?

From the bostang/PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ElectronicBadge design in my own project?

The repository has no license, so all rights stay with bostang. Use it as a reference, and ask the author before reusing the design.
