Smart Irrigation System

bostang·PCBs·Smart_Irrigation_System/Smart_Irrigation_System.kicad_pcb

Smart Irrigation System PCB layout, top view — open source ESP32 board by bostang

About the Smart Irrigation System PCB

Smart Irrigation System is an open source ESP32 PCB design by bostang, published on GitHub. It is a 2-layer board measuring 67.8 × 164.1 mm, with 22 components from 18 distinct parts.

Its main chip is the C2797196, from the ESP32 family. Other key parts include the 40106 and C2939353. By type, the board carries 6 resistors, 4 ICs, 4 switches, 3 connectors, 3 capacitors and 1 diode.

From the project

My repository for documenting all PCB Projects I have done

PCB Tugas Akhir Jefferson Grizzlie tentang smart irrigation system (membantu kawan).

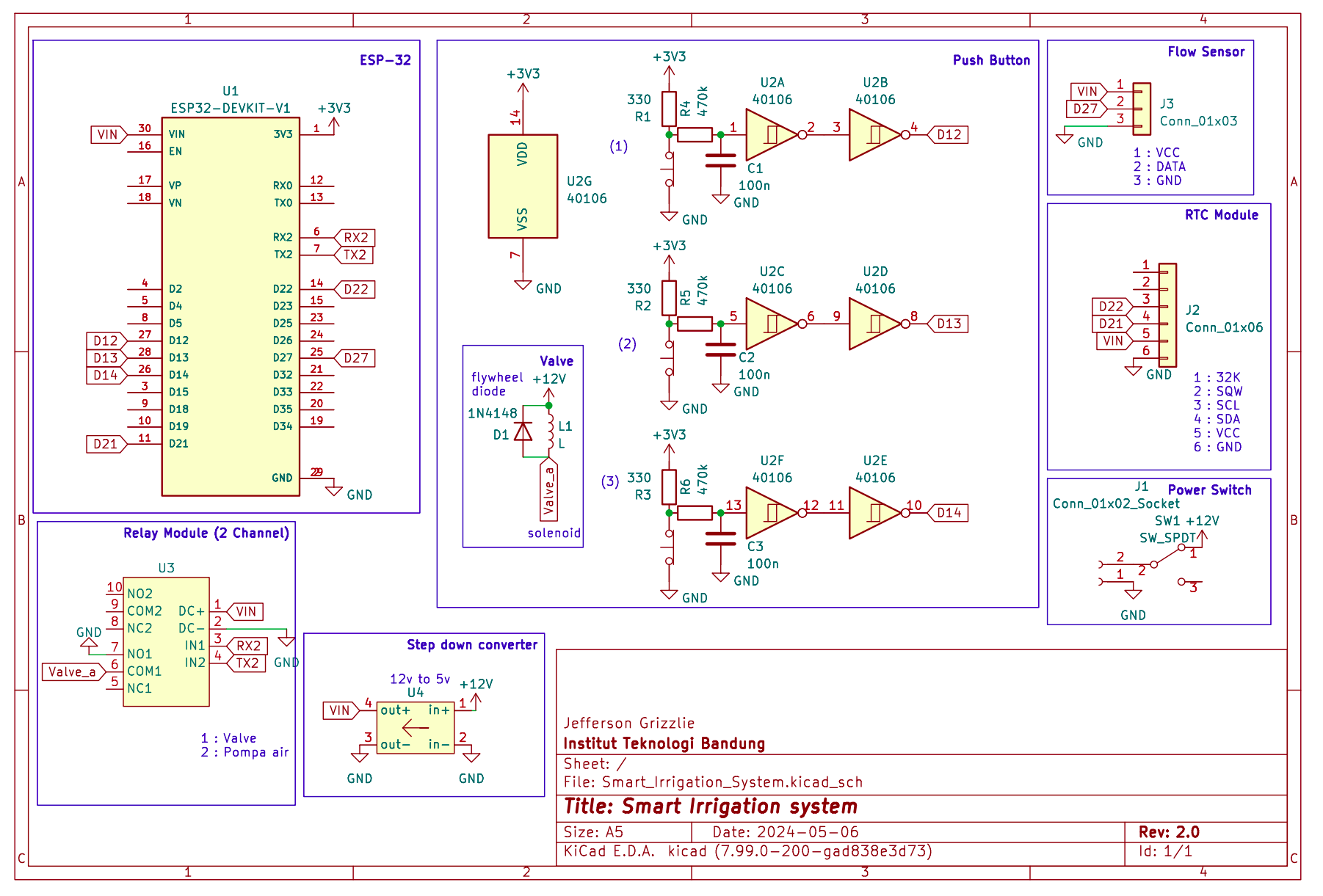

Smart Irrigation System, from the project README
From the project README

Main components on the Smart Irrigation System

C279719640106C2939353

Smart Irrigation System bill of materials (BOM)

22 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2797196
ESP32-DEVKIT-V1
U1
1
40106
U2
1
~
U3
1
C2939353
~
U4
1
CONN_01X40_SOCKET
Conn_01x02_Socket
J1
1
CONN_01X40_SOCKET
Conn_01x06
J2
1
CONN_01X03_SOCKET
Conn_01x03
J3
1
SW_SPDT
SW1
3
SW_Push_Open
SW2, SW3, SW4
1
1N4148
D1
1
L
L1
2
100N
100n
C1, C3
1
10U
100n
C2
1
330
R1
1
120
330
R2
1
470K
330
R3
2
470k
R4, R5
1
330
470k
R6

Smart Irrigation System design files

The KiCad project lives in the bostang/PCBs repository on GitHub; these links point at the commit this page was built from.

Smart Irrigation System: common questions

What microcontroller does the Smart Irrigation System use?

The Smart Irrigation System is built around the C2797196, from the ESP32 family.

How big is the Smart Irrigation System PCB?

The Smart Irrigation System measures 67.8 × 164.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smart Irrigation System?

22 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Smart Irrigation System design files?

From the bostang/PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Smart Irrigation System design in my own project?

The repository has no license, so all rights stay with bostang. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Smart Irrigation System without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
