Spycam
About the Spycam PCB
Spycam is an open source ESP32 PCB design by bostang, published on GitHub. It is a 2-layer board measuring 38.6 × 70.6 mm, with 8 components from 7 distinct parts.
Its main chip is the C2797196, from the ESP32 family. By type, the board carries 2 ICs, 2 connectors, 2 switches, 1 battery holder and 1 resistor.
From the project
My repository for documenting all PCB Projects I have done
Sebuah kamera pengintai berbasis ESP-32 camera yang berbentuk sebuah kalung.
Main components on the Spycam
Spycam bill of materials (BOM)
8 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2797196 ESP32-CAM | ESP32-CAM | U1 |
| 1 | ~ | MT3608_module_v2 | U2 |
| 2 | CONN_01X40_SOCKET Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J1, J2 |
| 1 | C2988620 Battery | BatteryHolder_Keystone_103_1x20mm | BT1 |
| 1 | SW_SPDT | SW_E-Switch_EG1224_SPDT_Angled | SW1 |
| 1 | SW_Push | SW_PUSH-12mm | SW2 |
| 1 | 10k | R_1206_3216Metric | R1 |
Spycam design files
The KiCad project lives in the bostang/PCBs repository on GitHub; these links point at the commit this page was built from.
- LayoutSpyCam/spycam.kicad_pcb

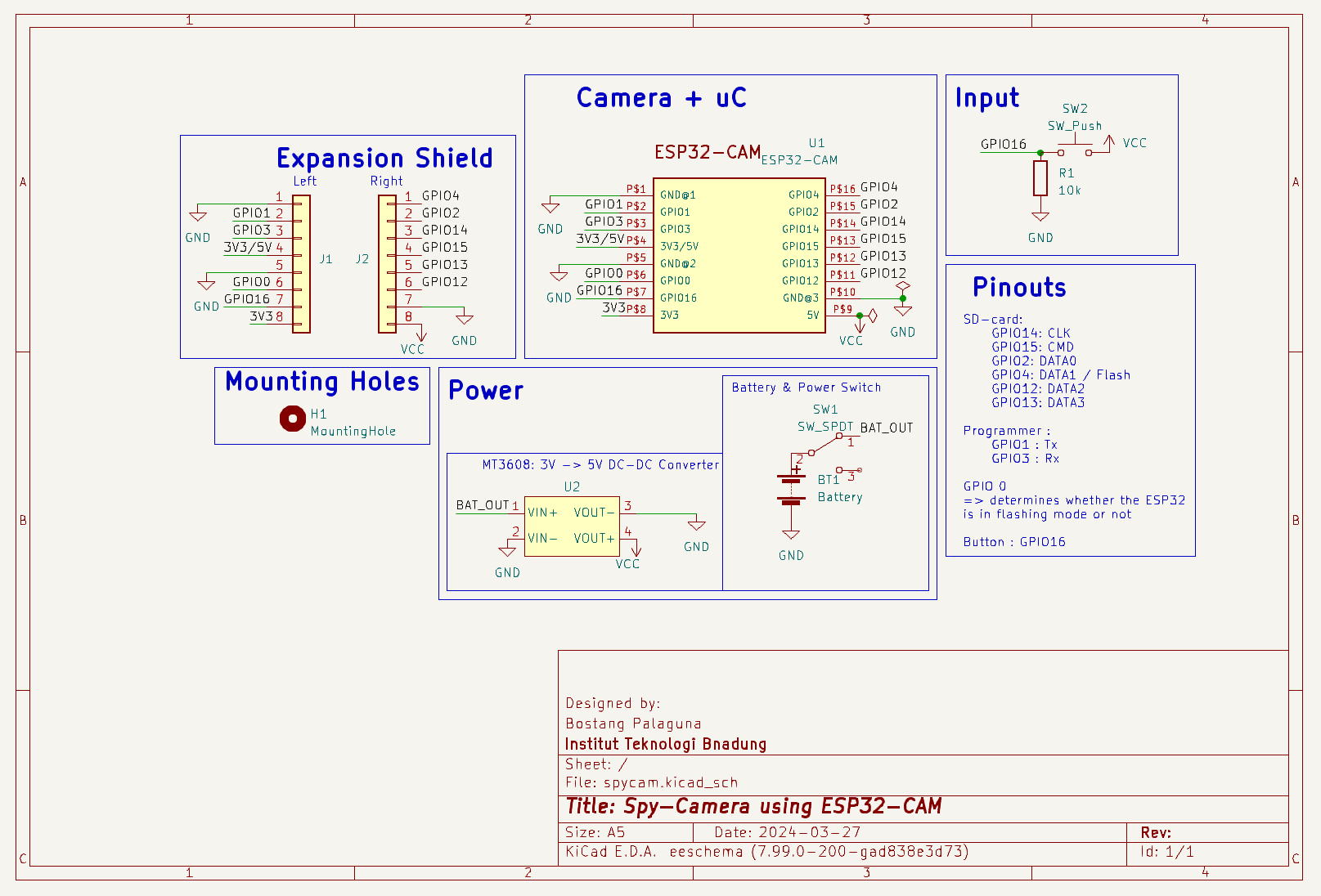

- SchematicSpyCam/spycam.kicad_sch
- BOMWMS/WMS_v4/WMS.csv
Spycam: common questions
What microcontroller does the Spycam use?
The Spycam is built around the C2797196, from the ESP32 family.
How big is the Spycam PCB?
The Spycam measures 38.6 × 70.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Spycam?
8 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Spycam design files?
From the bostang/PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Spycam design in my own project?
The repository has no license, so all rights stay with bostang. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Spycam without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
