RangkaianOpAmp
About the RangkaianOpAmp PCB
RangkaianOpAmp is an open source PCB design by bostang, published on GitHub. It is a 2-layer board measuring 161.3 × 97 mm, with 49 components from 25 distinct parts.
Other key parts include the C2797196, LM741, C2939353 and 40106. By type, the board carries 23 resistors, 14 connectors, 7 ICs, 3 capacitors and 2 jumpers.

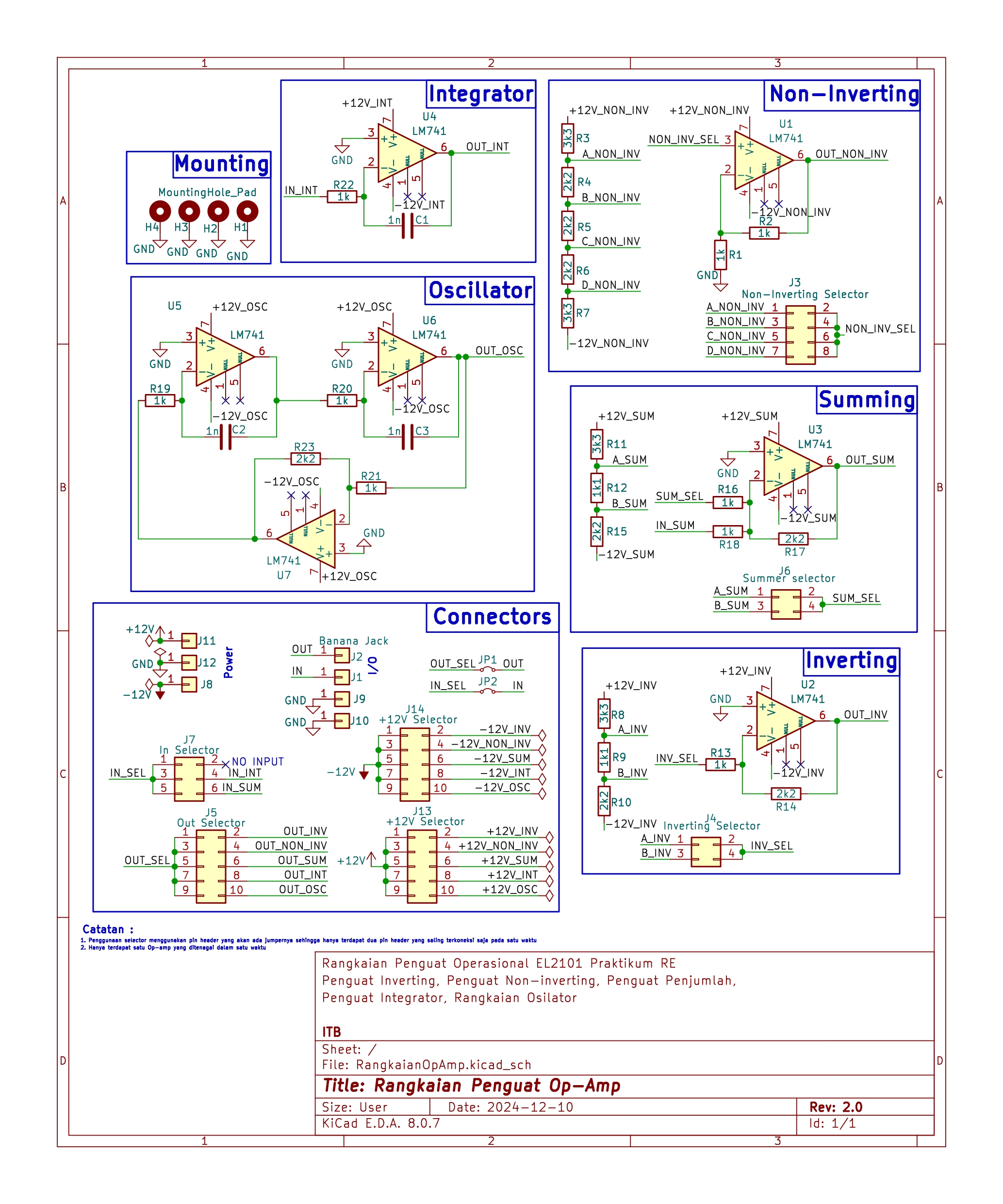

From the project
My repository for documenting all PCB Projects I have done
Kit Praktikum EL2101 Praktikum Rangkaian Elektrik Modul 3. (v2)
Main components on the RangkaianOpAmp
RangkaianOpAmp bill of materials (BOM)
49 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2797196 LM741 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 4 | LM741 | SOIC-8_3.9x4.9mm_P1.27mm | U2, U3, U5, U6 |
| 1 | C2939353 LM741 | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | 40106 LM741 | SOIC-8_3.9x4.9mm_P1.27mm | U7 |
| 2 | CONN_01X40_SOCKET Banana Jack | Banana_Jack_1Pin | J1, J2 |
| 1 | CONN_01X03_SOCKET Non-Inverting Selector | PinHeader_2x04_P2.54mm_Vertical | J3 |
| 1 | Inverting Selector | PinHeader_2x02_P2.54mm_Vertical | J4 |
| 1 | Out Selector | PinHeader_2x05_P2.54mm_Vertical | J5 |
| 1 | Summer selector | PinHeader_2x02_P2.54mm_Vertical | J6 |
| 1 | In Selector | PinHeader_2x03_P2.54mm_Vertical | J7 |
| 5 | Banana Jack | Banana_Jack_1Pin | J8, J9, J10, J11, J12 |
| 2 | +12V Selector | PinHeader_2x05_P2.54mm_Vertical | J13, J14 |
| 2 | Jumper_2_Small_Bridged | SolderJumper-2_P1.3mm_Bridged2Bar_RoundedPad1.0x1.5mm | JP1, JP2 |
| 2 | 100N 1n | C_0805_2012Metric | C1, C3 |
| 1 | 10U 1n | C_0805_2012Metric | C2 |
| 8 | 1k | R_0805_2012Metric | R1, R13, R16, R18, R19, R20, R21, R22 |
| 1 | 120 1k | R_0805_2012Metric | R2 |
| 2 | 470K 3k3 | R_0805_2012Metric | R3, R8 |
| 6 | 2k2 | R_0805_2012Metric | R4, R5, R14, R15, R17, R23 |
| 1 | 330 2k2 | R_0805_2012Metric | R6 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 330 3k3 | R_0805_2012Metric | R7 |
| 1 | 330 1k1 | R_0805_2012Metric | R9 |
| 1 | 470K 2k2 | R_0805_2012Metric | R10 |
| 1 | 3k3 | R_0805_2012Metric | R11 |
| 1 | 1k1 | R_0805_2012Metric | R12 |
RangkaianOpAmp design files
The KiCad project lives in the bostang/PCBs repository on GitHub; these links point at the commit this page was built from.
RangkaianOpAmp: common questions
How big is the RangkaianOpAmp PCB?
The RangkaianOpAmp measures 161.3 × 97 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RangkaianOpAmp?
49 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RangkaianOpAmp design files?
From the bostang/PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RangkaianOpAmp design in my own project?
The repository has no license, so all rights stay with bostang. Use it as a reference, and ask the author before reusing the design.
