About the EmbeddedSystemKit PCB
EmbeddedSystemKit is an open source ESP32 PCB design by bostang, published on GitHub. It is a 4-layer board measuring 123.3 × 61 mm, with 73 components from 46 distinct parts.
Its main chip is the C2797196, from the ESP32 family. Other key parts include the AMS1117-3.3, CP2102N-A01-GQFN28, C2939353 and LCD-016N002L. By type, the board carries 22 resistors, 15 jumpers, 9 diodes, 9 capacitors, 7 switches and 5 ICs.
From the project
My repository for documenting all PCB Projects I have done

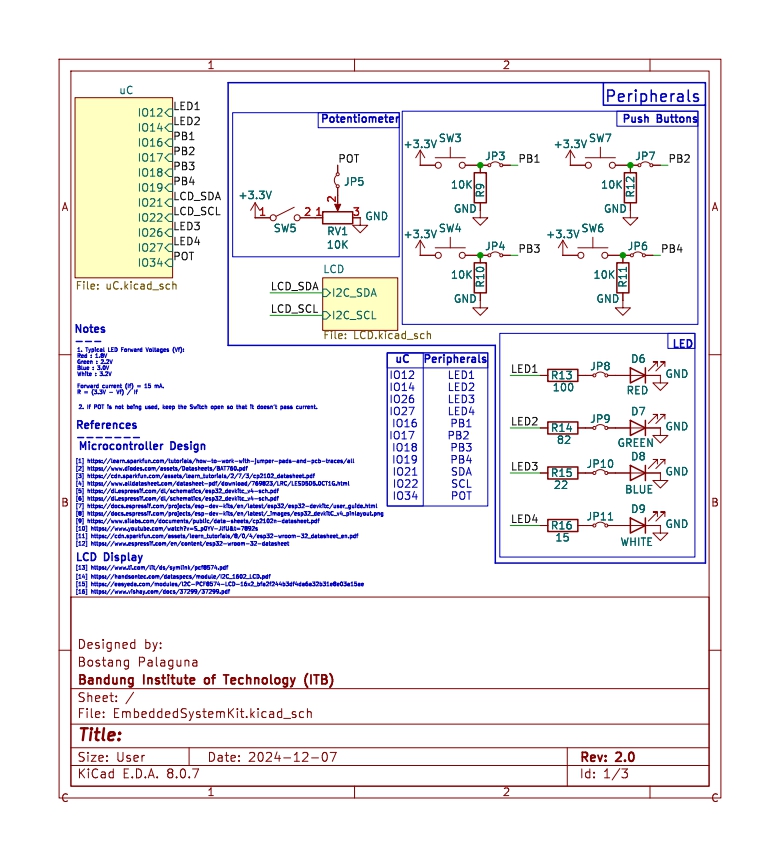

Main components on the EmbeddedSystemKit
EmbeddedSystemKit bill of materials (BOM)
73 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2797196 ESP32-WROOM-32 | ESP32-WROOM-32 | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | CP2102N-A01-GQFN28 | QFN-28-1EP_5x5mm_P0.5mm_EP3.35x3.35mm | U3 |
| 1 | C2939353 PCF8574 | SOIC-16W_7.5x10.3mm_P1.27mm | U4 |
| 1 | LCD-016N002L | LCD-016N002L | U5 |
| 2 | SS8050-G | SOT-23 | Q1, Q2 |
| 1 | 2N3904 | SOT-23 | Q3 |
| 1 | USB_C_Plug_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | P1 |
| 2 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP1, JP2 |
| 9 | Jumper_2_Small_Bridged | R_0805_2012Metric | JP3, JP4, JP5, JP6, JP7, JP8, JP9, JP10 +1 |
| 3 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP12, JP13, JP14 |
| 1 | Jumper_2_Bridged | PinHeader_1x02_P2.54mm_Vertical | JP15 |
| 1 | 10K | Potentiometer_Bourns_PTV09A-1_Single_Vertical | RV1 |
| 1 | 5K | Potentiometer_Bourns_3314G_Vertical | RV2 |
| 1 | Boot | SW_SPST_B3U-1000P | SW1 |
| 1 | Enable | SW_SPST_B3U-1000P | SW2 |
| 4 | SW_Push | SW_PUSH_6mm_H8mm | SW3, SW4, SW6, SW7 |
| 1 | SW_SPST | SW_DIP_SPSTx01_Slide_6.7x4.1mm_W7.62mm_P2.54mm_LowProfile | SW5 |
| 1 | RED | LED_0805_2012Metric | D1 |
| 1 | BAT760-7 | D_SOD-323 | D2 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 1N4148W LESD5D5.0CT1G | D_SOD-523 | D3, D4, D5 |
| 1 | 1N4148W RED | LED_0805_2012Metric | D6 |
| 1 | GREEN | LED_0805_2012Metric | D7 |
| 1 | BLUE | LED_0805_2012Metric | D8 |
| 1 | WHITE | LED_0805_2012Metric | D9 |
| 2 | 100N 22u | C_0805_2012Metric | C1, C3 |
| 1 | 10U 22u | C_0805_2012Metric | C2 |
| 3 | 10U 0.1u | C_0805_2012Metric | C4, C6, C7 |
| 1 | 100N 0.1u | C_0805_2012Metric | C5 |
| 1 | 100N 0.1u | C_0402_1005Metric | C8 |
| 1 | 100N 4.7u | C_0402_1005Metric | C9 |
| 1 | 2K | R_0805_2012Metric | R1 |
| 1 | 120 10K | R_0805_2012Metric | R2 |
| 2 | 470K 10K | R_0402_1005Metric | R3, R8 |
| 1 | 10K | R_0402_1005Metric | R4 |
| 1 | 22K1 | R_0402_1005Metric | R5 |
| 1 | 330 47K5 | R_0402_1005Metric | R6 |
| 1 | 330 2K | R_0402_1005Metric | R7 |
| 1 | 330 10K | R_0805_2012Metric | R9 |
| 1 | 470K 10K | R_0805_2012Metric | R10 |
| 5 | 10K | R_0805_2012Metric | R11, R12, R18, R20, R21 |
| 1 | 100 | R_0805_2012Metric | R13 |
| 1 | 82 | R_0805_2012Metric | R14 |
| 1 | 22 | R_0805_2012Metric | R15 |
| 1 | 15 | R_0805_2012Metric | R16 |
| 3 | 4K7 | R_0805_2012Metric | R17, R19, R22 |
EmbeddedSystemKit design files
The KiCad project lives in the bostang/PCBs repository on GitHub; these links point at the commit this page was built from.
EmbeddedSystemKit: common questions
What microcontroller does the EmbeddedSystemKit use?
The EmbeddedSystemKit is built around the C2797196, from the ESP32 family.
How big is the EmbeddedSystemKit PCB?
The EmbeddedSystemKit measures 123.3 × 61 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the EmbeddedSystemKit?
73 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EmbeddedSystemKit design files?
From the bostang/PCBs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EmbeddedSystemKit design in my own project?
The repository has no license, so all rights stay with bostang. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the EmbeddedSystemKit without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
