Esp32-drone fcu

burakbasdere·esp32-drone-fcu

Esp32-drone fcu PCB layout, top view — open source ESP32 board by burakbasdere

About the Esp32-drone fcu PCB

Esp32-drone fcu is an open source ESP32 PCB design by burakbasdere, published on GitHub. It is a 4-layer board measuring 36 × 36 mm, with 66 components from 40 distinct parts.

Its main chip is the ESP32-S3-MINI-1-N8, from the ESP32 family. Other key parts include the ICM-42688-P, TPS63060DSCR and USBLC6-2SC6. By type, the board carries 28 resistors, 17 capacitors, 8 connectors, 4 ICs, 4 diodes and 2 switches.

It belongs with the robotics & motion, power & battery and usb & debug tools designs in this gallery.

From the project

Küçük, 1–2S LiPo beslemeli ve harici dört kanallı fırçasız ESC kullanan quadcopter için Rev A mühendislik prototipi. KiCad 9 projesini micro-fcu.kicadpro` ile açın. Bu kart için uçuş testi yapılmadı; dosyalar bir donanım prototipidir.

Küçük, 1–2S LiPo beslemeli ve harici dört kanallı fırçasız ESC kullanan quadcopter için Rev A mühendislik prototipi. KiCad 9 projesini micro-fcu.kicadpro` ile açın. Bu kart için uçuş testi yapılmadı; dosyalar bir donanım prototipidir.

Son dosya kontrolleri: ERC 0 ihlal; PCB DRC 0 ihlal, 0 açık bağlantı, 0 footprint hatası. 227 amaçlanan şema bağlantısı KiCad'in dışa aktardığı netlist ile eşleşiyor. Raporlar reports altındadır. Gerber ve delik çıktıları fabrication altındadır; bu paket fiziksel doğrulaması yapılmamış prototip içindir.

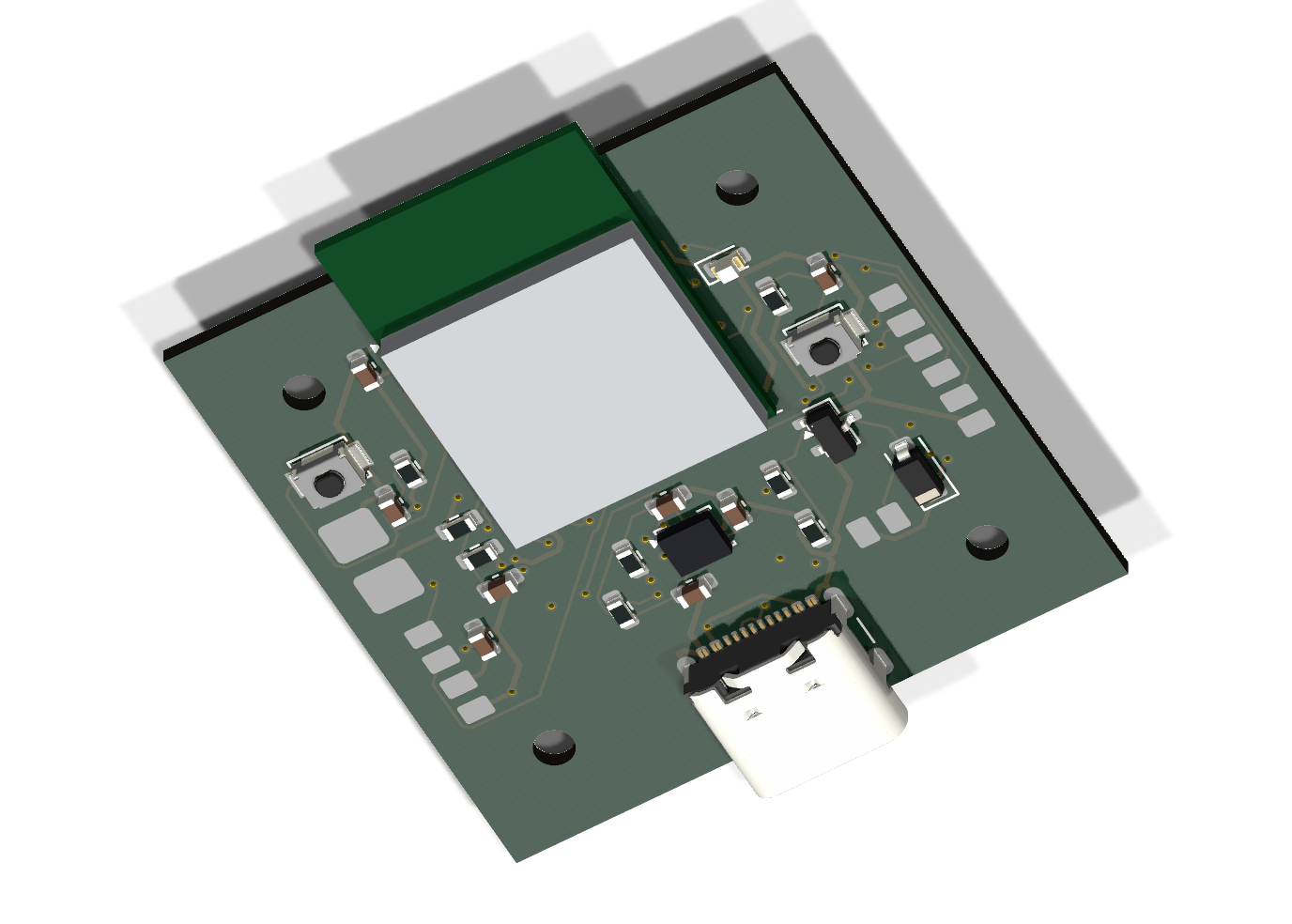

Esp32-drone fcu, from the project README
From the project README

Main components on the Esp32-drone fcu

ESP32-S3-MINI-1-N8ICM-42688-PTPS63060DSCRUSBLC6-2SC6

Esp32-drone fcu bill of materials (BOM)

66 components, 40 distinct parts.

QtyPartRefs
1
ESP32-S3-MINI-1-N8
U1
1
ICM-42688-P
U2
1
TPS63060DSCR
U3
1
USBLC6-2SC6
U4
1
2N7002
Q1
1
BAT 1-2S
J1
1
USB-C USB4105-GF-A
J2
1
ESC SIGNALS
J3
1
RC 3V3 UART
J4
1
AUX UART
J5
1
I2C 3V3
J6
1
UART DEBUG
J7
1
BUZZER 3V3 <=30mA
J8
1
500mA hold
F1
1
BOOT
SW1
1
RESET
SW2
1
GREEN
D1
2
SS14
D2, D3
1
BAT54W
D4
1
1.5uH XFL4020-152ME
L1
Show 20 more
QtyPartRefs
2
1u / 10V
C1, C12
2
10u / 10V
C2, C15
5
100n / 16V
C3, C5, C11, C13, C14
1
2.2u / 10V
C4
1
10n / 16V
C6
2
22u / 16V
C7, C16
1
100n / 25V
C8
3
22u / 10V
C9, C10, C17
5
10k
R1, R2, R5, R23, R24
1
1k
R3
1
10R
R4
1
560k 0.1%
R6
1
100k 0.1%
R7
6
100k
R8, R17, R18, R19, R20, R28
2
5.1k 1%
R9, R10
2
22R
R11, R12
5
100R
R13, R14, R15, R16, R27
1
100k 1%
R21
1
33k 1%
R22
2
4.7k
R25, R26

Esp32-drone fcu design files

The KiCad project lives in the burakbasdere/esp32-drone-fcu repository on GitHub; these links point at the commit this page was built from.

Esp32-drone fcu: common questions

What microcontroller does the Esp32-drone fcu use?

The Esp32-drone fcu is built around the ESP32-S3-MINI-1-N8, from the ESP32 family.

How big is the Esp32-drone fcu PCB?

The Esp32-drone fcu measures 36 × 36 mm, has 4 copper layers and is 1 mm thick.

How many components are on the Esp32-drone fcu?

66 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-drone fcu design files?

From the burakbasdere/esp32-drone-fcu repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-drone fcu design in my own project?

The repository has no license, so all rights stay with burakbasdere. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-drone fcu without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
