ESPlant PCB layout, top view — open source ESP8266 board by CCHS-Melbourne

About the ESPlant PCB

ESPlant is an open source ESP8266 PCB design by CCHS-Melbourne, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 97 × 77.5 mm, with 75 components from 46 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the STM32F042F, CN3063, MCP6002, BME280 and ADXL345. By type, the board carries 22 resistors, 13 connectors, 12 capacitors, 6 ICs, 4 transistors and 4 switches.

It belongs with the power & battery, sensors and iot & wireless designs in this gallery.

From the project

Environmental Sensor Plant - solar WiFi gardening/meteorological sensor using ESP8266

ESPlant - Environment Sensor Plant =============

Welcome to the linux.conf.au Open Hardware Project. You can see information about this and other MiniConfs at http://www.openhardwareconf.org/wiki/Main_Page

The ESPlant kit is designed to provide an open source platform to transmit environmental data to a central source using the power of wifi.

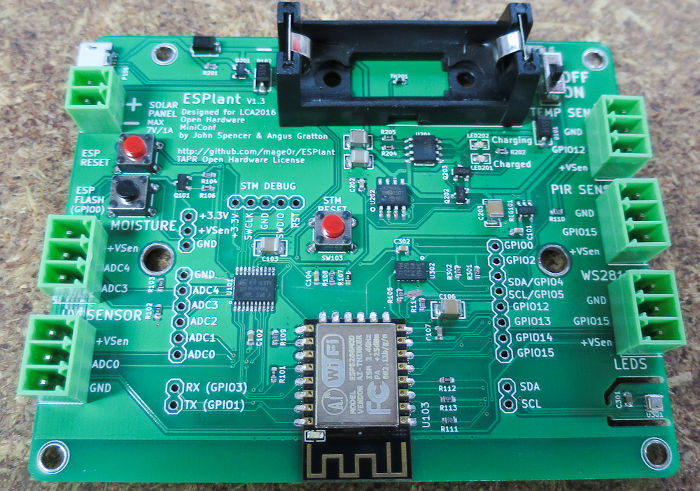

Prototype board in action (before significant changes):

ESPlant, from the project README
From the project README

Main components on the ESPlant

STM32F042FESP-12ECN3063MCP6002BME280ADXL345

ESPlant bill of materials (BOM)

75 components, 46 distinct parts.

QtyPartRefs
1
STM32F042F
U101
1
ESP-12E
U103
1
CN3063
U201
1
MCP6002
U202
1
BME280
U301
1
ADXL345
U302
4
FDN340P
Q101, Q201, Q202, Q203
1
SOIL
P1
1
CONN_DIGITAL
P101
1
CONN_ANALOG
P102
1
CONN_SERIAL
P103
1
CONN_I2C
P104
1
SOLAR
P105
1
USB_5PIN_SHELL
P106
1
CONN_PWR
P109
1
CONN_01X05
P110
1
UV
P111
1
TEMP
P112
1
NEOPIXEL
P113
1
PIR
P114
Show 26 more
QtyPartRefs
1
VAL**
1pin
1
Battery
BT101
1
1A PTC
F101
4
TEST_1P
MH101, MH102, MH103, MH104
1
SPX3819M5-3.3
REG101
2
RESET
SW101, SW103
1
PRGM
SW102
1
SS12D00
SW104
1
10K NTC
TH201
1
LED_GREEN
LED201
1
LED_RED
LED202
3
SS14
D101, D102, D201
3
100nF
C101, C102, C107
3
10uF 16V
C103, C201, C204
1
100nF
C104
2
100uF 16V X5R
C106, C203
1
100nF 16V
C202
2
1uF
C301, C302
5
1K
R101, R106, R112, R201, R202
3
100K 1%
R102, R103, R108
6
10K
R104, R105, R109, R111, R113, R114
1
121K 1%
R107
1
4.7K DNP
R110
2
100K
R203, R206
2
7.15K 1%
R204, R205
2
4.7K
R301, R302

ESPlant design files

The KiCad project lives in the CCHS-Melbourne/ESPlant repository on GitHub; these links point at the commit this page was built from.

ESPlant: common questions

What microcontroller does the ESPlant use?

The ESPlant is built around the ESP-12E, from the ESP8266 family.

How big is the ESPlant PCB?

The ESPlant measures 97 × 77.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESPlant?

75 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESPlant design files?

From the CCHS-Melbourne/ESPlant repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ESPlant design in my own project?

Yes, under the terms of its TAPR-OHL-1.0 license, which CCHS-Melbourne chose for the repository.

Can I test firmware for the ESPlant without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
