About the PocketPD HW PCB

PocketPD HW is an open source RP2040/RP2350 PCB design by CentyLab, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 50 × 50 mm, with 81 components from 34 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the LM73100, AP33772, AP2204K-3.3, W25Q16JVUXIQ_TR and INA226. By type, the board carries 30 resistors, 28 capacitors, 8 ICs, 5 diodes, 4 connectors and 4 switches.

From the project

Hardware repo for PocketPD

Shield: [![CC BY-SA 4.0][cc-by-sa-shield]][cc-by-sa]

This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].

[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-image]: https://licensebuttons.net/l/by-sa/4.0/88x31.png [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg

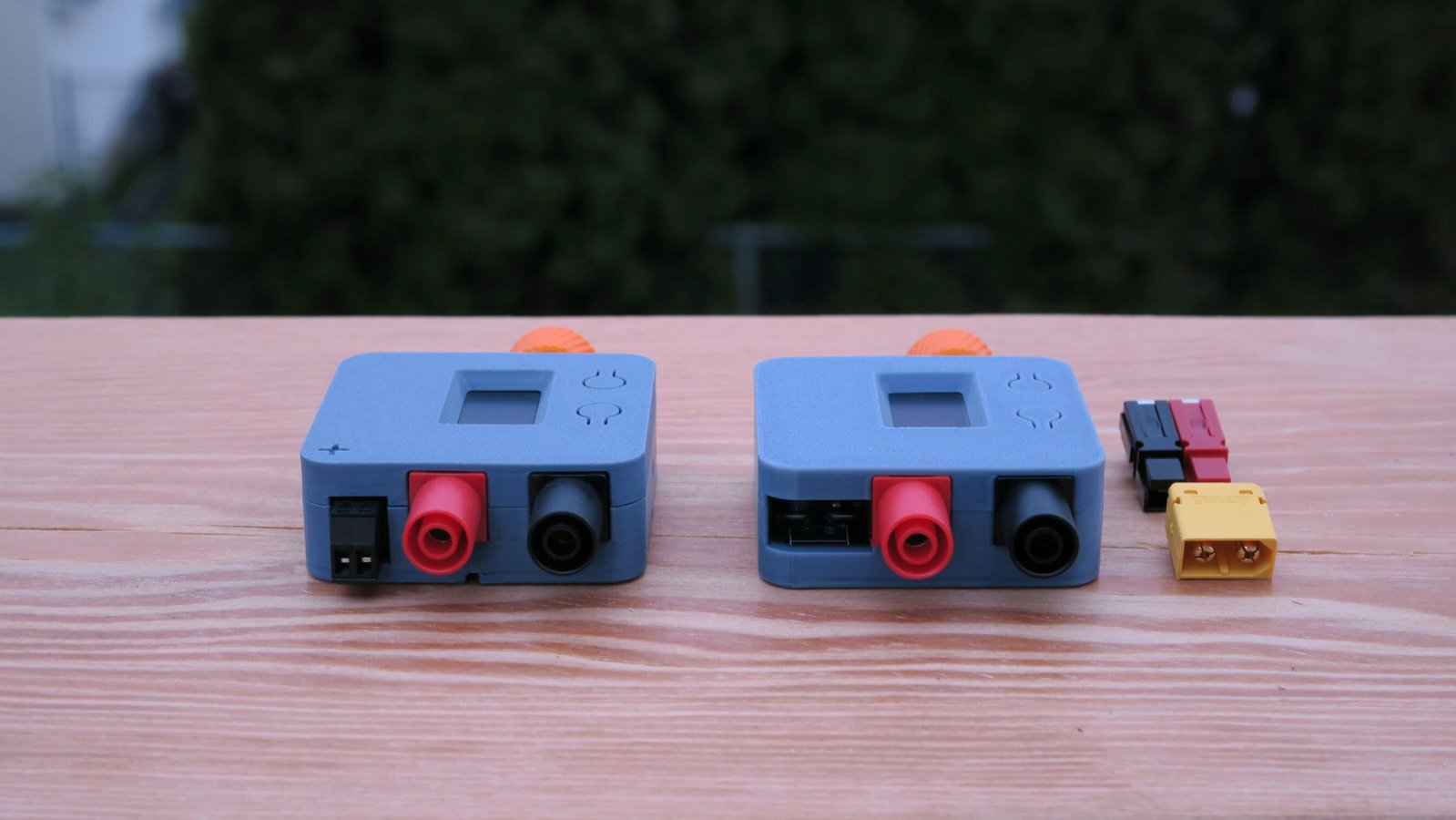

PocketPD HW, from the project README — From the project README

Main components on the PocketPD HW

LM73100 AP33772 RP2040 AP2204K-3.3 W25Q16JVUXIQ_TR INA226 74LVC1G17

PocketPD HW bill of materials (BOM)

81 components, 34 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	LM73100	VQFN-HR-16	U1, U6
1	AP33772	QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm	U2
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U3
1	AP2204K-3.3	SOT-23-5	U4
1	W25Q16JVUXIQ_TR	8-USON	U5
1	INA226	VSSOP-10_3x3mm_P0.5mm	U7
1	74LVC1G17	SOT-353_SC-70-5	U8
1	12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_C_Receptacle	USB_C_GSwitch	J1
1	OLED	Conn_OLED_PocketPD	J4
1	BananaP	Banana_Cliff_FCR7350R_S16N-PC_Horizontal	J6
1	BananaN	Banana_Cliff_FCR7350B_S16N-PC_Horizontal	J8
1	RotaryEncoder_Switch	RotaryEncoder_EC11B_SW_Horizontal	SW1
1	SW_Select	Button_6.2x6.2x12mm	SW2
1	SW_OutPut	Button_6.2x6.2x12mm	SW4
1	~ SHOU HAN(首韩)	Button-SMD_TS24CA	SW5
1	Thermistor_NTC	R_0402_1005Metric	TH1
1	TPD4E05U06DQAR	SON50P100X255X50-10N	D1
1	D_Schottky	D_SMA	D2
2	D_TVS	D_SMA	D3, D6

Show 14 more

Qty	Part	Footprint	Refs
1	RED	LED_0603_1608Metric	D5
15	100nF	C_0402_1005Metric	C1, C2, C4, C5, C7, C8, C9, C10 +7
2	1u	C_0805_2012Metric	C3, C27
3	2.2uF	C_0402_1005Metric	C6, C13, C18
3	10u	C_1210_3225Metric	C15, C22, C23
2	30pF	C_0402_1005Metric	C16, C20
1	100u	CP_Elec_6.3x7.7	C17
2	100n	C_0603_1608Metric	C28, C30
1	5mR	R_1206_3216Metric	R1
8	5.1k	R_0402_1005Metric	R2, R3, R4, R5, R8, R21, R23, R24
9	10k	R_0402_1005Metric	R6, R7, R9, R15, R16, R17, R19, R22 +1
2	27R	R_0402_1005Metric	R10, R11
7	1k	R_0402_1005Metric	R12, R18, R20, R26, R27, R29, R30
3	10R	R_0402_1005Metric	R13, R14, R25

PocketPD HW design files

The KiCad project lives in the CentyLab/PocketPD_HW repository on GitHub; these links point at the commit this page was built from.

LayoutDesign Files/PicoPDSupply.kicad_pcb
SchematicDesign Files/PicoPDSupply.kicad_sch
BOMAssembly_BOM.xlsx

PocketPD HW: common questions

What microcontroller does the PocketPD HW use?

The PocketPD HW is built around the RP2040, from the RP2040/RP2350 family.

How big is the PocketPD HW PCB?

The PocketPD HW measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PocketPD HW?

81 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PocketPD HW design files?

From the CentyLab/PocketPD_HW repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PocketPD HW design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which CentyLab chose for the repository.

Can I test firmware for the PocketPD HW without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
