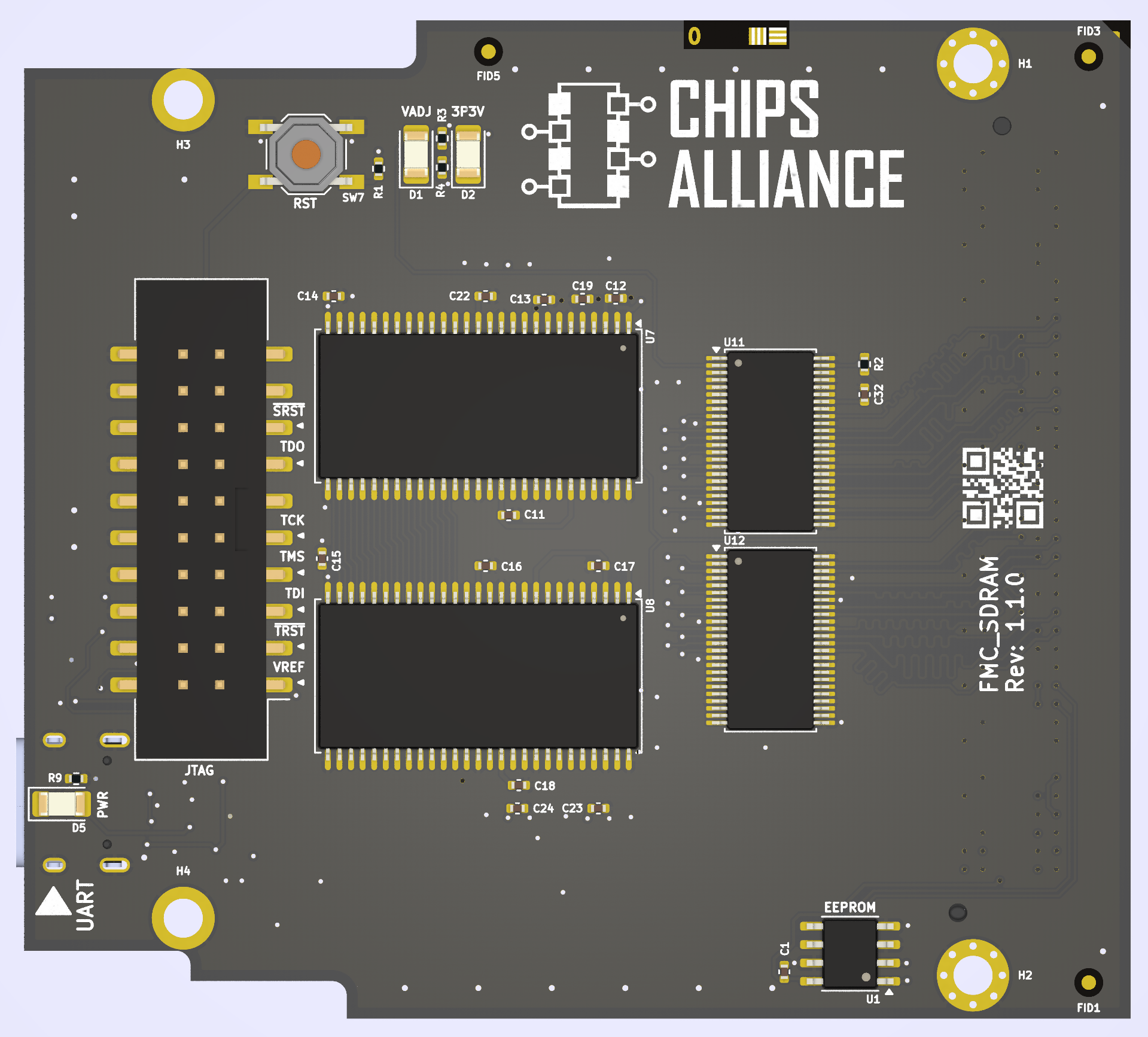

Fmc sdram PCB layout, top view — open source board by chipsalliance
Simulate this board

About the Fmc sdram PCB

Fmc sdram is an open source PCB design by chipsalliance, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 76.5 × 69 mm, with 63 components from 19 distinct parts.

Other key parts include the M24C02-FMN, TXS02612RTWR, TPD4E02B04DQA, CH343P and MT48LC16M16A2P. By type, the board carries 34 capacitors, 12 ICs, 10 resistors, 3 connectors, 3 diodes and 1 switch.

It belongs with the usb & debug tools designs in this gallery.

From the project

PCB libraries and templates for rocket-chip based FPGA/ASIC designs

FMC mezannine card with dual MT48LC16M16A2 SDRAM, organized as 16Mx32bit, with level shifters for VADJ. Also includes USB to UART bridge, JTAG level shifter with ARM 20-pin JTAG header.

When using it for the first time, it is necessary to program the IPMI FRU data for the EEPROM so that the development board can identify the power supply of the FMC.

If you only need to build the eeprom binary,

Fmc sdram, from the project README
From the project README

Main components on the Fmc sdram

M24C02-FMNTXS02612RTWRTPD4E02B04DQACH343PMT48LC16M16A2PSN74AVCH16T245GRSN74AVCH2T45DCU

Fmc sdram bill of materials (BOM)

63 components, 19 distinct parts.
