Dough133 PCB layout, top view — open source ESP32 board by chl33

About the Dough133 PCB

Dough133 is an open source ESP32 PCB design by chl33, published on GitHub under the MIT license. It is a 4-layer board measuring 69.9 × 44.5 mm, with 59 components from 39 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the SHTC3, AMS1117-3.3, SN74LVC1G123DCUR and 74LVC1G08. By type, the board carries 5 ICs, 4 LEDs, 2 connectors, 2 jumpers, 1 inductor and 1 capacitor.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

A temperature-controlled container for proofing and fermenting soughdough

Dough133 is a temperature-controlled container for proofing and fermenting sourdough. It uses a small cooler and a PTC heater with a fan to heat the inside of the cooler. A PCBA with an ESP32 controls the power supplied to the heater to regulate the temperature of the enclosure.

This repository contains: - KiCAD design for the PCB. - Source code for the device firmware. - OpenSCAD design for 3D printed components.

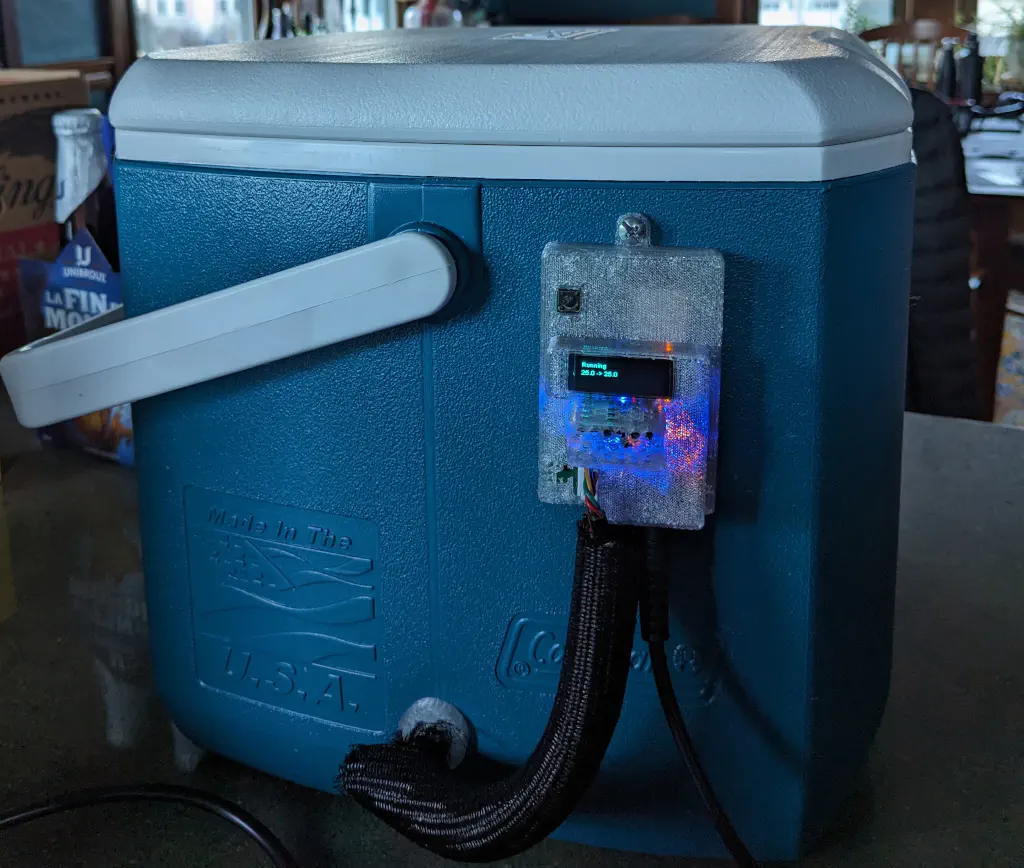

Dough133, from the project README
From the project README

Main components on the Dough133

SHTC3ESP32-WROOM-32AMS1117-3.3SN74LVC1G123DCUR74LVC1G08

Dough133 bill of materials (BOM)

59 components, 39 distinct parts.

QtyPartRefs
1
SHTC3
U1
1
ESP32-WROOM-32
U2
1
AMS1117-3.3
U3
1
SN74LVC1G123DCUR
U4
1
74LVC1G08
U5
1
Conn_01x06
J1
1
Edge2x6_Connector
J3
1
10nF (50V)
CB1
1
4.7uF
C_B1
6
100nF
C_RST1, Ca1, Ca2, Ca3, Ca4, Ca5
1
100pF
C_RT1
2
10uF
Cb2, Cb3
1
220uF (35Vx2)
Cbulk1
1
47uF
Cc1
1
44uF (16V)
Cc2
1
SS34
DB1
1
1N4001
DFAN1
1
SS34-E3/9AT
DHR1
2
Barrel_Jack
JHTR1, JPWR1
2
SolderJumper_2_Open
JP1, JP2
Show 19 more
QtyPartRefs
1
Conn_01x04_Female
J_OLED1
2
IRLB8721PBF
Q_FAN1, Q_HTR1
1
33k
RB1
1
43k
RB2
1
8.2k
RB3
2
100k
RPUSW1, R_T1
2
470
RRST1, Rt3
1
27k
R_RT1
2
2.2k
Rf1, Rf2
4
1k
Rl1, Rl2, Rl3, Rl4
2
490
Rt1, Rt2
2
12k
Ru1, Ru2
2
10k
Ru3, Ru4
1
SW_Push
SW_ON1
1
BD90610EFJ-CE2
U_B1
3
LED
D_HR1, D_LFN1, D_SFTY1
1
BLU
D_PWR1
1
100 μH
L1
1
180pF (50V)
C2
