Voyager-Panel

Cocotrilito·Voyager-Panel·projectFiles/voyagerPanel.kicad_pcb

Voyager-Panel PCB layout, top view — open source ESP32 board by Cocotrilito

About the Voyager-Panel PCB

Voyager-Panel is an open source ESP32 PCB design by Cocotrilito, published on GitHub under the MIT license. It is a 2-layer board measuring 71 × 50.3 mm, with 44 components from 25 distinct parts.

Its main chip is the ESP32-S3-MINI-1, from the ESP32 family. Other key parts include the MCP1700X-330XXMB and TP4056-42-ESOP8. By type, the board carries 12 capacitors, 8 resistors, 5 diodes, 4 connectors, 4 switches and 3 ICs.

It belongs with the iot & wireless, displays & leds and power & battery designs in this gallery.

From the project

An E-Ink travel dashboard. with an ESP32-S3 Showing weather, hackclub countdowns, and travel info for hackactons. this dashboard has Low-Power consumption, Wi-Fi connected, battery-operated!!!!

ESP32-S3 · 296×128 E-Paper · Battery Powered · Wi-Fi · Low Power

An E-Ink travel dashboard. with an ESP32-S3 Showing weather, hackclub countdowns, and travel info for hackactons. this dashboard has Low-Power consumption, Wi-Fi connected, battery-operated!!!!

This project started from the dream of always wanting to have a big countdown telling you the Narrow door for a better future is closing, yeah crazy right?, hahaha well actually this project started in the supermarket of my local city, I was shopping and noticed an E-Ink display, I thought I have seen this before and it was when I was…

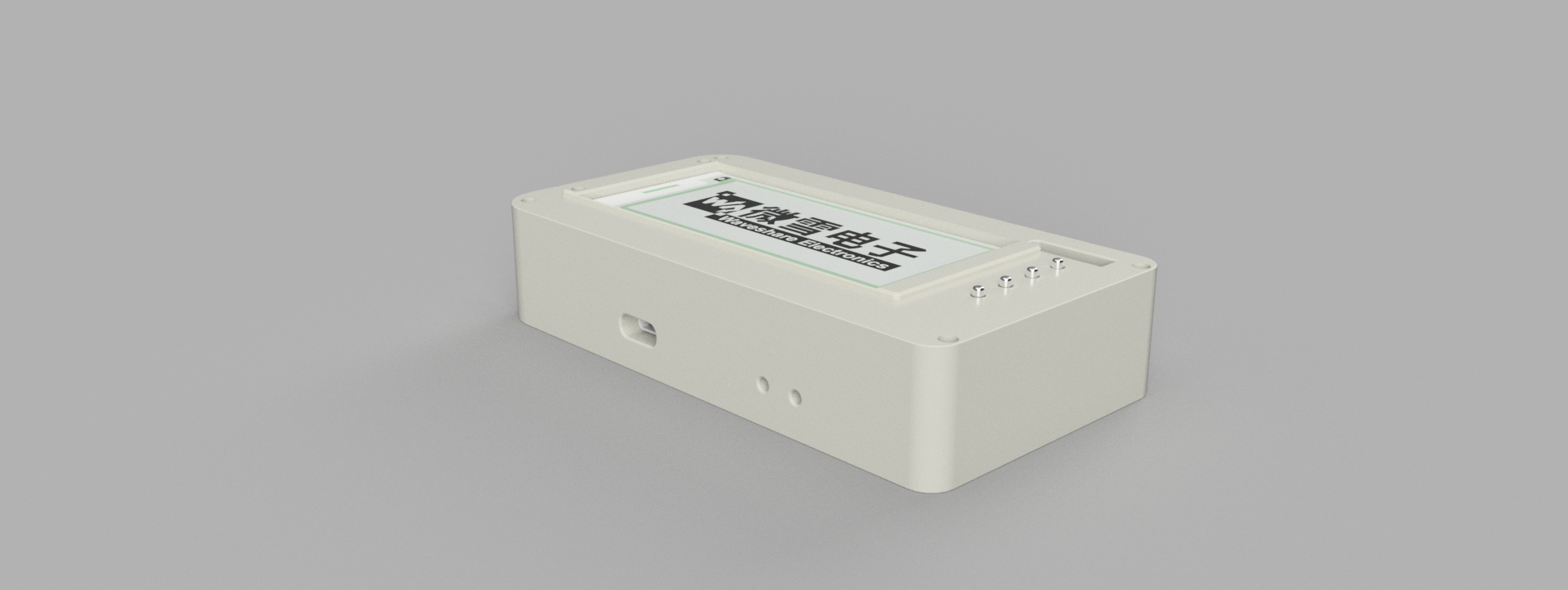

Voyager-Panel, from the project README
From the project README

Main components on the Voyager-Panel

ESP32-S3-MINI-1MCP1700X-330XXMBTP4056-42-ESOP8

Voyager-Panel bill of materials (BOM)

44 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-MINI-1
U1
1
MCP1700X-330XXMB
MCP1700x-330xxMB
U2
1
TP4056-42-ESOP8
U4
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
Battery Pin
J2
1
E-ink
J3
1
BME280_MODULE
J4
1
10K
10k
EN1
1
500MA
500mA
F1
2
5.1K
5.1k
RC1, RC2
1
1k
RLED1
4
SW_PUSH_45DEG
SW_Push_45deg
SW1, SW2, SW3, SW4
1
10k
e-ink1
2
27R
usb1, usb2
1
SP0503BAHTG
D1
1
SS14
D2
3
LED
D3, D4, D5
5
10UF
10uF
C1, C2, C3, C4, C5
5
100NF
100nF
C6, C8, C9, C10, C12
1
22UF
22uF
C7
Show 5 more
QtyPartRefs
1
1UF
1uF
C11
1
2.2K
2.2k
R3
3
10K
10k
R4, R9, R10
2
1k
R5, R6
2
4.7K
4.7k
R14, R15

Voyager-Panel design files

The KiCad project lives in the Cocotrilito/Voyager-Panel repository on GitHub; these links point at the commit this page was built from.

Voyager-Panel: common questions

What microcontroller does the Voyager-Panel use?

The Voyager-Panel is built around the ESP32-S3-MINI-1, from the ESP32 family.

How big is the Voyager-Panel PCB?

The Voyager-Panel measures 71 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Voyager-Panel?

44 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Voyager-Panel design files?

From the Cocotrilito/Voyager-Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Voyager-Panel design in my own project?

Yes, under the terms of its MIT license, which Cocotrilito chose for the repository.

Can I test firmware for the Voyager-Panel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
