Compostaje PCB layout, top view — open source ESP32 board by dani0421

About the Compostaje PCB

Compostaje is an open source ESP32 PCB design by dani0421, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 103 components from 35 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the TLP281-4GB(F), L298N, AMS1117-5.0, AMS1117-3.3 and LM393. By type, the board carries 36 resistors, 19 diodes, 18 capacitors, 9 ICs, 8 transistors and 8 connectors.

From the project

Seleccionar el nivel de compostaje que el dispositivo contiene. Visualizar por medio de pantalla el tiempo que falta para finalizar el proceso. Notificar al usuario cuando los filtros requieran ser reemplazados. Evitar que el dispositivo genere malos olores. * Notificar al usuari

Seleccionar el nivel de compostaje que el dispositivo contiene. Visualizar por medio de pantalla el tiempo que falta para finalizar el proceso. Notificar al usuario cuando los filtros requieran ser reemplazados. Evitar que el dispositivo genere malos olores. * Notificar al usuario por medio de un mensaje vía Telegram cuando se acabó el proceso de compostaje.

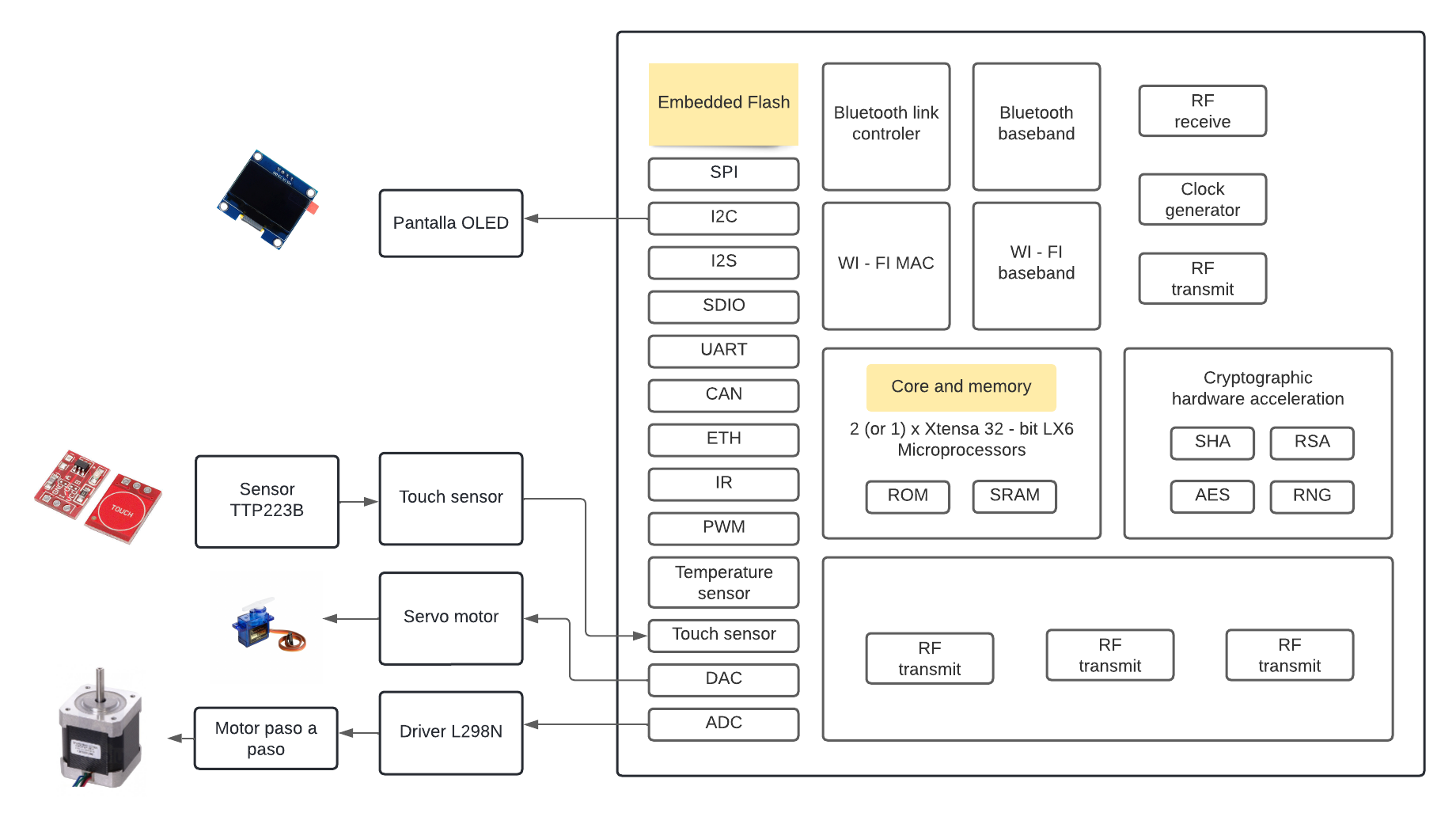

Compostaje, from the project README
From the project README

Main components on the Compostaje

ESP32-WROOM-32TLP281-4GB(F)L298NAMS1117-5.0AMS1117-3.3LM393A3144

Compostaje bill of materials (BOM)

103 components, 35 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
2
TLP281-4GB(F)
U2, U3
2
L298N
U4, U5
1
AMS1117-5.0
U6
1
AMS1117-3.3
U7
1
LM393
U8
1
A3144
U9
8
BC328
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
1
OTHERS
J1
1
GPIO
J2
2
Conn_01x04
J3, J4
1
TOUCH_SENSOR
J5
1
Barrel_Jack_MountingPin
J6
1
SERIAL_USB
J7
1
OLED
J8
1
1A
F1
1
2A
F2
1
R_Potentiometer
RV1
1
RESET
SW1
1
BOOT
SW2
Show 15 more
QtyPartRefs
16
1N4007
D1, D2, D3, D4, D5, D6, D7, D8 +8
1
1N4002
D17
1
LED
D18
1
LED_DETECTION
D19
6
10uF
C1, C7, C10, C11, C14, C18
1
10uf
C2
4
220uf
C3, C4, C5, C6
2
10uf
C8, C12
2
100nf
C9, C13
3
0.1uF
C15, C16, C17
4
10k
R1, R4, R30, R32
6
4.7K
R2, R3, R33, R34, R35, R36
8
220
R5, R6, R7, R8, R17, R18, R19, R20
16
5.1k
R9, R10, R11, R12, R13, R14, R15, R16 +8
2
1K
R29, R31

Compostaje design files

The KiCad project lives in the dani0421/Compostaje repository on GitHub; these links point at the commit this page was built from.

Compostaje: common questions

What microcontroller does the Compostaje use?

The Compostaje is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Compostaje PCB?

The Compostaje measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Compostaje?

103 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the Compostaje design files?

From the dani0421/Compostaje repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Compostaje design in my own project?

The repository has no license, so all rights stay with dani0421. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Compostaje without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
