Minicopter

darshg321·Minicopter·pcb/Minicopter.kicad_pcb

Minicopter PCB layout, top view — open source ESP32 board by darshg321

About the Minicopter PCB

Minicopter is an open source ESP32 PCB design by darshg321, published on GitHub. It is a 2-layer board measuring 136.1 × 135.4 mm, with 57 components from 27 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the SPX3819M5-L-3-3, TP4056-42-ESOP8, GY-87_MODULE and USBLC6-2P6. By type, the board carries 18 resistors, 12 capacitors, 10 diodes, 6 connectors, 5 ICs and 4 transformers.

It belongs with the robotics & motion, power & battery and iot & wireless designs in this gallery.

From the project

Compact and precise ESP-32 based drone capable of autonomous pathing, built from scratch

A lightweight ESP-32 based drone capable of autonomous pathing, built for agility. Uses the GY-87 breakout board with a three-axis gyroscope + triaxial accelerometer + three-axis magnetic field + pressure. Charges a LiPo battery with USB-C and can be flashed with firmware. Can be controlled with both pathing commands and bluetooth controls.

I made this project after getting inspiration from a different esp32 drone reel, and thought I could make that too I've additionally always wanted to get into creating a from-scratch hardware project that includes microcontrollers and pcbs, and thought…

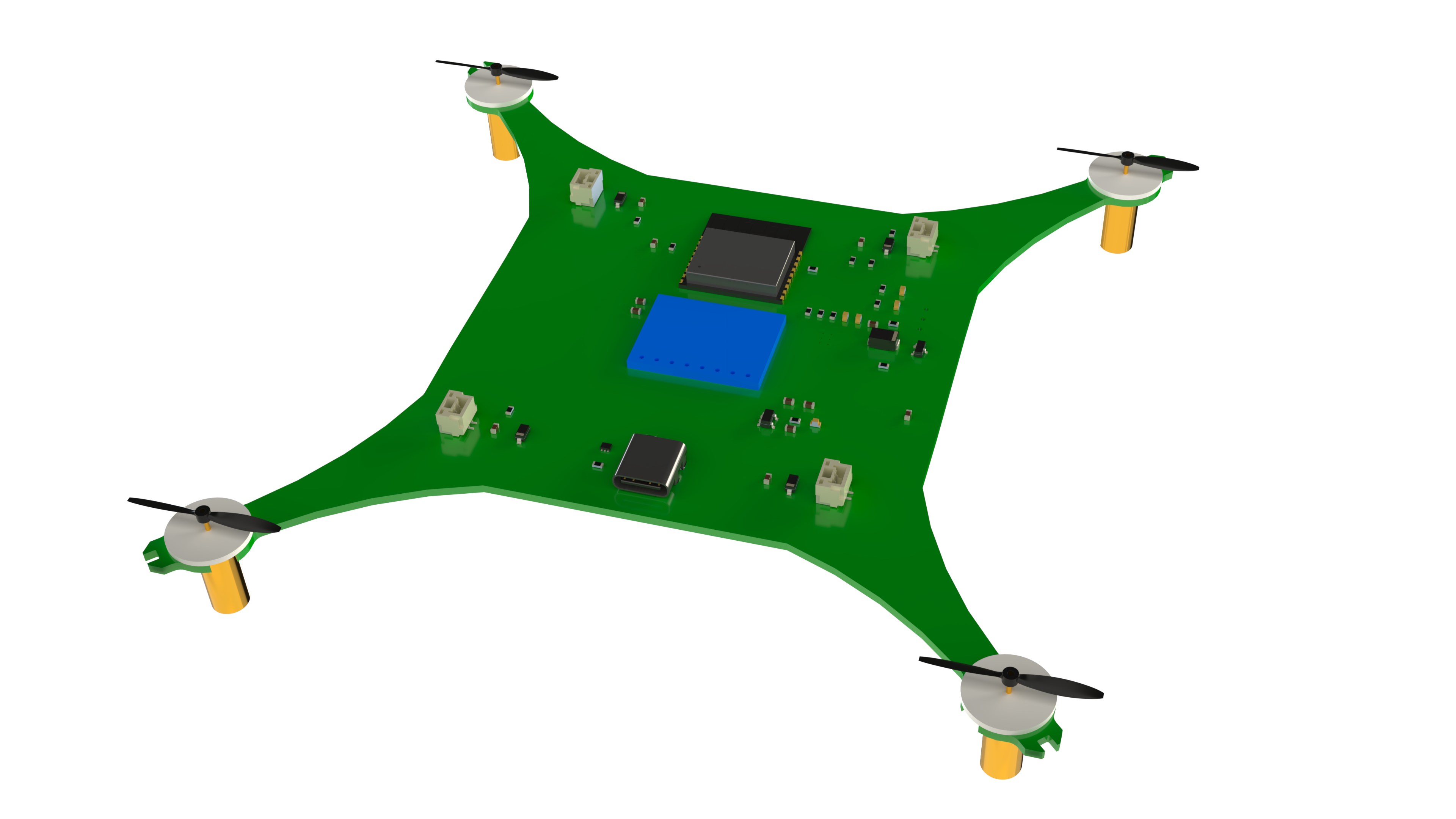

Minicopter, from the project README
From the project README

Main components on the Minicopter

SPX3819M5-L-3-3TP4056-42-ESOP8ESP32-C3-WROOM-02GY-87_MODULEUSBLC6-2P6

Minicopter bill of materials (BOM)

57 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SPX3819M5-L-3-3
U1
1
TP4056-42-ESOP8
U2
1
ESP32-C3-WROOM-02
U3
1
GY-87_MODULE
GY-87_Module
U4
1
USBLC6-2P6
U5
1
AO3401A
Q1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
CONN_01X02
Conn_01x02
J2
4
CONN_01X02_SOCKET
Conn_01x02_Socket
J3, J4, J5, J6
1
SS-12D00
SW1
4
IRLML6344TRPBF
HXY MOSFET
T1, T2, T3, T4
1
SS34
D1
5
LED
D2, D3, D4, D9, D10
4
1N4148W
D5, D6, D7, D8
3
10UF
10uF
C1, C4, C5
1
470PF
470pF
C2
1
2.2UF
2.2uF
C3
2
100NF
100nF
C6, C12
1
10NF
10nF
C7
4
1UF
1uF
C8, C9, C10, C11
Show 7 more
QtyPartRefs
2
5.1K
R1, R2
4
100K
R3, R8, R9, R10
1
470
R4
1
1.2K
R5
4
1K
R6, R7, R16, R17
5
10K
R11, R12, R13, R14, R15
1
10K
R18

Minicopter design files

The KiCad project lives in the darshg321/Minicopter repository on GitHub; these links point at the commit this page was built from.

Minicopter: common questions

What microcontroller does the Minicopter use?

The Minicopter is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the Minicopter PCB?

The Minicopter measures 136.1 × 135.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Minicopter?

57 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Minicopter design files?

From the darshg321/Minicopter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Minicopter design in my own project?

The repository has no license, so all rights stay with darshg321. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Minicopter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
