About the SST80 PCB

SST80 is an open source RP2040/RP2350 PCB design by dededecline, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 344.7 × 124.1 mm, with 152 components from 20 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the XC6206PXXXMR, PRTR5V0U2X, W25Q128JVS and SN74AHCT1G125. By type, the board carries 117 diodes, 15 capacitors, 8 resistors, 5 ICs, 1 crystal and 1 connector.

It belongs with the keyboards designs in this gallery.

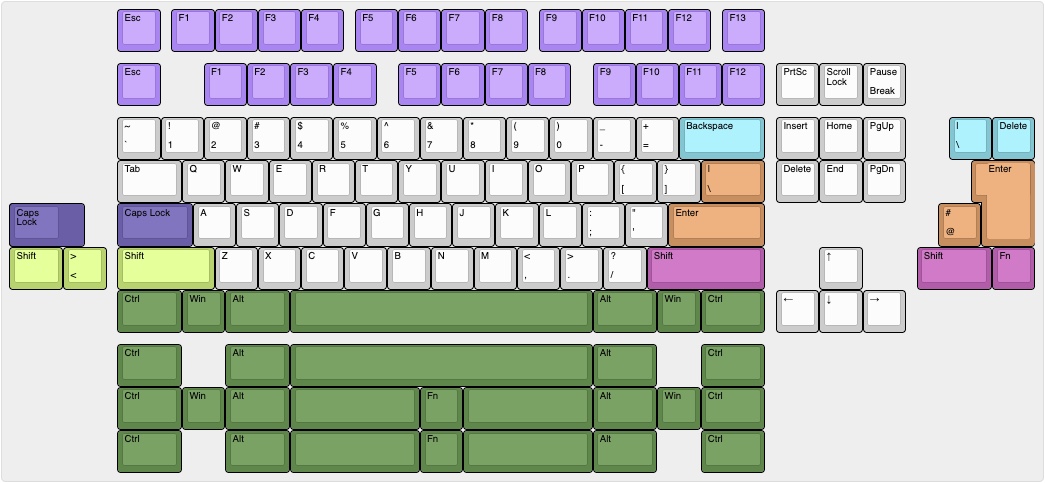

SST80, from the project README — From the project README

Main components on the SST80

XC6206PXXXMR PRTR5V0U2X RP2040 W25Q128JVS SN74AHCT1G125

SST80 bill of materials (BOM)

152 components, 20 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	XC6206PXXXMR XC6206PxxxMR	SOT-23	U1
1	PRTR5V0U2X	SOT143B	U2
1	RP2040	RP2040-QFN-56	U3
1	W25Q128JVS	SOIC-8_5.23x5.23mm_P1.27mm	U4
1	SN74AHCT1G125	SOT-23-5	U5
1	12MHZ 12MHz	Resonator_SMD_Murata_CSTxExxV-3Pin_3.0x1.1mm	Y1
1	C2997427 EZMate	Molex_Pico-EZmate_78171-0004_1x04-1MP_P1.20mm_Vertical	J1
1	500MA 500mA	Fuse_0805_2012Metric	F1
1	JST	JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal	J_UDB1
1	Solder	PinSocket_1x04_P2.54mm_Vertical	J_USB-DB1
1	Boot	SW_SPST_TL3342	SW_Boot1
1	Reset	SW_SPST_TL3342	SW_RST1
93	C64898 D_Small	D_SOD-123	D1, D2, D3, D4, D5, D6, D7, D8 +85
24	WS2812B-2020	LED_WS2812_2020	D95, D96, D97, D98, D99, D100, D101, D102 +16
4	1UF 1uF	C_0402_1005Metric	C1, C2, C4, C5
1	10UF 10uF	C_0402_1005Metric	C3
10	100NF 100nF	C_0402_1005Metric	C6, C7, C8, C9, C10, C11, C12, C13 +2
5	1k	R_0402_1005Metric	R1, R2, R3, R9, R10
2	27	R_0402_1005Metric	R6, R7
1	10k	R_0402_1005Metric	R8

SST80 design files

The KiCad project lives in the dededecline/SST80 repository on GitHub; these links point at the commit this page was built from.

SST80: common questions

What microcontroller does the SST80 use?

The SST80 is built around the RP2040, from the RP2040/RP2350 family.

How big is the SST80 PCB?

The SST80 measures 344.7 × 124.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SST80?

152 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SST80 design files?

From the dededecline/SST80 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SST80 design in my own project?

Yes, under the terms of its GPL-3.0 license, which dededecline chose for the repository.

Can I test firmware for the SST80 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
