HomeBoy PCB layout, top view — open source board by devisunofficial

About the HomeBoy PCB

HomeBoy is an open source PCB design by devisunofficial, published on GitHub. It is a 4-layer board measuring 99.5 × 90.2 mm, with 55 components from 33 distinct parts.

Other key parts include the PZ2.54-2*7, TF-CARD-9P, AP22653W6, ASEK-32.768KHZ-L-R-T and AP3441SHE-7B. By type, the board carries 19 capacitors, 11 resistors, 10 connectors, 7 ICs, 5 diodes and 1 battery holder.

It belongs with the power & battery designs in this gallery.

From the project

Homeboy is Raspberry-Pi based Game Console(Emulator) which can also act as server( or Backend) for my other projects.

Homeboy is Raspberry-Pi based Game Console(Emulator) which can also act as server( or Backend) for my other projects.

It has 3 separate printed pieces. The Base, the Enclosure to support pcb, and Switch to to turn-on it (😏).

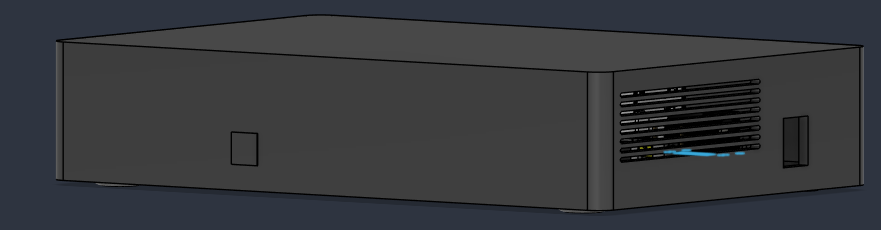

HomeBoy, from the project README
From the project README

Main components on the HomeBoy

PZ2.54-2*7TF-CARD-9PAP22653W6ASEK-32.768KHZ-L-R-TAP3441SHE-7BRT9742SNGVRT9742GGJ5

HomeBoy bill of materials (BOM)

55 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PZ2.54-2*7
ZHOURI(洲日)
U1
1
TF-CARD-9P
BXCONN(宝讯)
U2
1
AP22653W6
U6
1
ASEK-32.768KHZ-L-R-T
U7
1
AP3441SHE-7B
U8
1
RT9742SNGV
U12
1
RT9742GGJ5
U18
2
10164227-1001A1RLF
Amphenol
CN1, CN2
1
Barrel_Jack_Switch
J1
2
Conn_01x01_Pin
J2, J3
1
BUS_M.2_SOCKET_M
Bus_M.2_Socket_M
J4
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J11
1
USB3_A
J12
1
JST_SHBM04B-SRSS-TB
J14
1
690-019-298-412
J22
1
BS-06-B4AA012
MYOUNG(美阳)
BT1
1
Right angle Tact button
SW1
1
LED Red
D1
1
SMAJ5.0A_C113952
MDD(辰达半导体)
D2
2
LED Green
D3, D4
Show 13 more
QtyPartRefs
1
SS54
MDD(辰达半导体)
D5
1
2.2UH
2.2uH
L1
1
1000uF
C1
10
10UF
10uF
C2, C4, C5, C6, C7, C8, C14, C15 +2
1
100UF
100uF
C3
6
100NF
100nF
C9, C10, C12, C13, C18, C19
1
4.7NF
4.7nF
C11
3
1k
R2, R10, R17
1
0R
R5
2
2.2K 1%
R9, R16
3
10K 1%
R11, R13, R15
1
15K 1%
R12
1
100K 1%
R14

HomeBoy design files

The KiCad project lives in the devisunofficial/HomeBoy repository on GitHub; these links point at the commit this page was built from.

HomeBoy: common questions

How big is the HomeBoy PCB?

The HomeBoy measures 99.5 × 90.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the HomeBoy?

55 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HomeBoy design files?

From the devisunofficial/HomeBoy repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HomeBoy design in my own project?

The repository has no license, so all rights stay with devisunofficial. Use it as a reference, and ask the author before reusing the design.
