AutoPLC PCB layout, top view — open source board by dezamora98

About the AutoPLC PCB

AutoPLC is an open source PCB design by dezamora98, published on GitHub. It is a 2-layer board measuring 208.9 × 119.9 mm, with 358 components from 76 distinct parts.

Other key parts include the LM324, LTV-817, 74HC165, MCP4822 and REF3033. By type, the board carries 176 resistors, 42 capacitors, 39 diodes, 30 ICs, 28 connectors and 16 transistors.

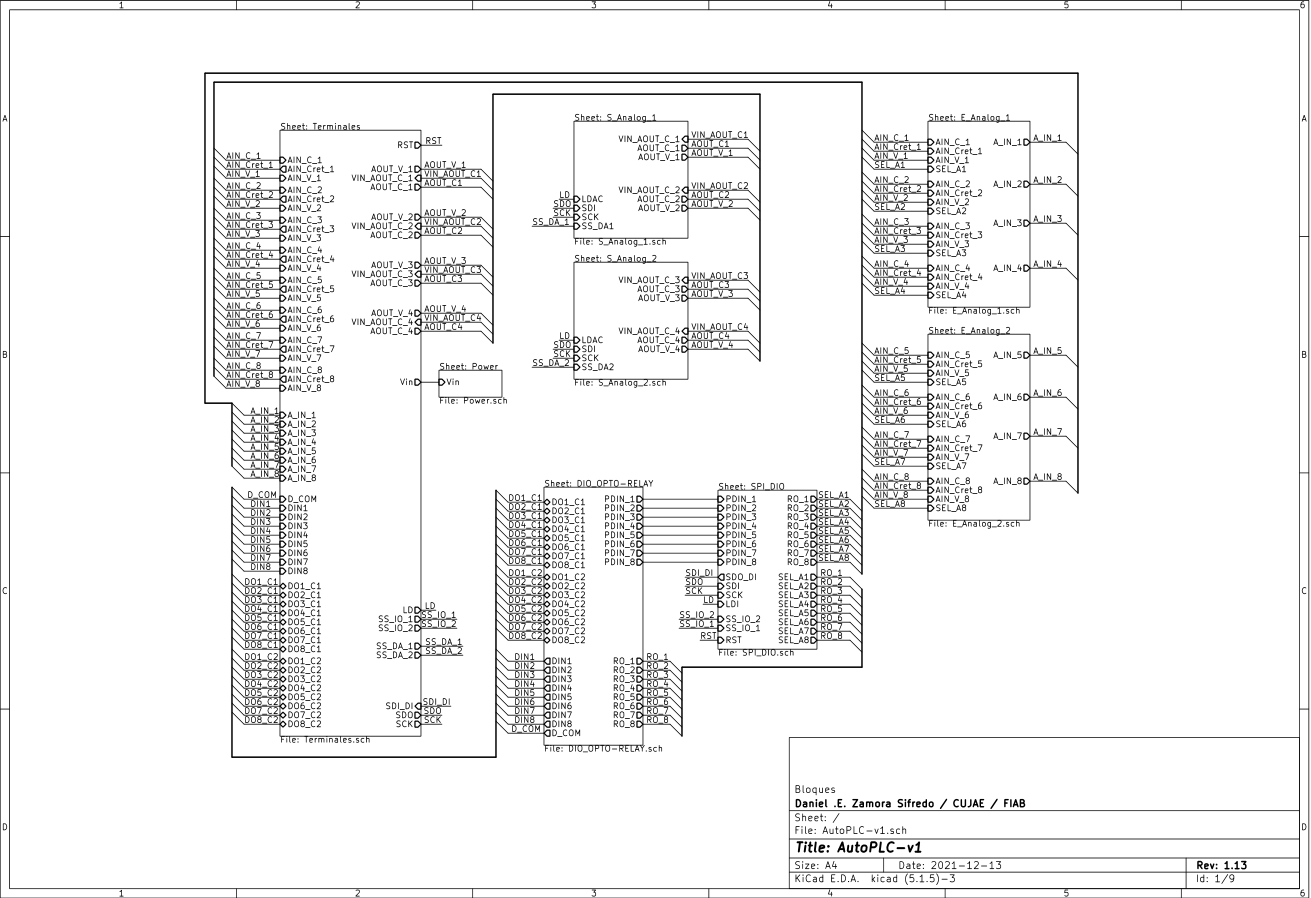

AutoPLC, from the project README
From the project README

Main components on the AutoPLC

AutoPLC bill of materials (BOM)

358 components, 76 distinct parts.

QtyPartRefs
8
LM324
U1, U2, U3, U4, U5, U6, U7, U8
12
LTV-817
U9, U10, U11, U12, U13, U14, U15, U16 +4
1
74HC165
U17
2
MCP4822
U18, U19
1
REF3033
U24
1
74hct125
U26
1
74HCT595D,118
U27
1
ULN2803A
U28
1
74HCT595D,118
U29
1
LM2596S-12
U30
1
LT1054
U31
4
TIP41
Q1, Q2, Q5, Q6
4
BC237
Q3, Q4, Q9, Q10
8
DMC2400UV
Q13, Q14, Q15, Q16, Q17, Q18, Q19, Q20
1
P_EXP
J1
1
P_ET_MOD
J2
1
AIN_1
J3
1
AIN_2
J4
1
AIN_3
J5
1
AIN_4
J6
Show 56 more
QtyPartRefs
1
AIN_5
J7
1
AIN_6
J8
1
AIN_7
J9
1
AIN_8
J10
4
AOUT_V
J11, J14, J17, J20
4
AOUT_C
J12, J15, J18, J21
1
OUT_T1
J13
1
OUT_T2
J16
1
OUT_T3
J19
1
OUT_T4
J22
1
DIN
J23
1
PW_IN
J24
1
PW & D_COM
J25
1
PW_OUT_1
J26
1
R-out
J27
1
R-out
J28
1
3A
F1
8
Relay
K1, K2, K3, K4, K5, K6, K7, K8
2
Conn_01x20_Male
L_CON1, R_CON1
12
100
RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 +4
1
30V
RV13
8
5v
D1, D2, D3, D4, D5, D6, D7, D8
8
1.5
D9, D10, D11, D12, D13, D14, D15, D16
16
LED
D17, D18, D19, D20, D21, D22, D23, D24 +8
4
B360
D33, D34, D35, D41
1
LED_C
D43
1
LED_P
D44
1
LED_R
D45
2
20uH
L1, L3
1
33uH
L2
3
1u
C1, C2, C3
1
2u
C4
8
C
C5, C6, C7, C8, C9, C10, C11, C12
8
C
C13, C14, C15, C16, C17, C18, C19, C20
8
100n
C21, C22, C23, C24, C25, C26, C27, C28
1
100uF
C29
1
220uF
C30
1
10uF
C31
1
100uF
C32
1
10uF
C33
6
0.1u
C34, C36, C39, C40, C41, C42
3
10u
C35, C37, C38
20
1k
R1, R2, R6, R18, R20, R26, R29, R36 +12
25
5k
R3, R4, R5, R7, R69, R70, R71, R72 +17
4
500
R8, R31, R32, R33
16
10k
R9, R10, R11, R12, R39, R40, R41, R42 +8
4
50k
R13, R15, R43, R45
36
100k
R14, R16, R21, R22, R23, R24, R25, R27 +28
4
12k
R17, R19, R47, R49
8
3k
R61, R62, R63, R64, R65, R66, R67, R68
27
R
R77, R78, R79, R80, R81, R82, R83, R84 +19
6
20
R101, R102, R137, R138, R155, R156
8
1.3k
R103, R104, R121, R122, R139, R140, R157, R158
8
15k
R111, R112, R129, R130, R147, R148, R165, R166
8
100
R113, R115, R131, R133, R149, R151, R167, R169
2
20
R119, R120

AutoPLC design files

The KiCad project lives in the dezamora98/AutoPLC repository on GitHub; these links point at the commit this page was built from.

AutoPLC: common questions

How big is the AutoPLC PCB?

The AutoPLC measures 208.9 × 119.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AutoPLC?

358 components, from 76 distinct parts. The full bill of materials is listed on this page.

Where can I download the AutoPLC design files?

From the dezamora98/AutoPLC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AutoPLC design in my own project?

The repository has no license, so all rights stay with dezamora98. Use it as a reference, and ask the author before reusing the design.
