PiUPS PCB layout, top view — open source Raspberry Pi board by diminDDL
Simulate this board

About the PiUPS PCB

PiUPS is an open source Raspberry Pi PCB design by diminDDL, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 87.4 × 56 mm, with 110 components from 47 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the LM393, BQ25895RTW, DW01, FS8205A and TPS61088RHLR. By type, the board carries 49 resistors, 25 capacitors, 9 transistors, 6 ICs, 6 connectors and 6 diodes.

It belongs with the power & battery designs in this gallery.

From the project

A UPS for raspberry pis.

By using this project or its parts, for any purpose and in any shape or form, you grant your implicit agreement to all the following statements:

- You condemn Russia and its military aggression against Ukraine - You recognize that Russia is an occupant that unlawfully invaded a sovereign state - You support Ukraine's territorial integrity, including its claims over temporarily occupied territories of Crimea and Donbas - You reject false narratives perpetuated by Russian state propaganda

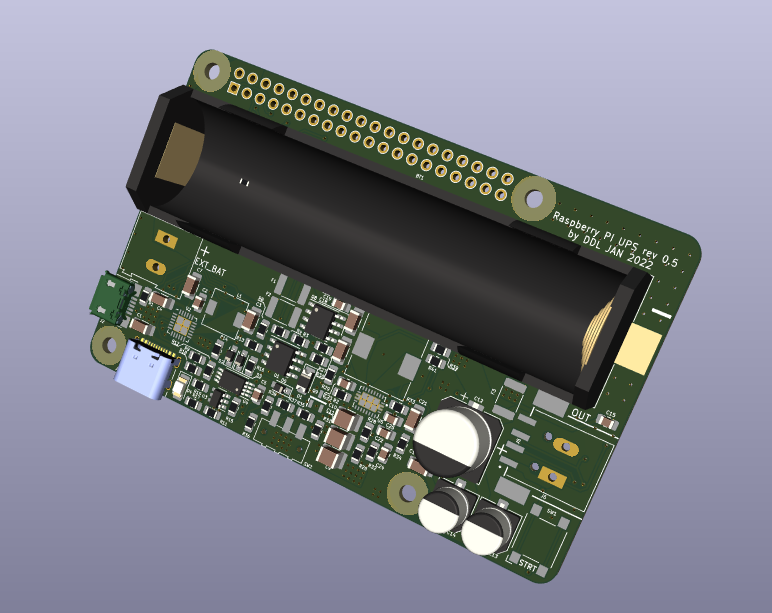

PiUPS, from the project README
From the project README

Main components on the PiUPS

LM393BQ25895RTWDW01FS8205ATPS61088RHLRDS3231M

PiUPS bill of materials (BOM)

110 components, 47 distinct parts.

QtyPartRefs
1
LM393
U1
1
BQ25895RTW
U2
1
DW01
U3
1
FS8205A
U4
1
TPS61088RHLR
U5
1
DS3231M
U6
5
IRF7404
Q1, Q2, Q4, Q5, Q8
4
IRLML2803TRPBF
Q3, Q6, Q7, Q9
1
USB_C_Receptacle_USB2.0
J1
1
USB_B_Micro
J2
2
Screw_Terminal_01x02
J3, J6
1
Raspberry_Pi_2_3
J4
1
USB_A
J5
1
Battery_Cell
BT1
2
MF-PPTC-1812-3.5A-6V
F1, F2
1
MF-PPTC-1812-2.6A-8V
F3
1
10k
RT1
1
SW_MEC_5E
SW1
1
MODE (JS102011SAQN)
SW2
1
BZV55-B2V4.115
D1
Show 27 more
QtyPartRefs
4
1PS76SB40.115
D2, D3, D5, D6
1
LED_R
D4
1
1uH
L1
1
1uH
L2
7
10uF
C1, C3, C4, C6, C7, C16, C21
2
47nF
C2, C23
6
100nF
C5, C8, C15, C17, C19, C25
3
47uF
C9, C10, C11
1
1000uF
C12
2
220uF
C13, C14
2
20uF
C18, C20
1
43pF
C22
1
1nF
C24
16
10k
R1, R2, R5, R14, R18, R19, R20, R22 +8
14
470
R3, R4, R8, R9, R10, R12, R13, R16 +6
3
5.1k
R6, R7, R17
1
100
R11
1
1k
R15
6
USR
R21, R45, R46, R47, R48, R49
1
64.9k
R26
1
210k
R28
1
18.7k
R32
1
174k
R33
1
147k
R34
1
18k
R39
1
200k
R41
1
0
R44

PiUPS design files

The KiCad project lives in the diminDDL/PiUPS repository on GitHub; these links point at the commit this page was built from.

PiUPS: common questions

What microcontroller does the PiUPS use?

The PiUPS is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the PiUPS PCB?

The PiUPS measures 87.4 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PiUPS?

110 components, from 47 distinct parts. The full bill of materials is listed on this page.

Where can I download the PiUPS design files?

From the diminDDL/PiUPS repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PiUPS design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which diminDDL chose for the repository.
