Nrf52board PCB layout, top view — open source Nordic nRF board by dimka-rs

About the Nrf52board PCB

Nrf52board is an open source Nordic nRF PCB design by dimka-rs, published on GitHub. It is a 2-layer board measuring 27.9 × 59.7 mm, with 40 components from 26 distinct parts.

Its main chip is the nrf52board, from the Nordic nRF family. Other key parts include the E73-2G4M04S, MCP73831-2-OT, LP2985-3.3, RFM95W-868S2 and CP2102-GM. By type, the board carries 13 capacitors, 9 resistors, 6 ICs, 4 diodes, 3 connectors and 2 switches.

It belongs with the rf & radio, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Breakout board for NRF52 based module E73-2G4M04S. Made with Kicad 5.

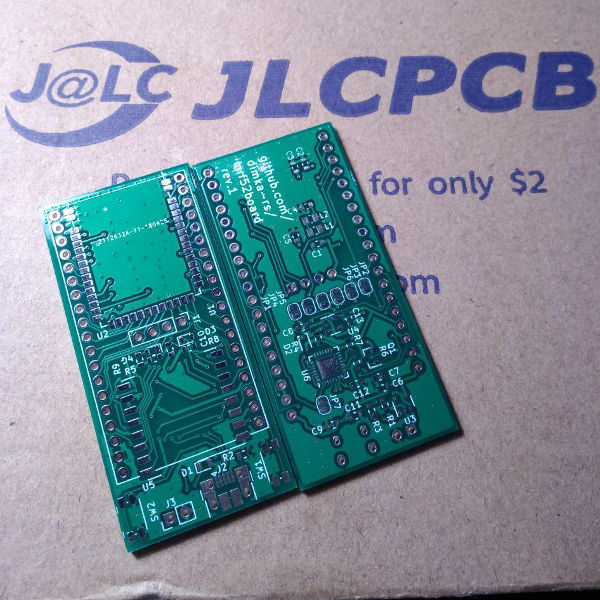

Nrf52board, from the project README
From the project README

Main components on the Nrf52board

nrf52boardE73-2G4M04SMCP73831-2-OTLP2985-3.3RFM95W-868S2CP2102-GM

Nrf52board bill of materials (BOM)

40 components, 26 distinct parts.

QtyPartRefs
1
nrf52board
U1
1
E73-2G4M04S
U2
1
MCP73831-2-OT
U3
1
LP2985-3.3
U4
1
RFM95W-868S2
U5
1
CP2102-GM
U6
1
PMV65XP
Q1
1
Conn_01x04
J1
1
USB_B_Micro
J2
1
Battery
J3
2
SW_Push
SW1, SW2
3
LC191yct
D1, D3, D4
1
NSR1020MW2
D2
1
10u
L1
1
15n
L2
4
4.7u
C1, C6, C7, C10
1
DNI
C2
1
100p
C3
4
1u
C4, C8, C9, C13
1
100n
C5
Show 6 more
QtyPartRefs
2
0.1u
C11, C12
4
10k
R1, R5, R6, R7
1
1M
R2
1
470
R3
1
100k
R4
2
1k
R8, R9

Nrf52board design files

The KiCad project lives in the dimka-rs/nrf52board repository on GitHub; these links point at the commit this page was built from.

Nrf52board: common questions

What microcontroller does the Nrf52board use?

The Nrf52board is built around the nrf52board, from the Nordic nRF family.

How big is the Nrf52board PCB?

The Nrf52board measures 27.9 × 59.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nrf52board?

40 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Nrf52board design files?

From the dimka-rs/nrf52board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Nrf52board design in my own project?

The repository has no license, so all rights stay with dimka-rs. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Nrf52board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
