FISC
About the FISC PCB

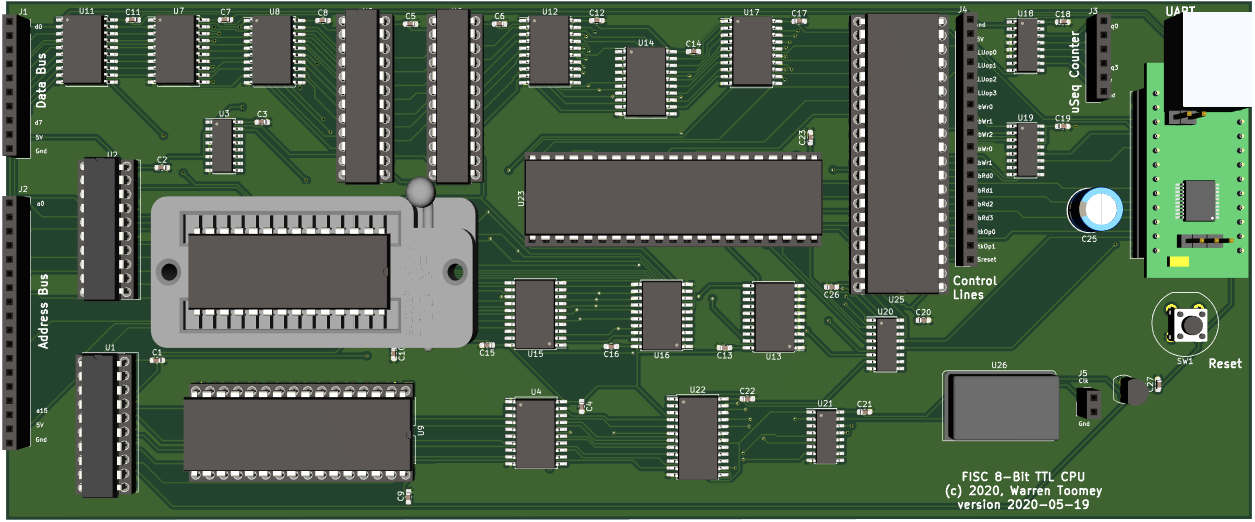

FISC is an open source PCB design by DoctorWkt, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 231.3 × 96.5 mm, with 59 components from 26 distinct parts.
Other key parts include the DS1233-10+, 74LS593, 74HCT138, 74HCT240 and 74LS469. By type, the board carries 27 ICs, 26 capacitors, 5 connectors and 1 switch.
From the project
An 8-bit TTL CPU with a Stack Pointer
Please note: The FISC design has some major flaws. Rather than fix them, I've incorporated the fixes into the next version of the design: .
FISC is an 8-bit microseqenced CPU wth a 64K address space built from discrete TTL-level components. It provides:
+ recursive Functions, + Indexed addressing and + Stack operations
as well as the usual load/store and arithmetic operations, comparisons, branches and jumps.
Main components on the FISC
FISC bill of materials (BOM)
59 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DS1233-10+ | TO-92 | IC1 |
| 2 | 74LS593 | DIP-20_W7.62mm_Socket | U1, U2 |
| 2 | 74HCT138 | SOIC-16_3.9x9.9mm_P1.27mm | U3, U19 |
| 1 | 74HCT240 | SOIC-20W_7.5x12.8mm_P1.27mm | U4 |
| 2 | 74LS469 | DIP-24_W7.62mm | U5, U6 |
| 7 | 74HCT574 | SOIC-20W_7.5x12.8mm_P1.27mm | U7, U8, U11, U12, U13, U14, U17 |
| 1 | AS6C1008 | DIP-32_W15.24mm | U9 |
| 1 | AT28C64B | DIP-28_W15.24mm | U10 |
| 2 | 74HCT541 | SOIC-20W_7.5x12.8mm_P1.27mm | U15, U16 |
| 1 | 74HCT161 | SOIC-16_3.9x9.9mm_P1.27mm | U18 |
| 1 | 74HCT151 | SOIC-16_3.9x9.9mm_P1.27mm | U20 |
| 1 | 74HCT139 | SOIC-16_3.9x9.9mm_P1.27mm | U21 |
| 1 | 74HCT154 | SOIC-24W_7.5x15.4mm_P1.27mm | U22 |
| 1 | M27C322-100F1 | DIP-42_W15.24mm | U23 |
| 1 | UM245R | DIP-24_W15.24mm_Socket | U24 |
| 1 | AT27C1024-70PU | DIP-40_W15.24mm | U25 |
| 1 | ECS-100AX-035 | Oscillator_DIP-14 | U26 |
| 1 | Data Bus Pin Header | PinSocket_1x10_P2.54mm_Vertical | J1 |
| 1 | Address Bus Pin Header | PinSocket_1x18_P2.54mm_Vertical | J2 |
| 1 | uSeq Pin Header | PinSocket_1x06_P2.54mm_Vertical | J3 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Control Lines Pin Header | PinSocket_1x18_P2.54mm_Vertical | J4 |
| 1 | Clock Pin Header | PinSocket_1x02_P2.54mm_Vertical | J5 |
| 1 | SW_Push | Push_E-Switch_KS01Q01 | SW1 |
| 24 | 0.1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +16 |
| 1 | 220uF | CP_Radial_D8.0mm_P5.00mm | C25 |
| 1 | 0.01uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C27 |
