Aurora main PCB layout, top view — open source ESP32 board by DomPka

About the Aurora main PCB

Aurora main is an open source ESP32 PCB design by DomPka, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 24 × 16.5 mm, with 60 components from 33 distinct parts.

Its main chip is the ESP32-C3-MINI-1-N4, from the ESP32 family. Other key parts include the TP4057, TLV62585DRLR, TLV333IDCKR and RT9080-33GJ5. By type, the board carries 26 resistors, 17 capacitors, 5 ICs, 4 transistors, 2 switches and 1 connector.

It belongs with the power & battery, iot & wireless and usb & debug tools designs in this gallery.

From the project

LuxLibre reference design #1: a 94.4 × 20 × 16 mm aluminium keychain light with a white LED from 3 mA moonlight to a 2.2 A turbo burst, a Class 2 green laser behind a hardware safety switch, USB-C charging, two small LiPo cells (about 800 mAh) and Bluetooth: a web page on a phone

LuxLibre reference design #1: a 94.4 × 20 × 16 mm aluminium keychain light with a white LED from 3 mA moonlight to a 2.2 A turbo burst, a Class 2 green laser behind a hardware safety switch, USB-C charging, two small LiPo cells (about 800 mAh) and Bluetooth: a web page on a phone or computer shows the battery and switches the light. Firmware is installed from a web page through the light's own USB-C port.

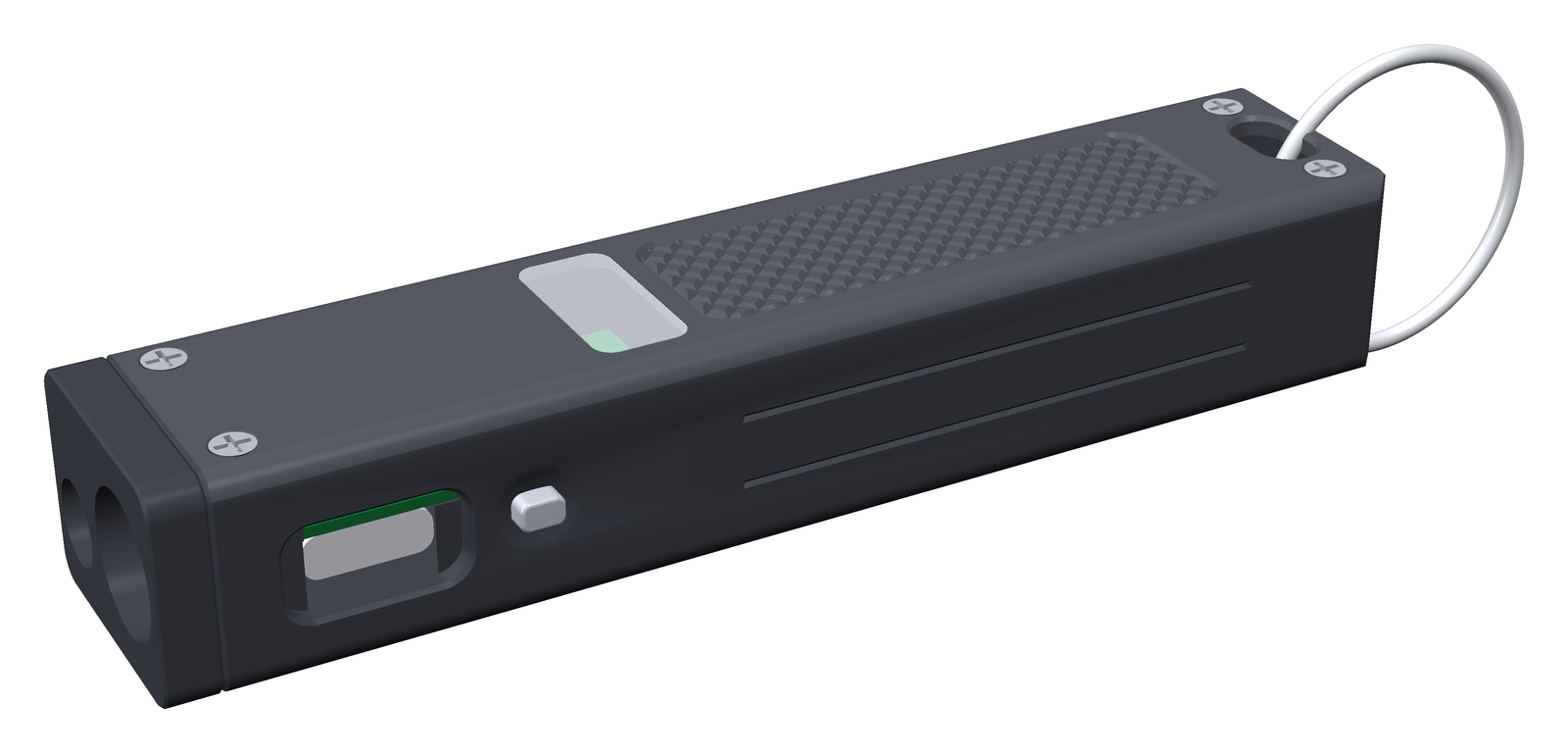

Aurora main, from the project README
From the project README

Main components on the Aurora main

TP4057TLV62585DRLRTLV333IDCKRESP32-C3-MINI-1-N4RT9080-33GJ5

Aurora main bill of materials (BOM)

60 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4057
U1
1
TLV62585DRLR
U2
1
TLV333IDCKR
U3
1
ESP32-C3-MINI-1-N4
U4
1
RT9080-33GJ5
U5
1
AO3401A
Q1
3
2N7002W
Q2, Q4, Q5
1
TYPE-C-31-M-12
J1
1
20mΩ
RS1
1
C77130
100k B4250
RT1
1
SKRTLAE010
S1
1
MSK12C02
S2
1
NH-B1010RGBT-HF
LED3
1
ESD5Z5.0T1G
D1
1
1UH
1uH
L1
1
10UF
10uF
C1
3
10UF
10uF
C2, C13, C15
2
22UF
22uF
C5, C8
5
100NF
100nF
C7, C10, C16, C19, C20
1
22PF
22pF
C9
Show 13 more
QtyPartRefs
1
10NF
10nF
C11
4
1UF
1uF
C12, C14, C17, C18
2
5.1K
5.1k
R1, R2
1
3.3K
3.3k
R3
7
100K
100k
R7, R11, R15, R17, R20, R26, R29
6
10K
10k
R8, R9, R13, R18, R21, R22
1
200K
200k
R10
1
47K
47k
R12
1
2.2K
2.2k
R14
1
2k
R16
2
1k
R19, R23
2
100Ω
R24, R25
2
1M
R27, R28

Aurora main design files

The KiCad project lives in the DomPka/LuxLibre repository on GitHub; these links point at the commit this page was built from.

Aurora main: common questions

What microcontroller does the Aurora main use?

The Aurora main is built around the ESP32-C3-MINI-1-N4, from the ESP32 family.

How big is the Aurora main PCB?

The Aurora main measures 24 × 16.5 mm, has 4 copper layers and is 0.8 mm thick.

How many components are on the Aurora main?

60 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Aurora main design files?

From the DomPka/LuxLibre repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Aurora main design in my own project?

Yes, under the terms of its GPL-3.0 license, which DomPka chose for the repository.

Can I test firmware for the Aurora main without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
