Rebound PCB layout, top view — open source ESP32 board by DynamicWhiteHat

About the Rebound PCB

Rebound is an open source ESP32 PCB design by DynamicWhiteHat, published on GitHub. It is a 4-layer board measuring 41.8 × 49.6 mm, with 118 components from 50 distinct parts.

Its main chip is the ESP32-S3, from the ESP32 family. Other key parts include the TPS7A20XXXDBV, BQ24075RGT, AD5941BCPZ, AP2112K-3.3 and USBLC6-2P6. By type, the board carries 48 capacitors, 28 resistors, 15 inductors, 11 ICs, 5 connectors and 3 switches.

It belongs with the power & battery designs in this gallery.

From the project

Low-Cost Dysphagia Patch for Post-Stroke Patients

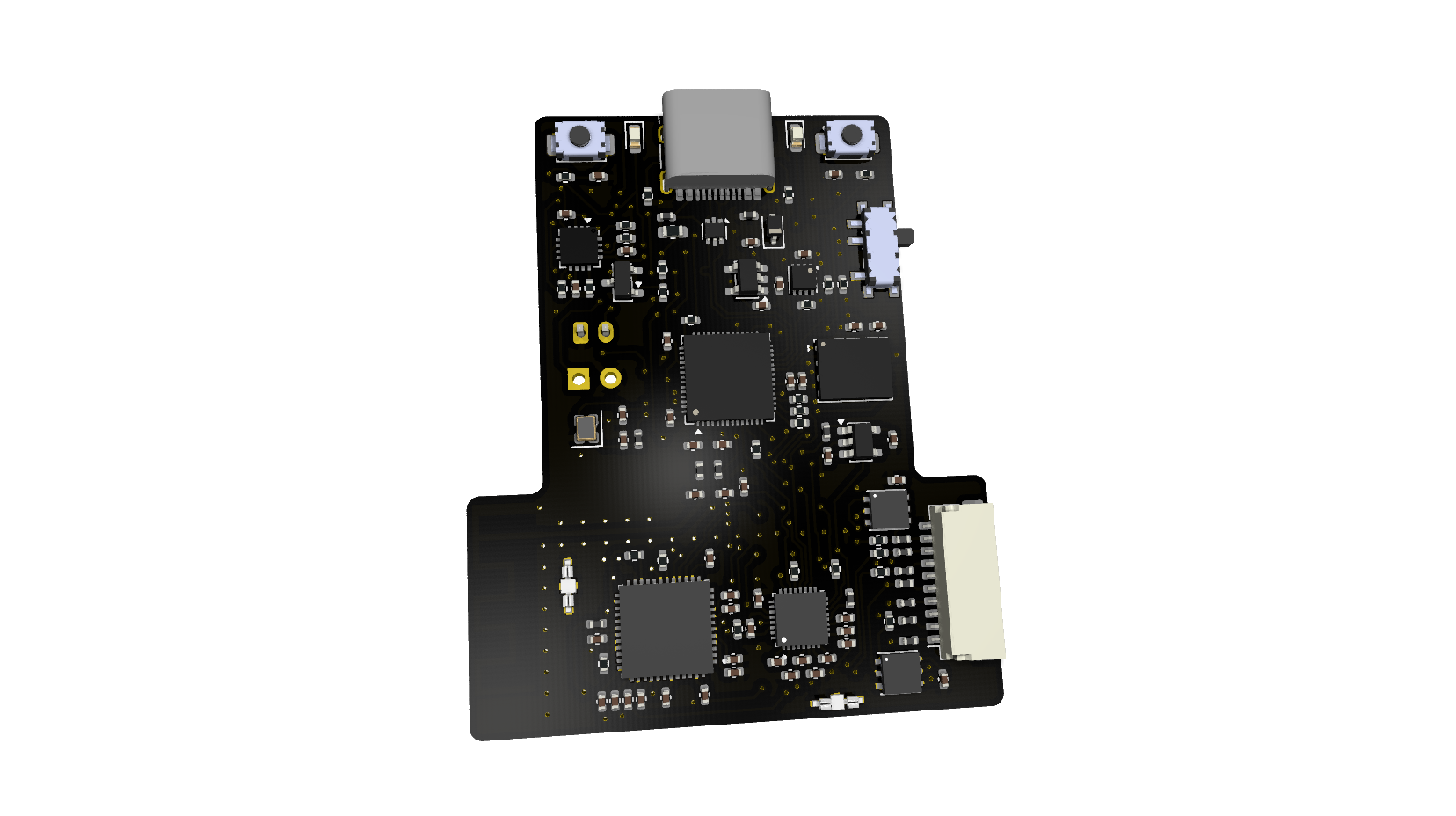

Rebound, from the project README
From the project README

Main components on the Rebound

ESP32-S3TPS7A20XXXDBVBQ24075RGTAD5941BCPZAP2112K-3.3USBLC6-2P6MAX17048W25Q128JVPADS1292IRSMTTPD4E001DRSR.

Rebound bill of materials (BOM)

118 components, 50 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3
U1
1
TPS7A20XXXDBV
TPS7A20xxxDBV
U2
1
BQ24075RGT
U3
1
AD5941BCPZ
U4
1
AP2112K-3.3
U5
1
USBLC6-2P6
U6
1
MAX17048
U7
1
W25Q128JVP
U8
1
ADS1292IRSMT
U10
2
TPD4E001DRSR.
U12, U13
1
2N7002
Q1
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
CONN_01X02_SOCKET
Conn_01x02_Socket
J2
1
CONN_01X10
Conn_01x10
J5
2
S0941-46R
J9, J10
1
Antenna_Dipole
AE1
1
C914092
750 mA
F1
2
SW_Push
SW1, SW3
1
C109335
SW_SPDT
SW2
Show 30 more
QtyPartRefs
1
Thermistor_NTC
TH1
1
C151996
D
D1
2
LED
D2, D3
2
2.2NH
2.2nH
L1, L5
1
24NH
24nH
L2
12
BLM15PX121SN1D
L3, L4, L6, L7, L8, L9, L10, L11 +4
3
10UF
10uF
C1, C7, C39
11
100NF
100nF
C2, C3, C4, C5, C6, C10, C13, C19 +3
2
12PF
12pF
C8, C9
4
0.1UF
0.1uF
C11, C34, C40, C46
7
1UF
1uF
C12, C17, C18, C23, C33, C41, C42
4
4.7UF
4.7uF
C14, C15, C16, C28
2
3.3PF
3.3pF
C21, C22
4
0.47UF
0.47uF
C24, C25, C26, C27
1
15NF
15nF
C29
3
470NF
470nF
C30, C31, C32
2
47PF
47pF
C35, C36
1
470PF
470pF
C37
1
1.5NF
1.5nF
C38
3
4.7NF
4.7nF
C43, C44, C48
6
5.1K
5.1k
R1, R2, R3, R7, R13, R14
1
47K
47k
R4
1
1.5K
1.5k
R5
1
3.9K
3.9k
R6
4
10K
10k
R8, R10, R15, R24
2
100R
R9, R30
4
100K
R11, R25, R26, R28
2
1K
R12, R16
6
33
R20, R21, R22, R23, R29, R31
1
1M
R27

Rebound design files

The KiCad project lives in the DynamicWhiteHat/Rebound repository on GitHub; these links point at the commit this page was built from.

Rebound: common questions

What microcontroller does the Rebound use?

The Rebound is built around the ESP32-S3, from the ESP32 family.

How big is the Rebound PCB?

The Rebound measures 41.8 × 49.6 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the Rebound?

118 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rebound design files?

From the DynamicWhiteHat/Rebound repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rebound design in my own project?

The repository has no license, so all rights stay with DynamicWhiteHat. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rebound without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
