About the Lboard2 PCB

Lboard2 is an open source STM32 PCB design by electrodyssey, published on GitHub under the LGPL-3.0 license. It is a 4-layer board measuring 203.2 × 101.6 mm, with 214 components from 74 distinct parts.

Its main chip is the STM32F401RBTx, from the STM32 family. Other key parts include the CDCE913PW, M25P16-VME, USBLC6-2SC6, NCP1117-3.3_SOT223 and AMS1117-ADJ. By type, the board carries 106 capacitors, 51 resistors, 14 ICs, 5 crystals, 5 LEDs and 4 inductors.

From the project

experimental Spartan-6 sound processing board with XC6SLX9-TQG144 and TLV320AIC3204

experimental sound processing board with XC6SLX9-TQG144 and TLV320AIC3204

Currently board is capable of receiving and sending the audio samples with a codec and passes the loopback test from FPGA pins.

FPGA bitstream config is stored inside the STM32F401RE internal flash.

Quick and dirty firmware loader is here: https://github.com/electrodyssey/lboard2flashboot

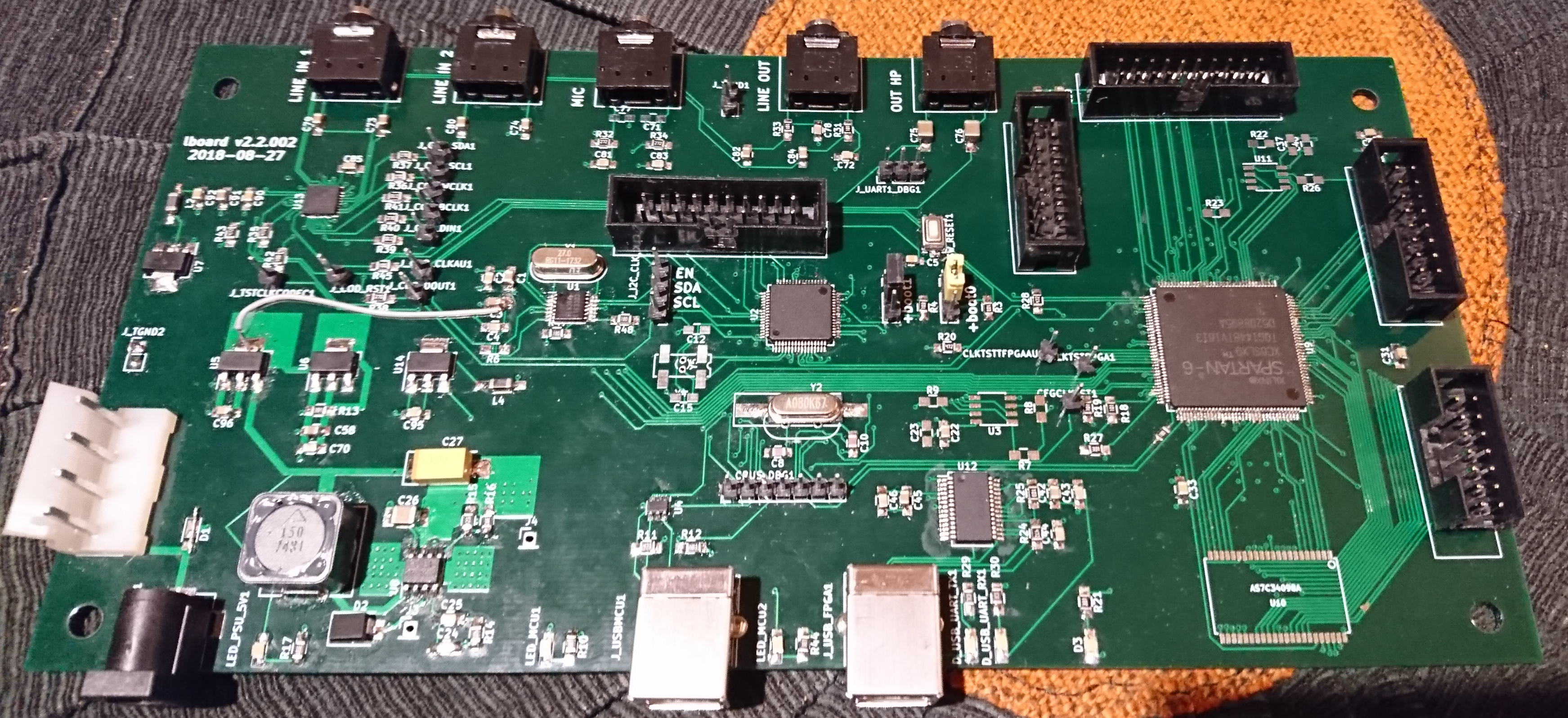

Lboard2, from the project README
From the project README

Main components on the Lboard2

Lboard2 bill of materials (BOM)

214 components, 74 distinct parts.

QtyPartRefs
1
CDCE913PW
U1
1
STM32F401RBTx
U2
2
M25P16-VME
U3, U11
1
USBLC6-2SC6
U4
1
NCP1117-3.3_SOT223
U5
1
AMS1117-ADJ
U6
1
AMS1117-33
U7
1
L5973D
U8
1
XC6SLX9-TQG144
U9
1
AS7C34098A
U10
1
FT232RL
U12
1
TLV320AIC3204
U13
1
AMS1117-1.8
U14
1
27MHz
Y1
1
8MHz
Y2
1
DNP
Y3
1
ABS25-32.768KHZ-6-T
Y4
1
DNP32
Y5
1
Conn_01x04
J2
1
PSU_SYNC
J3
Show 54 more
QtyPartRefs
1
PSU_REF
J4
2
Jumper_NC_Dual
JP1, JP2
5
Audio-Jack-3
J_AIN_LINE1, J_AIN_LINE2, J_AIN_MIC1, J_AOUT_HP1, J_AOUT_LINE1
1
Conn_01x07_Male
J_CBUS_DBG1
1
Barrel_Jack
J_DC_BARREL1
1
Conn_02x07_Odd_Even
J_FPGA_JTAG1
1
Conn_01x04
J_I2C_CLK_DBG1
2
Conn_02x10_Odd_Even
J_MCU_JTAG1, J_X3
2
Conn_01x05
J_SPIFLASHF_DBG2, J_SPIFLASH_DBG1
2
TEST_2P
J_TGND1, J_TGND2
1
Conn_01x03
J_UART1_DBG1
2
USB_B
J_USBMCU1, J_USB_FPGA1
2
Conn_02x08_Odd_Even
J_X0, J_X2
1
SW_Push
SW_RESET1
5
LED
D_USB_UART_RX1, D_USB_UART_TX1, LED_MCU1, LED_MCU2, LED_PSU_5V1
1
DFLS1100-7
D1
1
D_Schottky
D2
1
LED
D3
3
Ferrite_Bead
L1, L2, L4
1
15uH
L3
23
1uF
C1, C3, C6, C13, C16, C18, C22, C37 +15
40
0.1
C2, C4, C5, C7, C9, C17, C19, C20 +32
2
20pF
C8, C10
2
2.2uF
C11, C14
2
4.3pF
C12, C15
1
220pF
C24
1
22nF
C25
1
10uF x 25v
C26
1
330uF
C27
11
10uF
C30, C31, C32, C33, C85, C86, C87, C88 +3
6
1uF
C34, C36, C39, C42, C45, C93
6
0.1
C35, C38, C41, C43, C46, C94
2
DNP
C71, C77
2
47nF
C72, C78
4
0.47uF
C73, C74, C79, C80
2
47uF
C75, C76
13
10k
R1, R2, R3, R4, R5, R8, R9, R22 +5
1
10k DNP
R6
1
DNP
R7
2
120
R10, R44
1
47k
R11
1
68k
R12
1
390
R13
3
4.7k
R14, R35, R43
1
12k
R15
1
3.9k
R16
1
220
R17
4
100
R18, R19, R31, R33
3
4k7
R20, R24, R28
4
330
R21, R27, R29, R30
2
2.7k
R32, R34
6
27
R36, R37, R38, R39, R40, R41
3
10
R42, R45, R51
3
18
R46, R47, R48

Lboard2 design files

The KiCad project lives in the electrodyssey/lboard2 repository on GitHub; these links point at the commit this page was built from.

Lboard2: common questions

What microcontroller does the Lboard2 use?

The Lboard2 is built around the STM32F401RBTx, from the STM32 family.

How big is the Lboard2 PCB?

The Lboard2 measures 203.2 × 101.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Lboard2?

214 components, from 74 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lboard2 design files?

From the electrodyssey/lboard2 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Lboard2 design in my own project?

Yes, under the terms of its LGPL-3.0 license, which electrodyssey chose for the repository.

Can I test firmware for the Lboard2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
