Bluey PCB layout, top view — open source Nordic nRF board by electronut

About the Bluey PCB

Bluey is an open source Nordic nRF PCB design by electronut, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 59.2 × 40 mm, with 72 components from 44 distinct parts.

Its main chip is the nrf52832, from the Nordic nRF family. Other key parts include the CP2104, AP2112K, HDC1010, APDS9300-020 and LSM6DS3. By type, the board carries 24 capacitors, 17 resistors, 9 ICs, 5 connectors, 3 switches and 3 inductors.

It belongs with the iot & wireless, sensors and dev boards & breakouts designs in this gallery.

From the project

Nordic nRF52832 BLE development board with sensors.

Bluey is an Open Source BLE (Bluetooth Low Energy) development board with Temperature, Humidity, Ambient Light and Accelerometer sensors.

Bluey uses the Nordic nRF52832 BLE SoC (System on a Chip) which has an ARM Cortex-M4F CPU and a 2.4 GHz radio that supports BLE and other proprietary wireless protocols. It also supports NFC, and in fact the board comes with a built-in NFC PCB antenna.

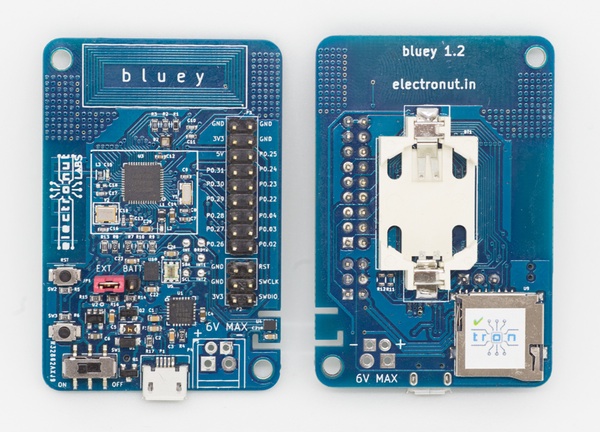

Bluey, from the project README
From the project README

Main components on the Bluey

CP2104AP2112Knrf52832HDC1010APDS9300-020LSM6DS3NFC_AntennaRF_AntennaMicroSD

Bluey bill of materials (BOM)

72 components, 44 distinct parts.

QtyPartRefs
1
CP2104
U1
1
AP2112K
U2
1
nrf52832
U3
1
HDC1010
U4
1
APDS9300-020
U5
1
LSM6DS3
U6
1
NFC_Antenna
U7
1
RF_Antenna
U8
1
MicroSD
U9
2
DMG2307L
Q1, Q2
1
32.768KHz
Y1
1
32MHz
Y2
1
USB_OTG
P1
1
JTAG
P2
1
CONN_02X09
P3
1
JST
P4
1
3.5mm ST
P5
1
CR2032
BT1
1
FUSE
F1
2
TEST_1P
INT1, INT2
Show 24 more
QtyPartRefs
1
JUMPER3
JP1
1
ON/OFF Switch
SW1
2
SW_PUSH
SW2, SW3
1
MBR120
D1
1
Led_RGB_CA
D2
1
10uH
L1
1
15nH
L2
1
3.9nH
L3
3
1uF
C1, C3, C5
5
0.1uF
C2, C21, C22, C23, C26
2
4.7uF
C4, C14
1
2.2uF
C6
3
0.1uF
C7, C12, C13
4
12pF
C8, C9, C16, C19
2
TBD
C10, C11
1
0.8pF
C15
1
100pF
C17
1
NC
C18
1
1.0uF
C20
1
200R
R1
2
100R
R2, R3
3
4.7K
R4, R7, R8
9
10K
R5, R6, R9, R10, R13, R14, R15, R16 +1
2
0R
R11, R12

Bluey design files

The KiCad project lives in the electronut/ElectronutLabs-bluey repository on GitHub; these links point at the commit this page was built from.

Bluey: common questions

What microcontroller does the Bluey use?

The Bluey is built around the nrf52832, from the Nordic nRF family.

How big is the Bluey PCB?

The Bluey measures 59.2 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bluey?

72 components, from 44 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bluey design files?

From the electronut/ElectronutLabs-bluey repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Bluey design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which electronut chose for the repository.

Can I test firmware for the Bluey without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
