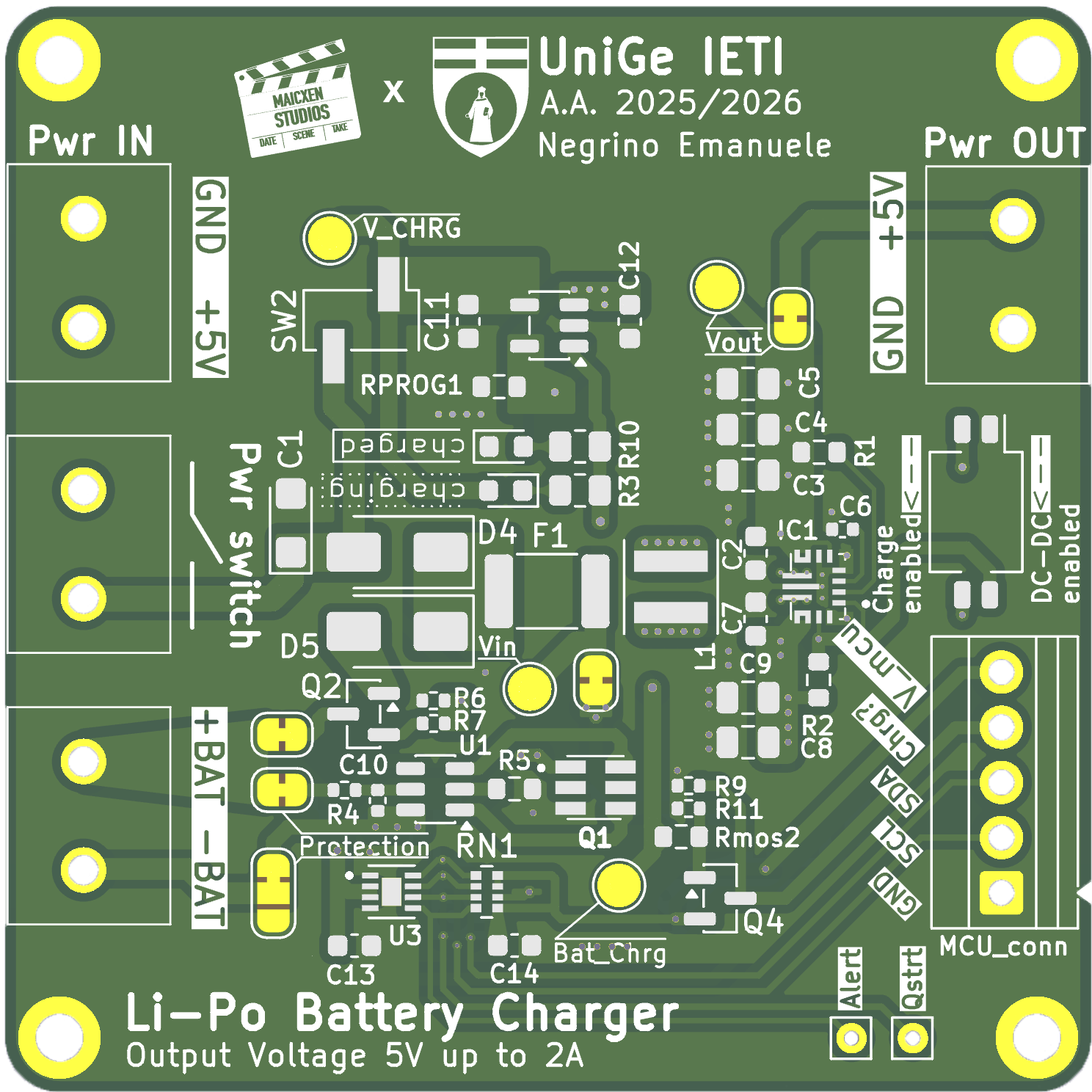

Power Management Unit Tesi PCB layout, top view — open source board by EmaNeg
Simulate this board

About the Power Management Unit Tesi PCB

Power Management Unit Tesi is an open source PCB design by EmaNeg, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 50 mm, with 49 components from 38 distinct parts.

Other key parts include the TPS63070RNMR, DW01A, MCP73831-2-OT and MAX17048G_T10. By type, the board carries 14 capacitors, 11 resistors, 4 ICs, 4 connectors, 3 transistors and 3 switches.

It belongs with the power & battery designs in this gallery.

From the project

PMU (Power Management Unit) compatta per sistemi embedded. Integra Power Path automatico, ricarica Li-Po 1S, conversione DC-DC Buck-Boost a 5V e monitoraggio I2C tramite MAX17048. Progetto di Tesi in Ingegneria Elettronica.

Questo repository contiene tutti i file di progettazione hardware, le simulazioni e le librerie software per una Power Management Unit (PMU) integrata, sviluppata come progetto di Tesi di Laurea Triennale in Ingegneria Elettronica e Tecnologie dell'Informazione presso l'Università degli Studi di Genova.

Il modulo (dimensioni 50x50 mm su PCB a due strati) è progettato per superare il divario tecnologico tra le tensioni variabili delle batterie ai Polimeri di Litio (Li-Po) e le specifiche di alimentazione stabili a 5V richieste dai carichi digitali, garantendo continuità di servizio e…

Power Management Unit Tesi, from the project README
From the project README

Main components on the Power Management Unit Tesi

TPS63070RNMRDW01AMCP73831-2-OTMAX17048G_T10

Power Management Unit Tesi bill of materials (BOM)

49 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS63070RNMR
IC1
1
DW01A
U1
1
MCP73831-2-OT
U2
1
MAX17048G_T10
U3
1
FS8205
Q1
1
DMP1045U-7
Q2
1
BSS84
Q4
1
Ext_power_conn
J1
1
Bat_conn
J2
1
Out_conn
J3
1
MCU_conn
J4
1
4A
F1
1
2k
RPROG1
1
1k
Rmos2
1
Power_sw_conn
SW1
1
Switch_pins
SW2
1
SW_DIP_X02
SW_DIP_x02
SW3
1
Alert
TP1
1
Qstart
TP3
1
LED_amber
LED_A1
Show 18 more
QtyPartRefs
1
LED_green
LED_G1
2
SS33
D4, D5
1
1.5U
1.5u
L1
1
10U
10u
C1
2
10U
10u
C2, C7
3
22U
22u
C3, C4, C5
1
100N
100n
C6
2
10U
10u
C8, C9
1
0.1U
0.1u
C10
2
4.7U
4.7u
C11, C12
2
1u
C13, C14
1
100K
100k
R1
1
10K
10k
R2
2
470R
R3, R10
2
100R
R4, R7
1
1k
R5
3
100K
100k
R6, R9, R11
1
10K
10k
RN1

Power Management Unit Tesi design files

The KiCad project lives in the EmaNeg/Power_Management_Unit_Tesi repository on GitHub; these links point at the commit this page was built from.

Power Management Unit Tesi: common questions

How big is the Power Management Unit Tesi PCB?

The Power Management Unit Tesi measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Power Management Unit Tesi?

49 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Power Management Unit Tesi design files?

From the EmaNeg/Power_Management_Unit_Tesi repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Power Management Unit Tesi design in my own project?

Yes, under the terms of its MIT license, which EmaNeg chose for the repository.
