Dspod u3c5 PCB layout, top view — open source STM32 board by emeb

About the Dspod u3c5 PCB

Dspod u3c5 is an open source STM32 PCB design by emeb, published on GitHub under the MIT license. It is a 4-layer board measuring 26.4 × 41.7 mm, with 49 components from 26 distinct parts.

Its main chip is the STM32U3C5RIT6, from the STM32 family. Other key parts include the SI5351A, XC6222B331MR-G, APS6404L-3SQR-SN, NAU88C22 and Small Avatar / Logo. By type, the board carries 23 capacitors, 7 resistors, 6 ICs, 5 connectors, 2 crystals and 2 switches.

It belongs with the audio designs in this gallery.

From the project

A family of boards for Eurorack DSP audio

The dspod_u3c5 is a daughterboard comprising an STM32U3C5RI MCU with PSRAM, USB and GPIO + audio I/O.

This board is a small 32-pin device with the following features:

STM32U3C5RI MCU - 64-pin LQFP package - Arm Cortex M33 CPU at 96MHz max clock - Unique "HSP" hardware signal processor - 640kB SRAM - 2MB Flash - USB, I2C, SPI, ADC, GPIO, etc on-chip USB-C connector, full-speed device and power SOIC-8 PSRAM Nuvoton NAU88C22 stereo codec Activity LED 3.3V level serial for debug / status SWD for flashing / debug 2-chl PDM mic input Flexible clock generator for performance testing and accurate…

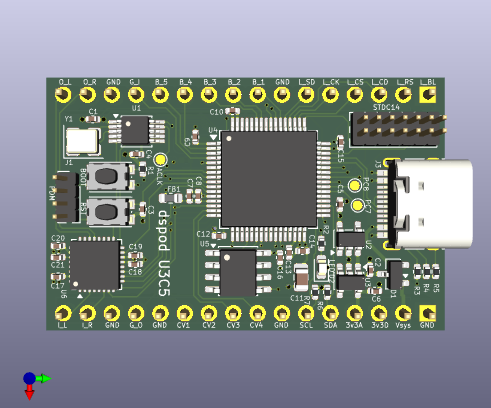

Dspod u3c5, from the project README
From the project README

Main components on the Dspod u3c5

SI5351AXC6222B331MR-GSTM32U3C5RIT6APS6404L-3SQR-SNNAU88C22Small Avatar / Logo

Dspod u3c5 bill of materials (BOM)

49 components, 26 distinct parts.

QtyPartRefs
1
SI5351A
U1
2
XC6222B331MR-G
U2, U3
1
STM32U3C5RIT6
U4
1
APS6404L-3SQR-SN
U5
1
NAU88C22
U6
1
Small Avatar / Logo
A1
1
FA-236 25.000MHz
Y1
1
7A-16.000MAAJ-T
Y2
1
Conn_01x04
J1
1
STDC14
J2
1
USB_C_Receptacle_USB2.0
J3
2
Conn_01x16
J4, J5
2
SW_Push
SW1, SW2
1
PMEG2005CT,215
D1
1
LED Green
D2
1
1k
FB1
10
0.1uf
C1, C3, C4, C8, C9, C10, C12, C14 +2
9
4.7uf
C2, C5, C6, C13, C17, C18, C19, C20 +1
1
1uf
C7
1
10uf
C11
Show 6 more
QtyPartRefs
2
29pf
C22, C23
1
10k
R1
1
1k
R2
2
5k1
R3, R4
1
1M
R5
2
4k7
R6, R7

Dspod u3c5 design files

The KiCad project lives in the emeb/dspod repository on GitHub; these links point at the commit this page was built from.

Dspod u3c5: common questions

What microcontroller does the Dspod u3c5 use?

The Dspod u3c5 is built around the STM32U3C5RIT6, from the STM32 family.

How big is the Dspod u3c5 PCB?

The Dspod u3c5 measures 26.4 × 41.7 mm, has 4 copper layers and is 1.5313 mm thick.

How many components are on the Dspod u3c5?

49 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dspod u3c5 design files?

From the emeb/dspod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dspod u3c5 design in my own project?

Yes, under the terms of its MIT license, which emeb chose for the repository.

Can I test firmware for the Dspod u3c5 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
