Dspod module
About the Dspod module
Dspod module is an open source PCB design by emeb, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 101.6 mm, with 92 components from 34 distinct parts.
Other key parts include the LM4040DBZ-5, MCP6004, R-78E5.0-1.0, 74AHCT1G125 and TL074. By type, the board carries 35 resistors, 26 capacitors, 13 connectors, 6 ICs, 3 diodes and 2 switches.
It belongs with the audio designs in this gallery.
From the project

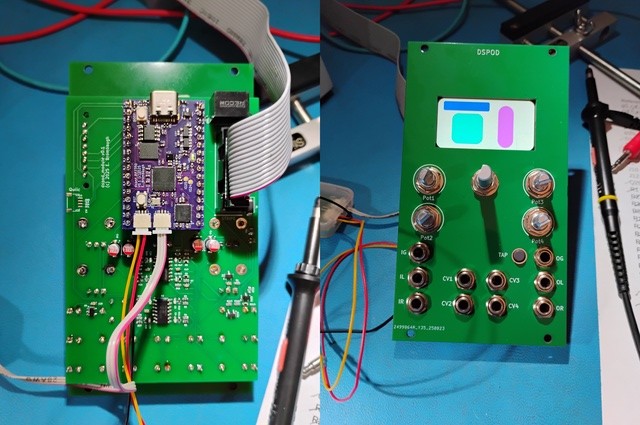

A family of boards for Eurorack DSP audio
Main components on the Dspod module
Dspod module bill of materials (BOM)
92 components, 34 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM4040DBZ-5 | SOT-23 | U1 |
| 1 | MCP6004 | SOIC-14_3.9x8.7mm_P1.27mm | U2 |
| 1 | R-78E5.0-1.0 | Converter_DCDC_RECOM_R-78E-0.5_THT | U3 |
| 1 | 74AHCT1G125 | SOT-23-5 | U4 |
| 1 | TL074 | SOIC-14_3.9x8.7mm_P1.27mm | U5 |
| 1 | ~ | dspod | U6 |
| 1 | MMBT3904 | SOT-23 | Q201 |
| 10 | AudioJack2_SwitchT | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical_CircularHoles | J1, J2, J3, J4, J6, J7, J8, J9 +2 |
| 1 | Conn_02x08_Odd_Even | con16_2X8_S4_TEC | J5 |
| 1 | LCD | 1.9_IPS_LCD | J10 |
| 1 | JST SH-4 (Qwiic) | JST_SH_SM04B-SRSS-TB_04x1.00mm_Angled | J12 |
| 4 | 10k | Potentiometer_TT_P0915N | RV1, RV2, RV3, RV4 |
| 1 | encoder_en11 | ENC_11 | S1 |
| 1 | SW_Push | SW_PUSH_6mm | SW1 |
| 2 | D | D_SMA | D1, D2 |
| 1 | BAT54S | SOT-23 | D201 |
| 2 | 220 | C_0805_2012Metric | FB1, FB2 |
| 5 | 0.1uf | C_0603_1608Metric | C1, C2, C18, C19, C26 |
| 6 | 330pf | C_0603_1608Metric | C3, C4, C5, C6, C22, C23 |
| 4 | 0.01uf | C_0603_1608Metric | C7, C8, C24, C25 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 220pf | C_0603_1608Metric | C9, C10 |
| 4 | 1uf | CP_Elec_4x5.3 | C11, C12, C15, C16 |
| 3 | 1uf | C_0603_1608Metric | C13, C14, C17 |
| 2 | 68pf | C_0603_1608Metric | C20, C21 |
| 1 | 1.5k | R_0603_1608Metric | R1 |
| 8 | 100k | R_0603_1608Metric | R2, R4, R6, R7, R20, R21, R24, R26 |
| 4 | 49.9k | R_0603_1608Metric | R3, R5, R25, R27 |
| 2 | 60.4k | R_0603_1608Metric | R8, R9 |
| 4 | 33k | R_0603_1608Metric | R10, R11, R28, R29 |
| 4 | 20k | R_0603_1608Metric | R12, R13, R18, R19 |
| 4 | 180 | R_0603_1608Metric | R14, R15, R30, R31 |
| 4 | 100 | R_0603_1608Metric | R16, R17, R22, R23 |
| 3 | 10k | R_0603_1608Metric | R217, R218, R220 |
| 1 | 60k | R_0603_1608Metric | R219 |
Dspod module design files
The KiCad project lives in the emeb/dspod repository on GitHub; these links point at the commit this page was built from.
Dspod module: common questions
How big is the Dspod module?
The Dspod module measures 68.6 × 101.6 mm, has 2 copper layers and is 1.555 mm thick.
How many components are on the Dspod module?
92 components, from 34 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dspod module design files?
From the emeb/dspod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dspod module design in my own project?
Yes, under the terms of its MIT license, which emeb chose for the repository.
