Dspod rp2350 PCB layout, top view — open source RP2040/RP2350 board by emeb

About the Dspod rp2350 PCB

Dspod rp2350 is an open source RP2040/RP2350 PCB design by emeb, published on GitHub under the MIT license. It is a 4-layer board measuring 26.4 × 41.7 mm, with 56 components from 26 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the XC6222B331MR-G, NAU88C22, W25Q32JVZPIQ and APS6404L-3SQR-SN. By type, the board carries 26 capacitors, 12 resistors, 6 ICs, 5 connectors, 2 switches and 2 diodes.

It belongs with the audio designs in this gallery.

From the project

A family of boards for Eurorack DSP audio

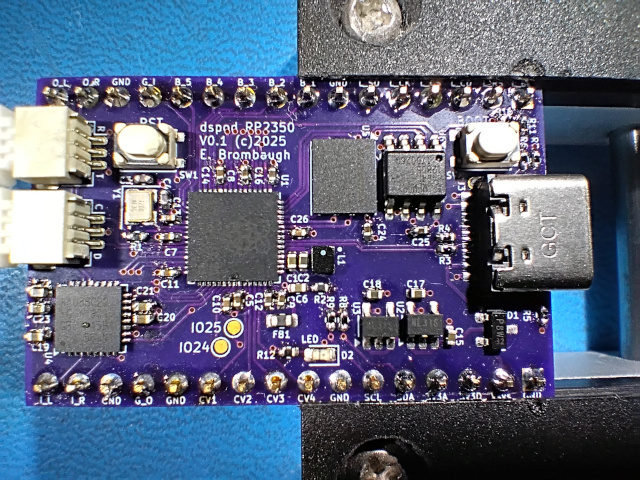

The dspod_rp2350 is a daughterboard comprising an RP2350A MCU with 4MB Flash, 8MB PSRAM, USB and GPIO + audio I/O.

This board is a small 32-pin device with the following features:

RP2350 MCU - 68-pin QFN package - Dual-core Arm Cortex M33 or Hazard3 RISC-V CPUs - 520kB SRAM - USB, I2C, SPI, ADC, GPIO, PIO, etc on-chip USB-C connector, full-speed host/device Nuvoton NAU88C22 stereo codec Misc GPIO - SPI - I2C - GPIO * Four channels of 3.3V multiplexed A/D input

Dspod rp2350, from the project README
From the project README

Main components on the Dspod rp2350

RP2350_60QFNXC6222B331MR-GNAU88C22W25Q32JVZPIQAPS6404L-3SQR-SN

Dspod rp2350 bill of materials (BOM)

56 components, 26 distinct parts.

QtyPartRefs
1
RP2350_60QFN
U1
2
XC6222B331MR-G
U2, U3
1
NAU88C22
U4
1
W25Q32JVZPIQ
U5
1
APS6404L-3SQR-SN
U6
1
ABM10-167-12.000MHZ-T3
Y1
1
SWD
J1
1
Serial
J2
1
USB_C_Receptacle_USB2.0
J3
2
Conn_01x16
J4, J6
2
SW_Push
SW1, SW2
1
PMEG2005CT,215
D1
1
LED Green
D2
1
1k
FB1
1
3.3u
L1
2
4.7uf
C1, C2
2
12pf
C3, C4
13
0.1uf
C5, C7, C8, C9, C10, C11, C12, C13 +5
9
4.7uf
C6, C15, C17, C18, C19, C20, C21, C22 +1
3
1k
R1, R11, R12
Show 6 more
QtyPartRefs
1
33
R2
2
27.5
R3, R4
2
5k1
R5, R6
1
1M
R7
2
4k7
R8, R9
1
10k
R10
