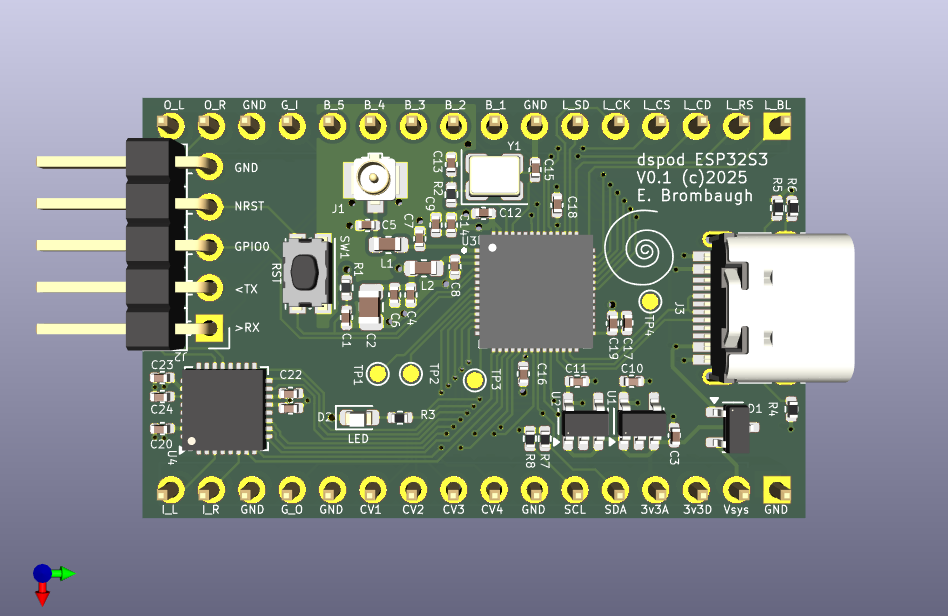

Dspod esp32s3 PCB layout, top view — open source ESP32 board by emeb

About the Dspod esp32s3 PCB

Dspod esp32s3 is an open source ESP32 PCB design by emeb, published on GitHub under the MIT license. It is a 4-layer board measuring 26.4 × 41.7 mm, with 48 components from 27 distinct parts.

Its main chip is the XC6222B331MR-G, from the ESP32 family. Other key parts include the ESP32-S3FH4R2, NAU88C22 and Small Avatar / Logo. By type, the board carries 24 capacitors, 8 resistors, 5 connectors, 4 ICs, 2 diodes and 2 inductors.

It belongs with the audio and iot & wireless designs in this gallery.

From the project

A family of boards for Eurorack DSP audio

The dspod_esp32s3 is a daughterboard comprising an ESP32 S3 MCU with 4MB Flash, 2MB PSRAM, USB and GPIO + audio I/O.

This board is a small 32-pin device with the following features:

ESP32S3H4R2 MCU - 56-pin QFN package - Dual-core Extensa LX7 CPUs - 512kB SRAM - USB, I2C, SPI, ADC, GPIO, WiFi, etc on-chip - 4MB flash in package - 2MB PSRAM in package USB-C connector, full-speed host/device Nuvoton NAU88C22 stereo codec Misc GPIO - SPI - I2C - GPIO Four channels of 3.3V multiplexed A/D input RF connector for off-board antenna

Dspod esp32s3, from the project README
From the project README

Main components on the Dspod esp32s3

XC6222B331MR-GESP32-S3FH4R2NAU88C22Small Avatar / Logo

Dspod esp32s3 bill of materials (BOM)

48 components, 27 distinct parts.

QtyPartRefs
2
XC6222B331MR-G
U1, U2
1
ESP32-S3FH4R2
U3
1
NAU88C22
U4
1
Small Avatar / Logo
A1
1
40MHz
Y1
1
CONN_CONUFL001-SMD-T_LNX
J1
1
Serial
J2
1
USB_C_Receptacle_USB2.0
J3
2
Conn_01x16
J4, J5
1
SW_Push
SW1
1
PMEG2005CT,215
D1
1
LED Green
D2
1
2.4nH
L1
1
2.2nH 500ma
L2
7
0.1uf
C1, C6, C8, C14, C16, C17, C18
1
10uf
C2
8
4.7uf
C3, C10, C11, C20, C21, C22, C23, C24
3
1uf
C4, C9, C19
1
2.6pf
C5
1
3pf
C7
Show 7 more
QtyPartRefs
1
100pf
C12
2
27pf
C13, C15
1
10k
R1
2
1k
R2, R3
2
5k1
R4, R5
1
1M
R6
2
4k7
R7, R8

Dspod esp32s3 design files

The KiCad project lives in the emeb/dspod repository on GitHub; these links point at the commit this page was built from.

Dspod esp32s3: common questions

What microcontroller does the Dspod esp32s3 use?

The Dspod esp32s3 is built around the XC6222B331MR-G, from the ESP32 family.

How big is the Dspod esp32s3 PCB?

The Dspod esp32s3 measures 26.4 × 41.7 mm, has 4 copper layers and is 1.5313 mm thick.

How many components are on the Dspod esp32s3?

48 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dspod esp32s3 design files?

From the emeb/dspod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dspod esp32s3 design in my own project?

Yes, under the terms of its MIT license, which emeb chose for the repository.

Can I test firmware for the Dspod esp32s3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
