ESP32 Trainer

EmersonEE·ESP32_Trainer·Development_Board_ESP32-V1.0/Development_Board_ESP32-V1.0.kicad_pcb

ESP32 Trainer PCB layout, top view — open source ESP32 board by EmersonEE

About the ESP32 Trainer PCB

ESP32 Trainer is an open source ESP32 PCB design by EmersonEE, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 91 components from 36 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the CH340G, AMS1117-3.3 and PC817. By type, the board carries 26 resistors, 16 diodes, 16 capacitors, 10 connectors, 6 ICs and 6 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

- 🔹 Introducción - 🔹 ESP32 Trainer - 🔹 ESP32 Trainer Pinout - 🔹 Materiales - 🔹 Diseño PCB - KiCad - 🔹 Proyectos Demostrativos

- 🔹 Introducción - 🔹 ESP32 Trainer - 🔹 ESP32 Trainer Pinout - 🔹 Materiales - 🔹 Diseño PCB - KiCad - 🔹 Proyectos Demostrativos

En el ámbito del diseño electrónico y el desarrollo de prototipos, existe una necesidad creciente de contar con herramientas integradas que simplifiquen el proceso de aprendizaje, experimentación y construcción de soluciones funcionales. Las placas de desarrollo convencionales suelen requerir múltiples módulos adicionales para realizar proyectos completos, lo que incrementa la complejidad, los costos y el tiempo de implementación.

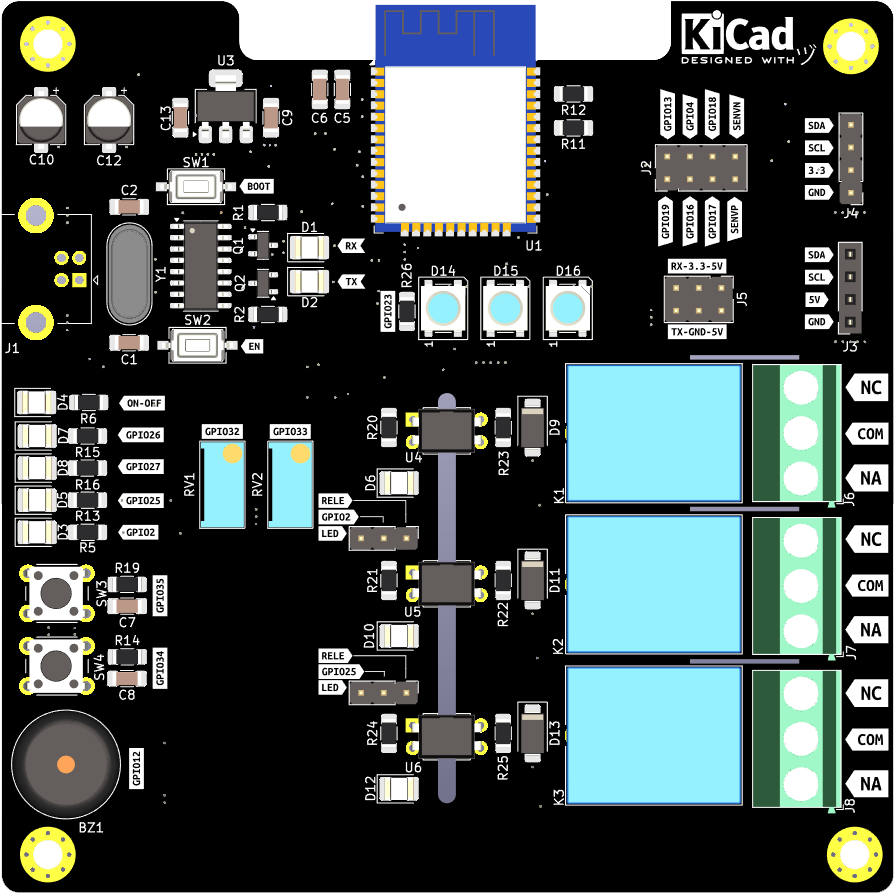

ESP32 Trainer, from the project README
From the project README

Main components on the ESP32 Trainer

ESP32-WROOM-32CH340GAMS1117-3.3PC817

ESP32 Trainer bill of materials (BOM)

91 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
CH340G
U2
1
AMS1117-3.3
U3
3
PC817
U4, U5, U6
6
MMBT3904
Q1, Q2, Q3, Q4, Q5, Q6
1
12MHZ
12MHz
Y1
1
USB_B
J1
1
GPIO
J2
1
OLED
J3
1
~
J4
1
~
J5
3
~
J6, J7, J8
2
~
J9, J10
1
Buzzer
BZ1
3
~
K1, K2, K3
2
100K
RV1, RV2
2
~
SW1, SW2
2
~
SW3, SW4
3
GREEN
D1, D7, D10
1
YELLOW
D2
Show 16 more
QtyPartRefs
3
BLUE
D3, D8, D12
3
RED
D4, D5, D6
3
SS24
D9, D11, D13
3
WS2812B
D14, D15, D16
2
22PF
22pF
C1, C2
7
0.1UF
0.1uF
C3, C4, C7, C8, C14, C15, C16
5
100NF
100nF
C5, C6, C9, C11, C13
2
100UF
100uF
C10, C12
6
10K
R1, R2, R7, R9, R11, R12
2
2K
R3, R4
1
470
R5
1
1K
R6
10
470
R8, R10, R13, R14, R15, R16, R19, R20 +2
4
2.2K
R17, R22, R23, R25
1
4.7K
R18
1
220
R26

ESP32 Trainer design files

The KiCad project lives in the EmersonEE/ESP32_Trainer repository on GitHub; these links point at the commit this page was built from.

ESP32 Trainer: common questions

What microcontroller does the ESP32 Trainer use?

The ESP32 Trainer is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the ESP32 Trainer PCB?

The ESP32 Trainer measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32 Trainer?

91 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32 Trainer design files?

From the EmersonEE/ESP32_Trainer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32 Trainer design in my own project?

The repository has no license, so all rights stay with EmersonEE. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32 Trainer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
