VNTR-65 PCB layout, top view — open source RP2040/RP2350 board by FanieVenter
Simulate this board

About the VNTR-65 PCB

VNTR-65 is an open source RP2040/RP2350 PCB design by FanieVenter, published on GitHub. It is a 2-layer board measuring 370 × 120 mm, with 126 components from 24 distinct parts.

Its main chip is the RP2350_80QFN, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3_SOT223, W25Q128JVS, CH221K, CD74HC4067M and SW_MX_HE. By type, the board carries 78 ICs, 24 capacitors, 17 resistors, 3 switches, 2 connectors and 1 crystal.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

A custom, over-engineered 65% keyboard featuring an RP2350 MCU, a hall effect key matrix, an analog slide potentiometer, an OLED display. Built for daily use thanks to HackClub.

A custom, over-engineered 65% keyboard featuring an RP2350 MCU, a hall effect key matrix, an analog slide potentiometer, and an OLED display. Built for daily use thanks to Hack Club.

Front and back of the PCB — the back has the silkscreen applied.

Full PCB wiring across all copper layers.

Full PCB wiring on the front copper layer.

Full PCB wiring on the back copper layer.

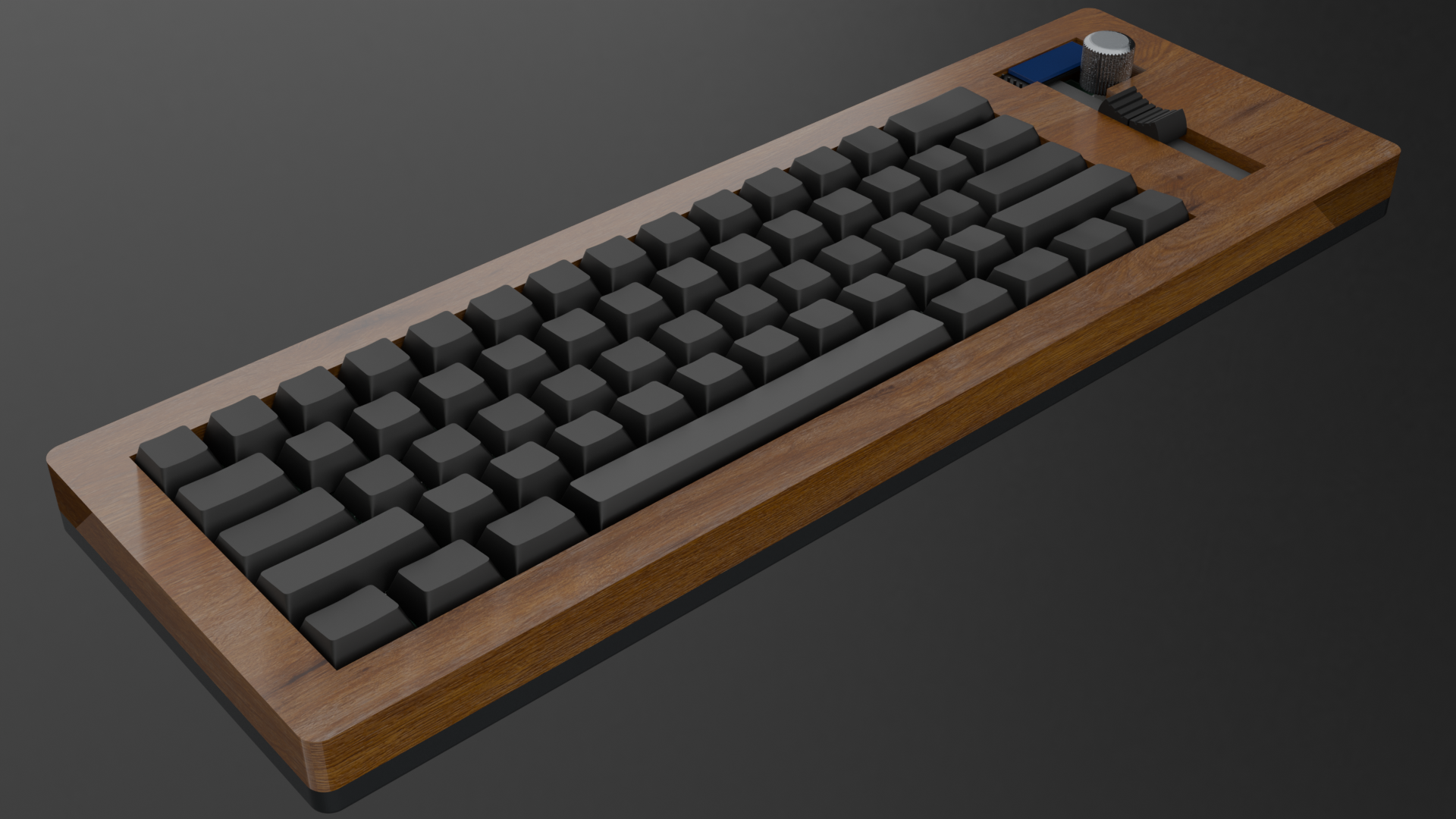

VNTR-65, from the project README
From the project README

Main components on the VNTR-65

RP2350_80QFNNCP1117-3.3_SOT223W25Q128JVSCH221KCD74HC4067MSW_MX_HEER_OLEDM0.91_1x-I2C

VNTR-65 bill of materials (BOM)

126 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2350_80QFN
U1
1
NCP1117-3.3_SOT223
U2
1
W25Q128JVS
U3
1
CH221K
U4
5
CD74HC4067M
U5, U6, U7, U8, U9
68
SW_MX_HE
U10, U11, U12, U13, U14, U15, U16, U17 +60
1
ER_OLEDM0.91_1x-I2C
U78
1
ABM8-272-T3
Y1
1
USB_C_Receptacle
J1
1
A1002WR-S-3P
J4
1
R_Potentiometer
RV1
2
SW_Push
SW1, SW2
1
RotaryEncoder
SW3
3
10u
C1, C5, C19
15
100n
C2, C8, C11, C12, C13, C14, C15, C16 +7
2
15p
C3, C4
4
4.7u
C6, C7, C9, C10
2
DNF
R1, R9
4
10k
R2, R5, R13, R14
5
1k
R3, R4, R6, R8, R15
Show 4 more
QtyPartRefs
1
33
R7
1
0
R10
2
27
R11, R12
2
4.7k
R16, R19

VNTR-65 design files

The KiCad project lives in the FanieVenter/VNTR-65 repository on GitHub; these links point at the commit this page was built from.

VNTR-65: common questions

What microcontroller does the VNTR-65 use?

The VNTR-65 is built around the RP2350_80QFN, from the RP2040/RP2350 family.

How big is the VNTR-65 PCB?

The VNTR-65 measures 370 × 120 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VNTR-65?

126 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the VNTR-65 design files?

From the FanieVenter/VNTR-65 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the VNTR-65 design in my own project?

The repository has no license, so all rights stay with FanieVenter. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the VNTR-65 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
