SmartPortSD SMD

FujiNetWIFI·fujinet-hardware·AppleII/DB-19M-Adapter-Male-Rev1/db19-to-idc20.kicad_pcb

SmartPortSD SMD PCB layout, top view — open source board by FujiNetWIFI

About the SmartPortSD SMD PCB

SmartPortSD SMD is an open source PCB design by FujiNetWIFI, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 41 × 20.6 mm, with 4 components from 4 distinct parts.

By type, the board carries 3 jumpers and 1 connector.

From the project

Schematics and design files for FujiNet hardware

A DB19 to IDC-20 adapter for use with Rev1 Devkit FujiApple boards, or Rev0 MacFuji boards. Uses cheap DB pins originally intended to be soldered on the end of wires and is housed in a 3D printed case.

IDC-20 2.54mm 2x10 Male Box Header - https://www.aliexpress.us/item/3256806042421204.html

DB 1.0mm pins, Wires Solder Model - https://www.aliexpress.us/item/3256802431271655.html

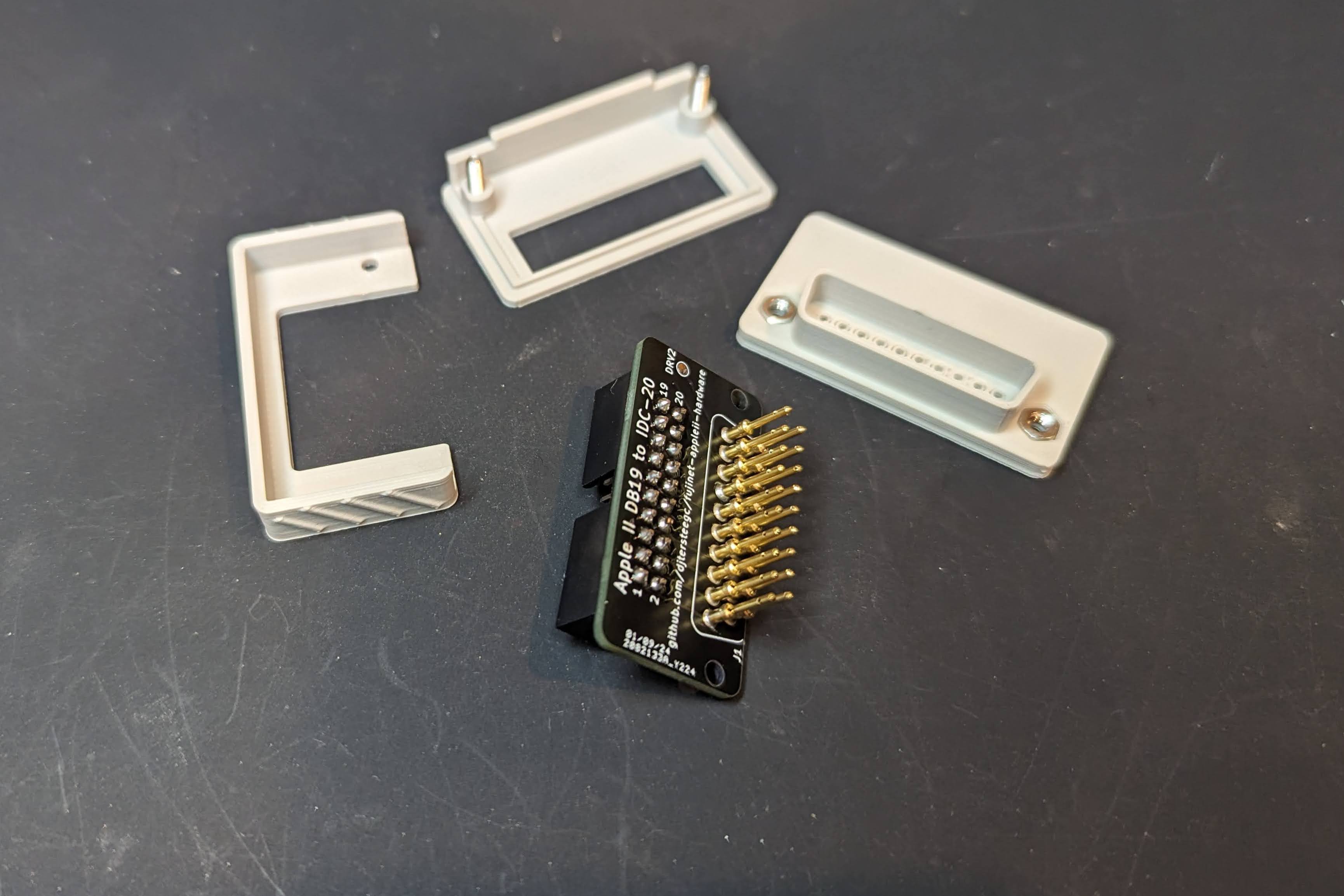

SmartPortSD SMD, from the project README
From the project README

SmartPortSD SMD bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C5178539
IDC-20
Bestcreate Technology Limited
J2
1
-12V
JP1
1
12V
JP2
1
PIN17
JP4

SmartPortSD SMD design files

The KiCad project lives in the FujiNetWIFI/fujinet-hardware repository on GitHub; these links point at the commit this page was built from.

SmartPortSD SMD: common questions

How big is the SmartPortSD SMD PCB?

The SmartPortSD SMD measures 41 × 20.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SmartPortSD SMD?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SmartPortSD SMD design files?

From the FujiNetWIFI/fujinet-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SmartPortSD SMD design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which FujiNetWIFI chose for the repository.
