FujiApple DevKit IDC-20

FujiNetWIFI·fujinet-hardware·AppleII/FujiApple-DevKit-IDC-20-Rev1/FujiApple-DevKit-IDC-20.kicad_pcb

FujiApple DevKit IDC-20 PCB layout, top view — open source ESP32 board by FujiNetWIFI
Simulate this board

About the FujiApple DevKit IDC-20 PCB

FujiApple DevKit IDC-20 is an open source ESP32 PCB design by FujiNetWIFI, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 41 × 56.9 mm, with 30 components from 24 distinct parts.

Its main chip is the C529589, from the ESP32 family. Other key parts include the C969151, C371970 and C3040644. By type, the board carries 16 resistors, 5 ICs, 3 diodes, 2 connectors, 2 switches and 2 capacitors.

It belongs with the iot & wireless designs in this gallery.

From the project

Schematics and design files for FujiNet hardware

This is the easiest to build of the Devkit series. It is built with 8.5mm high female headers allowing for easy removal of the ESP32 board to troubleshoot soldering issues with components placed under it.

There's an interactive BOM here, and CSV version with footprint info here. The interactive one is super useful when placing the SMD components.

You will also need two 19p 2.54mm female header strips. I buy the the 40p versions and cut them down to size.

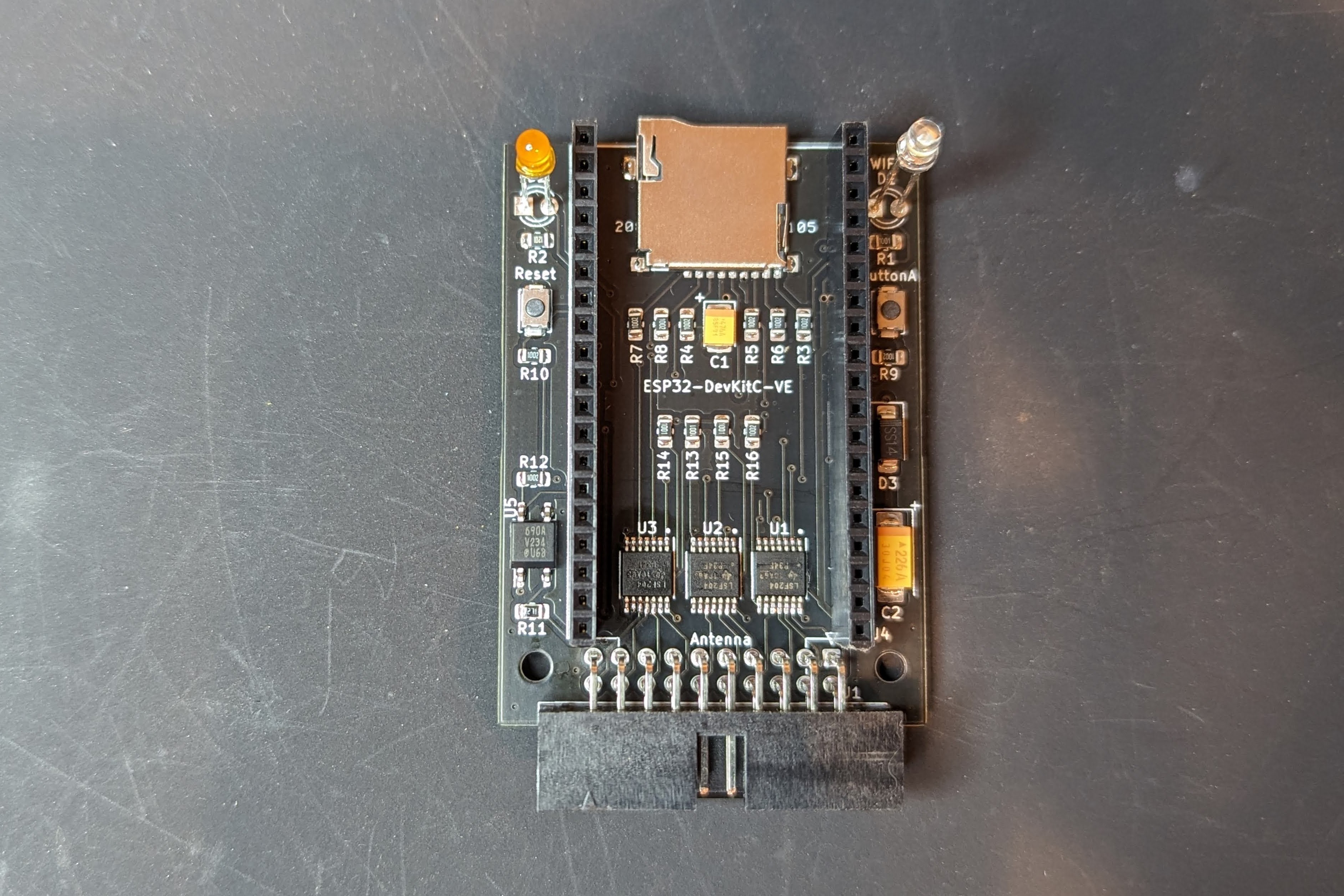

FujiApple DevKit IDC-20, from the project README
From the project README

Main components on the FujiApple DevKit IDC-20

C529589C969151C371970C3040644

FujiApple DevKit IDC-20 bill of materials (BOM)

30 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C529589
LSF0204PWR
Espressif
U1
1
C969151
LSF0204PWR
Silicon Labs
U2
1
C371970
LSF0204PWR
Texas Instruments
U3
1
C371970
ESP32-DevKitC-VE
Texas Instruments
U4
1
C3040644
SFH690AT
Torex
U5
1
7-745288-2
Conn_02x10_Odd_Even
J1
1
ST-TF-003A
P1
1
ButtonA
SW1
1
Reset
SW2
1
C157742
WIFI
SunLED
D1
1
C364550
BUS
OSRAM
D2
1
C364554
B140-E3
Rohm
D3
1
C23733
47uF 10v
C1
1
C23733
220uF 10v
C2
2
C25744
1K
R1, R2
5
C25744
10K
R3, R5, R6, R8, R12
1
C25862
10K
R4
1
C413086
10K
R7
1
C25896
10K
R9
1
C11702
10K
R10
Show 4 more
QtyPartRefs
1
C163478
270R
R11
2
C11702
1K
R13, R14
1
C25862
1K
R15
1
C413001
10K
R16

FujiApple DevKit IDC-20 design files

The KiCad project lives in the FujiNetWIFI/fujinet-hardware repository on GitHub; these links point at the commit this page was built from.

FujiApple DevKit IDC-20: common questions

What microcontroller does the FujiApple DevKit IDC-20 use?

The FujiApple DevKit IDC-20 is built around the C529589, from the ESP32 family.

How big is the FujiApple DevKit IDC-20 PCB?

The FujiApple DevKit IDC-20 measures 41 × 56.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FujiApple DevKit IDC-20?

30 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FujiApple DevKit IDC-20 design files?

From the FujiNetWIFI/fujinet-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FujiApple DevKit IDC-20 design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which FujiNetWIFI chose for the repository.

Can I test firmware for the FujiApple DevKit IDC-20 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
