Apple 68k FujiNet

FujiNetWIFI·fujinet-hardware·Apple-Mac-68k/Apple-68k-FujiNet-Rev0/Apple-68k-FujiNet-Rev0.kicad_pcb

Apple 68k FujiNet PCB layout, top view — open source RP2040/RP2350 board by FujiNetWIFI

About the Apple 68k FujiNet PCB

Apple 68k FujiNet is an open source RP2040/RP2350 PCB design by FujiNetWIFI, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 80.8 × 55.4 mm, with 22 components from 20 distinct parts.

Its main chip is the C529589, from the RP2040/RP2350 family. Other key parts include the C969151. By type, the board carries 6 resistors, 5 connectors, 3 switches, 3 diodes, 2 ICs and 2 capacitors.

From the project

Schematics and design files for FujiNet hardware

Note, this is an early prototype for Apple 68k Macs.

Design sourced from https://github.com/djtersteegc/Apple-68k-FujiNet

Schematic - https://djtersteegc.github.io/Apple-68k-FujiNet/Apple-68k-FujiNet-Rev0-Schematic.pdf

Interactive BOM - https://djtersteegc.github.io/Apple-68k-FujiNet/ibom-Rev0.html

C1 and C2 can be considered optional, board should work without them.

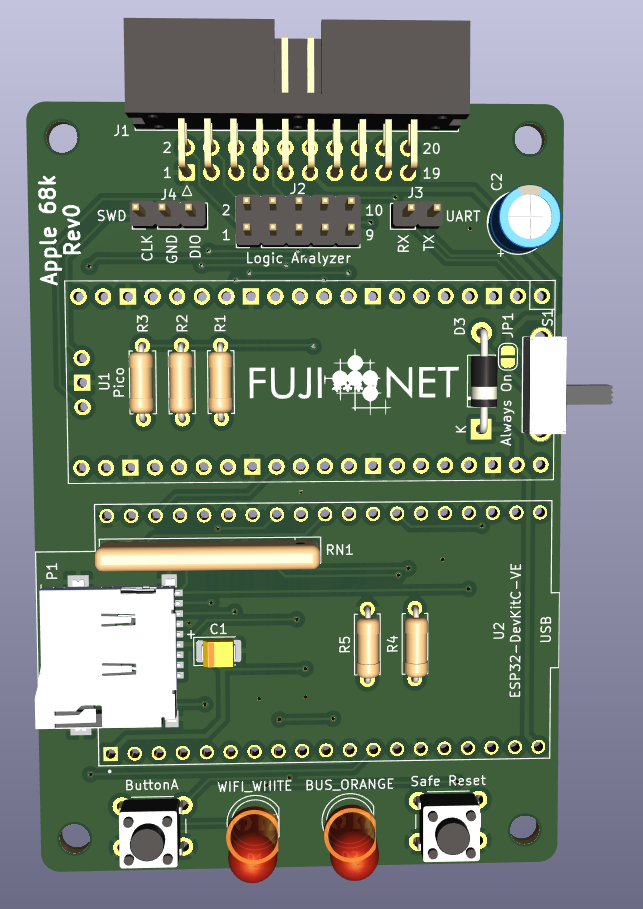

Apple 68k FujiNet, from the project README
From the project README

Main components on the Apple 68k FujiNet

C529589C969151

Apple 68k FujiNet bill of materials (BOM)

22 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C529589
Pico
Espressif
U1
1
C969151
ESP32-DevKitC-VE
Silicon Labs
U2
1
7-745288-2
Apple IDC-20
J1
1
C5178539
Logic Analyzer
Bestcreate Technology Limited
J2
1
AT60-202-2031
UART
J3
1
SWD
J4
1
ST-TF-003A
P1
1
Always On
JP1
1
C125034
EG1213
Alps
S1
1
ButtonA
SW1
1
Safe Reset
SW2
1
C157742
WIFI_WHITE
SunLED
D1
1
C364550
BUS_ORANGE
OSRAM
D2
1
C364554
1N5817
Rohm
D3
1
C23733
47uF 10v
C1
1
C23733
100uF 10V
C2
3
C25744
270R
R1, R2, R3
1
C25862
1K
R4
1
C25744
1K
R5
1
10K
RN1

Apple 68k FujiNet design files

The KiCad project lives in the FujiNetWIFI/fujinet-hardware repository on GitHub; these links point at the commit this page was built from.

Apple 68k FujiNet: common questions

What microcontroller does the Apple 68k FujiNet use?

The Apple 68k FujiNet is built around the C529589, from the RP2040/RP2350 family.

How big is the Apple 68k FujiNet PCB?

The Apple 68k FujiNet measures 80.8 × 55.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Apple 68k FujiNet?

22 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Apple 68k FujiNet design files?

From the FujiNetWIFI/fujinet-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Apple 68k FujiNet design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which FujiNetWIFI chose for the repository.

Can I test firmware for the Apple 68k FujiNet without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
