FujiApple DevKit SmartPort PCB layout, top view — open source ESP32 board by FujiNetWIFI

About the FujiApple DevKit SmartPort PCB

FujiApple DevKit SmartPort is an open source ESP32 PCB design by FujiNetWIFI, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 41 × 56.9 mm, with 29 components from 23 distinct parts.

Its main chip is the C529589, from the ESP32 family. Other key parts include the C969151, C371970 and C3040644. By type, the board carries 16 resistors, 5 ICs, 3 diodes, 2 switches, 2 capacitors and 1 connector.

It belongs with the iot & wireless designs in this gallery.

From the project

Schematics and design files for FujiNet hardware

This is the smallest of the Devkit Rev1 variants. I tend to build them in the short configuration to keep the case height as slim as possible when plugged in the Apple II. The downside of this is once you solder the ESP32 to the board, you will not be able to access the components under it for troubleshooting.

There's an interactive BOM here, and CSV version with footprint info here. The interactive one is super useful when placing the SMD components.

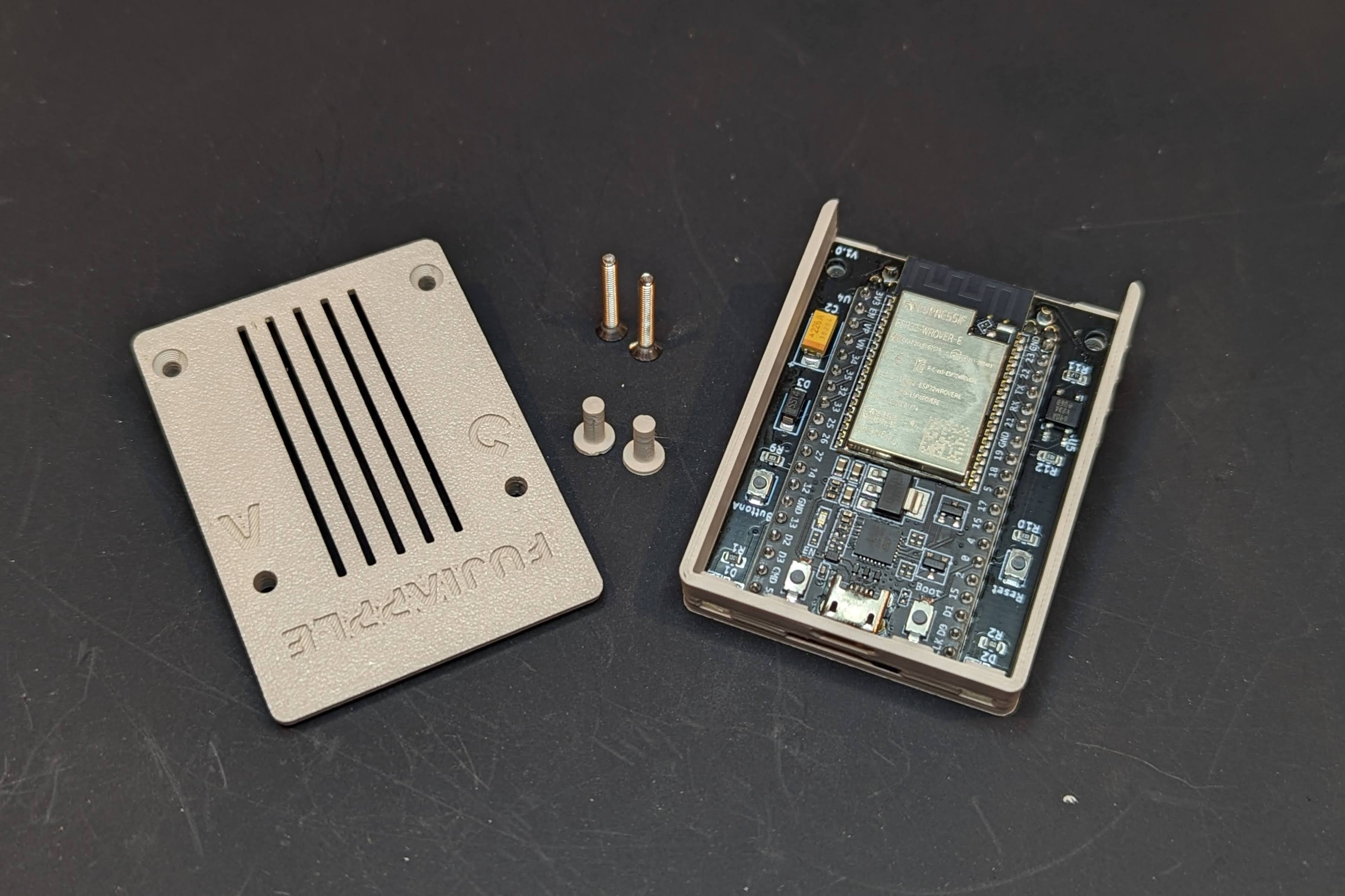

FujiApple DevKit SmartPort, from the project README
From the project README

Main components on the FujiApple DevKit SmartPort

C529589C969151C371970C3040644

FujiApple DevKit SmartPort bill of materials (BOM)

29 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C529589
LSF0204PWR
Espressif
U1
1
C969151
LSF0204PWR
Silicon Labs
U2
1
C371970
LSF0204PWR
Texas Instruments
U3
1
C371970
ESP32-DevKitC-VE
Texas Instruments
U4
1
C3040644
SFH690AT
Torex
U5
1
ST-TF-003A
P1
1
ButtonA
SW1
1
Reset
SW2
1
C157742
WIFI
SunLED
D1
1
C364550
BUS
OSRAM
D2
1
C364554
B140-E3
Rohm
D3
1
C23733
47uF 10v
C1
1
C23733
220uF 10v
C2
2
C25744
1K
R1, R2
5
C25744
10K
R3, R5, R6, R8, R12
1
C25862
10K
R4
1
C413086
10K
R7
1
C25896
10K
R9
1
C11702
10K
R10
1
C163478
270R
R11
Show 3 more
QtyPartRefs
2
C11702
1K
R13, R14
1
C25862
1K
R15
1
C413001
10K
R16

FujiApple DevKit SmartPort design files

The KiCad project lives in the FujiNetWIFI/fujinet-hardware repository on GitHub; these links point at the commit this page was built from.

FujiApple DevKit SmartPort: common questions

What microcontroller does the FujiApple DevKit SmartPort use?

The FujiApple DevKit SmartPort is built around the C529589, from the ESP32 family.

How big is the FujiApple DevKit SmartPort PCB?

The FujiApple DevKit SmartPort measures 41 × 56.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FujiApple DevKit SmartPort?

29 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FujiApple DevKit SmartPort design files?

From the FujiNetWIFI/fujinet-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FujiApple DevKit SmartPort design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which FujiNetWIFI chose for the repository.

Can I test firmware for the FujiApple DevKit SmartPort without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
