Neatboard esp8266

galjonsfigur·neatboard-esp8266

Neatboard esp8266 PCB layout, top view — open source ESP8266 board by galjonsfigur

About the Neatboard esp8266 PCB

Neatboard esp8266 is an open source ESP8266 PCB design by galjonsfigur, published on GitHub under the MIT license. It is a 2-layer board measuring 28 × 34.2 mm, with 49 components from 35 distinct parts.

Its main chip is the ESP8266EX, from the ESP8266 family. Other key parts include the CP2102N-A01-GQFN28, AT25SF081-SSHD-X and LM3671. By type, the board carries 15 resistors, 12 capacitors, 4 ICs, 4 diodes, 3 connectors and 3 jumpers.

It belongs with the usb & debug tools designs in this gallery.

From the project

My version of D1 Mini with ESP8266 and many neat features

Small clone of WeMos D1 Mini couple additional functionalities: - Pin-out and footprint compatible with WeMos D1 Mini (exception: board outline) - Additional jumpers for Deep Sleep and disabling LEDs - CP2102 USB-UART bridge (no more problems with CH340) - UART activity LED - DC/DC instead of LDO for better efficiency - Bigger PCB antenna, based on DN007 document from Texas Instruments - Integrated Fuse and ESD protection

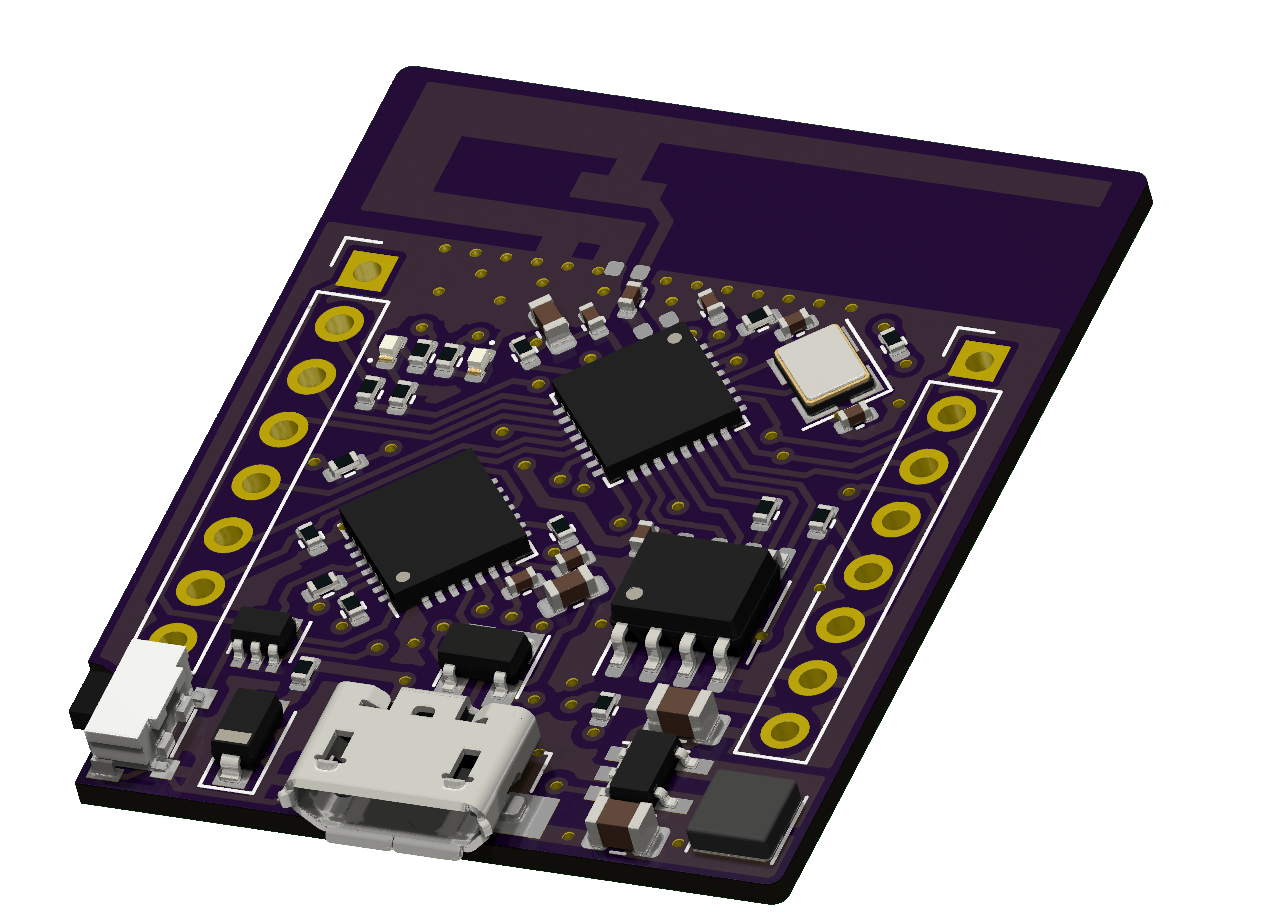

Neatboard esp8266, from the project README
From the project README

Main components on the Neatboard esp8266

CP2102N-A01-GQFN28AT25SF081-SSHD-XLM3671ESP8266EX

Neatboard esp8266 bill of materials (BOM)

49 components, 35 distinct parts.

QtyPartRefs
1
CP2102N-A01-GQFN28
U1
1
AT25SF081-SSHD-X
U2
1
LM3671
U3
1
ESP8266EX
U4
1
PUMH11
Q1
1
26MHz
Y1
1
USB_B_Micro
J1
2
Conn_01x08
J2, J3
1
Antenna_IFA
AE1
1
0.5A
F1
1
DSleep
JP1
1
UART LED
JP2
1
ESP LED
JP3
1
SW_SPST_MP
SW1
1
MBR0520
D1
1
SR05
D2
1
RED_LED
D3
1
BLUE_LED
D4
1
2.2uH
L1
2
DNP
L2, L3
Show 15 more
QtyPartRefs
5
100nF
C1, C3, C4, C9, C11
1
1uF
C2
1
10uF
C5
2
10pF
C6, C7
1
22uF
C8
1
10uF
C10
1
5.6pF
C12
2
4k7
R1, R14
2
470
R2, R3
2
12k
R4, R6
5
10k
R5, R7, R11, R12, R13
1
200
R8
1
220k
R9
1
100k
R10
1
2k2
R15

Neatboard esp8266 design files

The KiCad project lives in the galjonsfigur/neatboard-esp8266 repository on GitHub; these links point at the commit this page was built from.

Neatboard esp8266: common questions

What microcontroller does the Neatboard esp8266 use?

The Neatboard esp8266 is built around the ESP8266EX, from the ESP8266 family.

How big is the Neatboard esp8266 PCB?

The Neatboard esp8266 measures 28 × 34.2 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Neatboard esp8266?

49 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the Neatboard esp8266 design files?

From the galjonsfigur/neatboard-esp8266 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Neatboard esp8266 design in my own project?

Yes, under the terms of its MIT license, which galjonsfigur chose for the repository.

Can I test firmware for the Neatboard esp8266 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
