CAN4VSCP Frankfurt Eth.

grodansparadis·can4vscp-frankfurt-eth·esp32-version/kicad/frakfurt_eth.kicad_pcb

CAN4VSCP Frankfurt Eth. PCB layout, top view — open source ESP32 board by grodansparadis

About the CAN4VSCP Frankfurt Eth. PCB

CAN4VSCP Frankfurt Eth. is an open source ESP32 PCB design by grodansparadis, published on GitHub under the CERN-OHL-1.2 license. It is a 4-layer board measuring 42.1 × 72 mm, with 71 components from 43 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the LAN8720A, SN65HVD232 and R-78B3.3-2.0. By type, the board carries 28 resistors, 15 capacitors, 13 diodes, 4 ICs, 4 connectors and 4 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

Frankfurt Ethernet to CAN4VSCP bridge

This work is based on original work done here.

Frankfurt Eth is a tcp/ip and MQTT CAN4VSCP gateway. The module is available in two versions. One without PoE and and one with PoE.

The module is plug and play. Just connect to a CAN4VSCP system and go to work. You can connect to the module using VSCP tcp/ip link protocol or set it up to talk to a MQTT broker of choice.

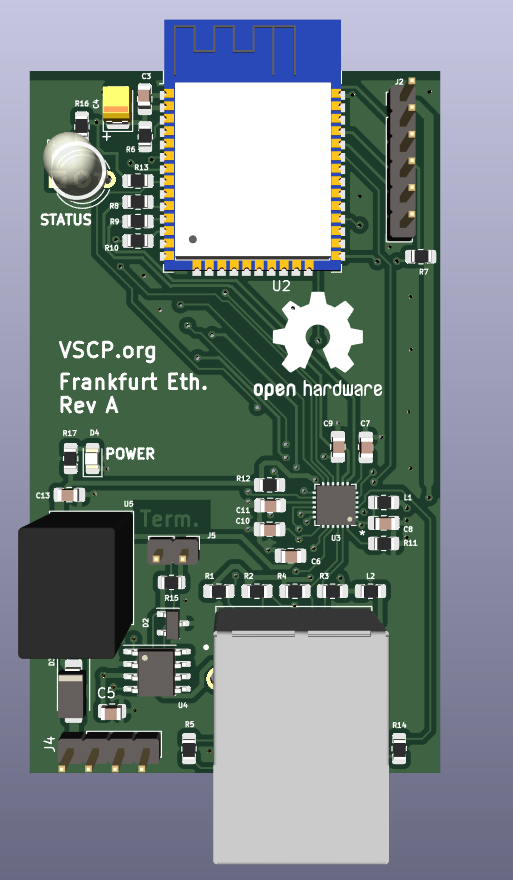

CAN4VSCP Frankfurt Eth., from the project README
From the project README

Main components on the CAN4VSCP Frankfurt Eth.

ESP32-WROOM-32LAN8720ASN65HVD232R-78B3.3-2.0

CAN4VSCP Frankfurt Eth. bill of materials (BOM)

71 components, 43 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
LAN8720A
U2
1
SN65HVD232
U4
1
R-78B3.3-2.0
U5
1
50MHz
Y1
1
PROG
J1
1
Conn_Left_I2C
J3
1
Conn_01x02
J4
1
RJ45_Hanrun_HR911105A_Horizontal
J5
1
RESET
SW1
1
BOOT
SW2
1
Control 1
SW3
1
Control 2
SW4
4
ESD9B3
D1, D2, D4, D5
1
LED_Dual_KAK
D3
1
LED
D6
1
1N5819
D7
1
NUP2105L
D8
5
PESD3V3L1BA
D9, D10, D11, D12, D13
2
BLM21SP181SN1D
L1, L2
Show 23 more
QtyPartRefs
2
1u
C1, C4
1
10u
C2
1
100u
C3
4
100n
C5, C7, C10, C11
2
1uF
C6, C8
1
470pF
C9
1
22nF
C12
1
10uF
C13
1
1uF
C14
1
100nF
C15
4
10k
R1, R2, R5, R6
2
270R
R3, R4
1
0R
R7
2
10K
R8, R9
1
470R
R10
4
33R
R11, R16, R18, R20
1
1K5
R12
1
4K7
R13
4
10R
R14, R15, R17, R19
1
12K1
R21
4
49R9
R22, R23, R24, R27
2
270R
R25, R26
1
120R
R28

CAN4VSCP Frankfurt Eth. design files

The KiCad project lives in the grodansparadis/can4vscp-frankfurt-eth repository on GitHub; these links point at the commit this page was built from.

CAN4VSCP Frankfurt Eth.: common questions

What microcontroller does the CAN4VSCP Frankfurt Eth. use?

The CAN4VSCP Frankfurt Eth. is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the CAN4VSCP Frankfurt Eth. PCB?

The CAN4VSCP Frankfurt Eth. measures 42.1 × 72 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the CAN4VSCP Frankfurt Eth.?

71 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the CAN4VSCP Frankfurt Eth. design files?

From the grodansparadis/can4vscp-frankfurt-eth repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CAN4VSCP Frankfurt Eth. design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which grodansparadis chose for the repository.

Can I test firmware for the CAN4VSCP Frankfurt Eth. without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
