Esp32 PCB layout, top view — open source ESP32 board by Hackuarium

About the Esp32 PCB

Esp32 is an open source ESP32 PCB design by Hackuarium, published on GitHub. It is a 2-layer board measuring 85 × 75 mm, with 58 components from 37 distinct parts.

Its main chip is the ESP32-WROOM-32U, from the ESP32 family. Other key parts include the MS5637, Si7020-A20, MCP73831-2, AP7365-33YG and ACT4088. By type, the board carries 15 resistors, 12 capacitors, 8 ICs, 8 connectors, 7 diodes and 4 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

https://www.espressif.com/sites/default/files/documentation/esp32-wroom-32datasheeten.pdf

https://www.espressif.com/sites/default/files/documentation/esp32-wroom-32datasheeten.pdf

https://www.espressif.com/sites/default/files/documentation/esp32hardwaredesignguidelinesen.pdf

https://www.instructables.com/id/DIY-ESP32-Development-Board-ESPer/

Start by installing the ESP32 board in Arduino IDE https://randomnerdtutorials.com/installing-the-esp32-board-in-arduino-ide-mac-and-linux-instructions/ (Mac/Linux) https://randomnerdtutorials.com/installing-the-esp32-board-in-arduino-ide-windows-instructions/ (Windows)

Esp32, from the project README

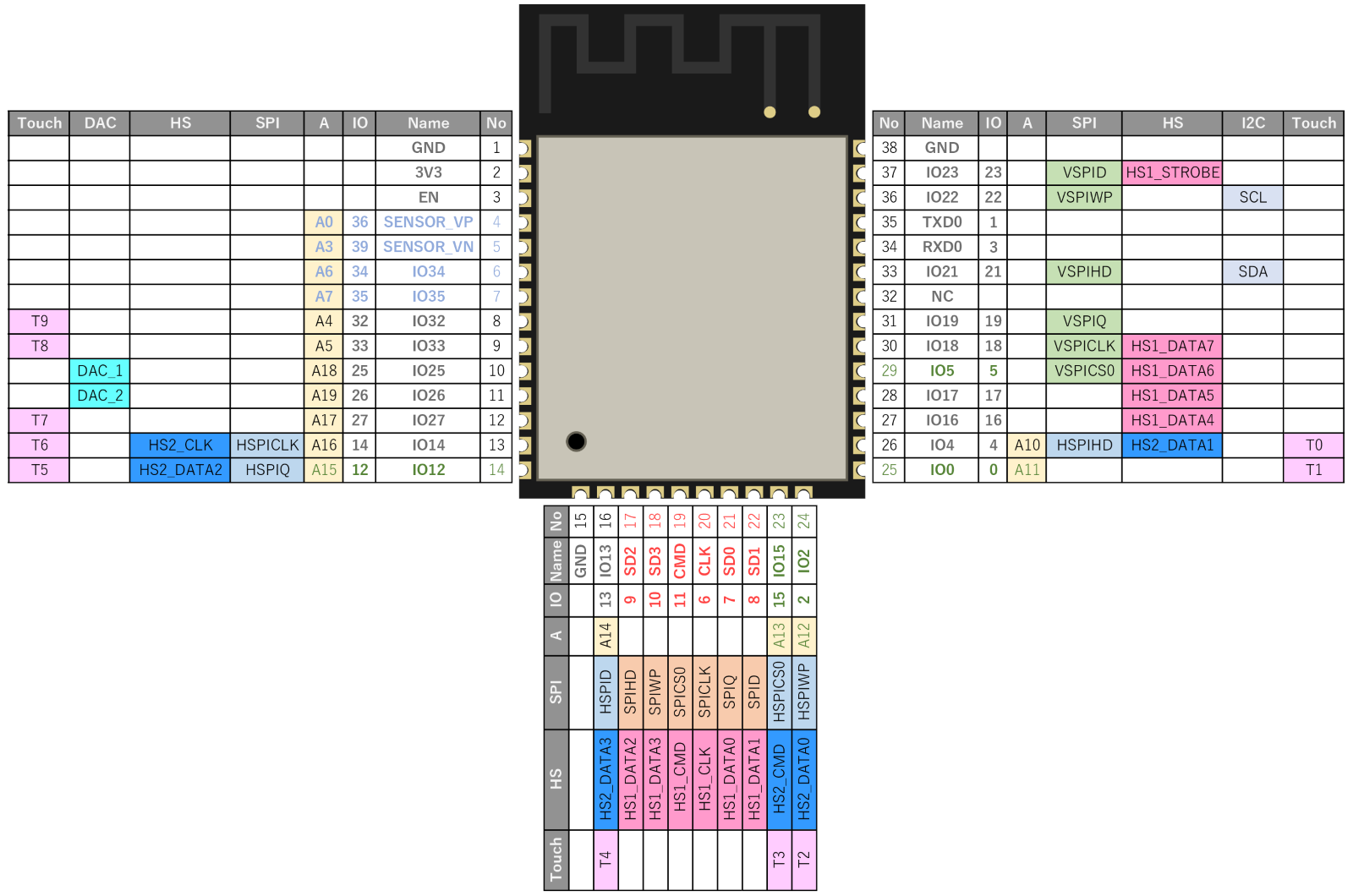

From the project README

Main components on the Esp32

ESP32-WROOM-32UMS5637Si7020-A20MCP73831-2AP7365-33YGACT4088DS18B20UTCS3400

Esp32 bill of materials (BOM)

58 components, 37 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32U
U1
1
MS5637
U2
1
Si7020-A20
U3
1
MCP73831-2
U4
1
AP7365-33YG
U5
1
ACT4088
U6
1
DS18B20U
U7
1
TCS3400
U8
4
BSP75
Q1, Q2, Q3, Q4
1
5 / 12V
J1
2
Onewire
J3, J4
1
IO_RGBW
J9
1
CONN FT232RL
J15
2
RJ12-I2C
J16, J17
1
BATT
J18
1
RESET
SW1
1
PROG
SW2
1
Test_i2C
TP8
3
D_Schottky
D1, D3, D5
2
LED
D2, D4
Show 17 more
QtyPartRefs
1
DMP1045U
D6
1
B240A
D7
1
4.7µH
L1
2
100nF
C1, C7
5
10uF
C2, C3, C4, C5, C6
2
C
C8, C9
1
22nF
C10
1
10µF
C11
1
22µF
C12
3
4.7k
R1, R3, R17
6
10k
R2, R5, R8, R9, R11, R16
1
1k
R4
1
100k
R6
1
1M
R7
1
270k
R10
1
49.9k
R12
1
9.64k
R13

Esp32 design files

The KiCad project lives in the Hackuarium/esp-32wroom repository on GitHub; these links point at the commit this page was built from.

Esp32: common questions

What microcontroller does the Esp32 use?

The Esp32 is built around the ESP32-WROOM-32U, from the ESP32 family.

How big is the Esp32 PCB?

The Esp32 measures 85 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32?

58 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32 design files?

From the Hackuarium/esp-32wroom repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Esp32 design in my own project?

The repository has no license, so all rights stay with Hackuarium. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
