CNC ESP32
About the CNC ESP32 PCB
CNC ESP32 is an open source ESP32 PCB design by IagoAbreu-Core, published on GitHub. It is a 2-layer board measuring 63.8 × 95.8 mm, with 19 components from 9 distinct parts.
Its main chip is the ESP32-DevKitC, from the ESP32 family. Other key parts include the L7805 and Pololu_Breakout_A4988. By type, the board carries 7 capacitors, 5 connectors, 4 modules, 2 ICs and 1 diode.
It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.

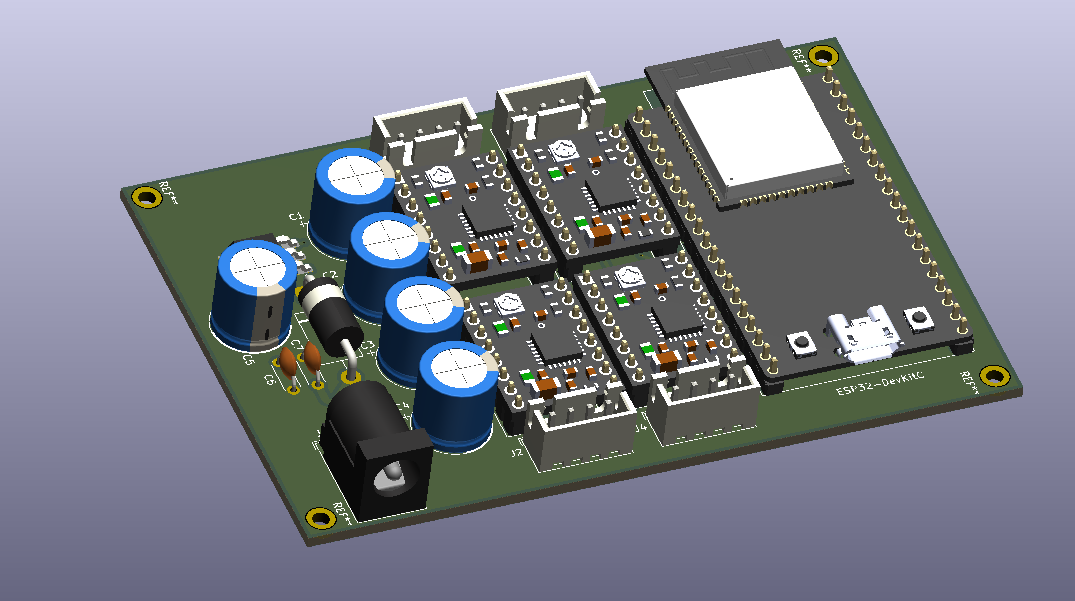

From the project
CNC control plate for 4 motors
👨💻 Developer: [Iago Abreu] ✉️ Open for freelance opportunities: Schematic capture, KiCad PCB Layout, and Gerber generation.
Main components on the CNC ESP32
CNC ESP32 bill of materials (BOM)
19 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-DevKitC | ESP32-DevKitC | U1 |
| 1 | L7805 | TO-252-3_TabPin2 | U2 |
| 4 | Pololu_Breakout_A4988 | Pololu_Breakout-16_15.2x20.3mm | A1, A2, A3, A4 |
| 4 | Conn_01x04_Pin | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J1, J2, J3, J4 |
| 1 | Barrel_Jack_Switch | BarrelJack_GCT_DCJ200-10-A_Horizontal | J5 |
| 1 | MUR460 | D_DO-201AE_P15.24mm_Horizontal | D1 |
| 4 | 100uf/25v | CP_Radial_D10.0mm_P3.50mm | C1, C2, C3, C4 |
| 1 | 1000uF/16v | CP_Radial_D10.0mm_P3.50mm | C5 |
| 2 | 0.1uf | C_Disc_D4.3mm_W1.9mm_P5.00mm | C6, C7 |
CNC ESP32 design files
The KiCad project lives in the IagoAbreu-Core/CNC_ESP32 repository on GitHub; these links point at the commit this page was built from.
- Layoutcontrol_cnc_esp32D.kicad_pcb
- Schematiccontrol_cnc_esp32D.kicad_sch
CNC ESP32: common questions
What microcontroller does the CNC ESP32 use?
The CNC ESP32 is built around the ESP32-DevKitC, from the ESP32 family.
How big is the CNC ESP32 PCB?
The CNC ESP32 measures 63.8 × 95.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CNC ESP32?
19 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the CNC ESP32 design files?
From the IagoAbreu-Core/CNC_ESP32 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CNC ESP32 design in my own project?
The repository has no license, so all rights stay with IagoAbreu-Core. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the CNC ESP32 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
