SF2000 PCB layout, top view — open source ESP32 board by jbilander
Simulate this board

About the SF2000 PCB

SF2000 is an open source ESP32 PCB design by jbilander, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 111.5 × 84 mm, with 105 components from 42 distinct parts.

Its main chip is the ESP32-C5-WROOM-1U-N8R8, from the ESP32 family. Other key parts include the LM1117-3.3, ABLIC S-1132B43-M5T1U, SN74CBT16211, SN74CBT3244PW and SN74LVC16245ADGGR. By type, the board carries 60 capacitors, 16 resistors, 14 ICs, 13 connectors, 1 crystal and 1 switch.

It belongs with the retro computing designs in this gallery.

From the project

Spitfire 2000, A low-end 42 MHz Accelerator with IDE and 4/8 MB fast RAM for the Amiga 2000 co-pro slot (or A500 through an adapter).

This is WORK IN PROGRESS, a DIY hobby project. If you are going to make and sell boards you are also the one doing the customer support.

The firmware for this board is in a separate repository available here: https://github.com/jbilander/SF2000-FW

BOM Rev. 2B --------- Designator | Name/Value | Package | Notes -|-|-|-| U1 | Voltage Regulator 3.3V, LM1117-3.3 or AMS1117-3.3 | SOT-223 | 3.3V 1A Low Drop-Out (LDO) Linear Voltage regulator U2 | Voltage Regulator 4.3V, ABLIC S-1132B43-M5T1U or TPS73643DBVR | SOT-23-5 | 4.3V LDO Linear Voltage RegulatorS-1132B43-M5T1U U3 | Voltage Regulator 1.2V…

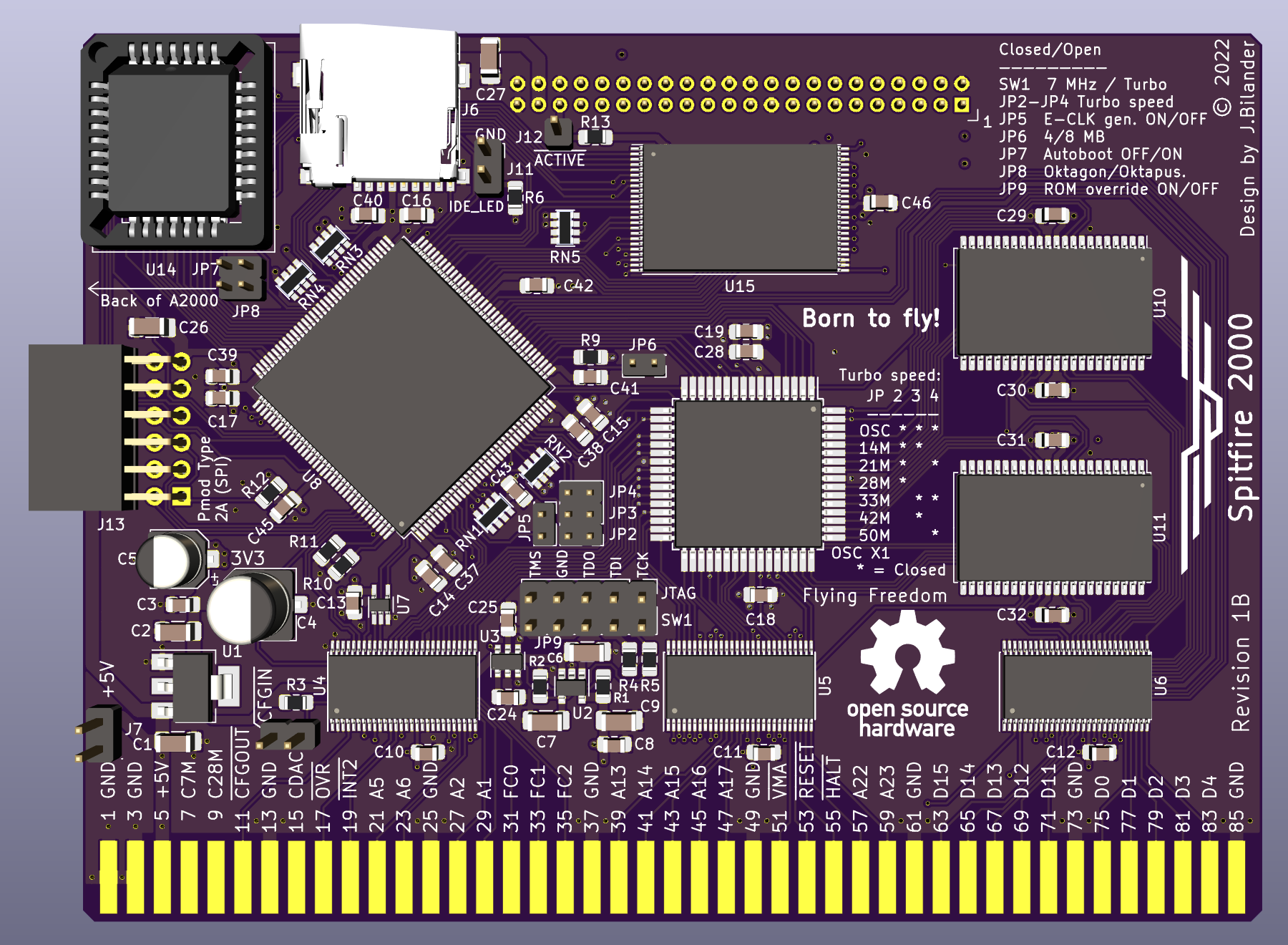

SF2000, from the project README
From the project README

Main components on the SF2000

LM1117-3.3ABLIC S-1132B43-M5T1USN74CBT16211SN74CBT3244PWSN74LVC16245ADGGR10M02SCU324C8GW25Q16JVSNIQ68000DAS4C16M16SA-6BIN74AHCT14PW,118ESP32-C5-WROOM-1U-N8R8TLV75533PDBVR74LVC1G57GV

SF2000 bill of materials (BOM)

105 components, 42 distinct parts.

QtyPartRefs
1
LM1117-3.3
U1
1
ABLIC S-1132B43-M5T1U
U2
2
SN74CBT16211
U4, U5
1
SN74CBT3244PW
U6
1
SN74LVC16245ADGGR
U7
1
10M02SCU324C8G
U8
1
W25Q16JVSNIQ
U9
1
68000D
U10
1
AS4C16M16SA-6BIN
U11
1
74AHCT14PW,118
U12
1
ESP32-C5-WROOM-1U-N8R8
U13
1
TLV75533PDBVR
U14
1
74LVC1G57GV
U19
1
Oscillator_7.0x5.0mm
X1
1
Conn_01x02
J2
1
Conn_02x05_Odd_Even
J3
4
Conn_02x01
J4, J5, J6, J11
3
Conn_02x01
J7, J9, J13
1
Micro_SD_Card_Socket
J8
1
Conn_01x01
J10
Show 22 more
QtyPartRefs
1
Conn_02x11_Odd_Even
J12
1
USB_C_Receptacle_USB2.0
J14
1
TDB04H0SB1R
S1
1
100uF
C1
1
22uF
C2
5
10uF
C3, C4, C5, C7, C8
1
10uF
C6
1
0.47uF
C9
23
0.1uF
C10, C12, C13, C14, C15, C16, C18, C19 +15
7
0.1uF
C11, C17, C31, C32, C33, C34, C38
2
0.01uF
C40, C44
13
0.01uF
C41, C42, C43, C45, C46, C47, C48, C49 +5
6
0.1uF
C55, C56, C57, C58, C59, C60
1
33
R1
1
33
R2
1
33
R3
1
220
R4
1
22
R5
2
10k
R6, R8
1
10k
R7
2
5k1
R9, R10
6
10k_Pack04
RN1, RN2, RN3, RN4, RN5, RN6

SF2000 design files

The KiCad project lives in the jbilander/SF2000 repository on GitHub; these links point at the commit this page was built from.

SF2000: common questions

What microcontroller does the SF2000 use?

The SF2000 is built around the ESP32-C5-WROOM-1U-N8R8, from the ESP32 family.

How big is the SF2000 PCB?

The SF2000 measures 111.5 × 84 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the SF2000?

105 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the SF2000 design files?

From the jbilander/SF2000 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SF2000 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jbilander chose for the repository.

Can I test firmware for the SF2000 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
