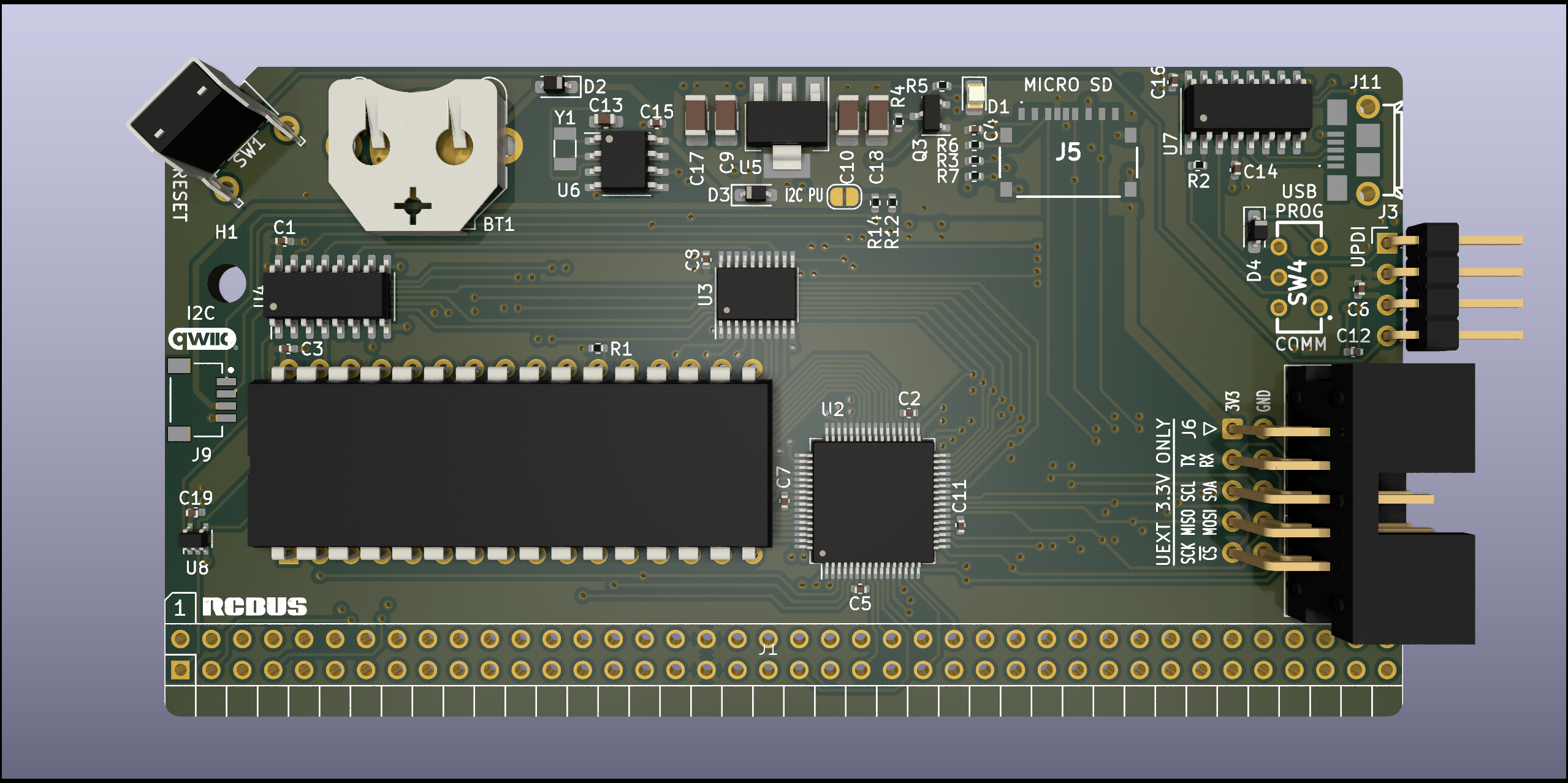

Z80ctrlng PCB layout, top view — open source board by jblang

About the Z80ctrlng PCB

Z80ctrlng is an open source PCB design by jblang, published on GitHub under the MIT license. It is a 4-layer board measuring 101.6 × 53.3 mm, with 63 components from 41 distinct parts.

Other key parts include the AS6C4008-55PCN, AVR128DB64x-xPT, 74HCT573, 74HCT257 and AMS1117-3.3. By type, the board carries 19 capacitors, 12 jumpers, 9 resistors, 8 ICs, 6 connectors and 4 diodes.

It belongs with the retro computing and usb & debug tools designs in this gallery.

From the project

AVR-based bootloader, I/O, and debugging for Z80-based computers

Important: This design has not yet been tested. Manufacture at your own risk.

This is a new design for z80ctrl using the Microchip AVR128DB64 microcontroller.

This next-gen AVR has several advantages over the ATmega1284P used in the original design:

- It's a 64-pin part with more than enough I/O to interface with the RC2014 bus without an I/O expander. This will allow much faster data transfers since all signals are accessed in parallel rather than serially. - It has built-in configurable logic used to assert the wait signal on I/O requests without external glue logic. - It has…

Z80ctrlng, from the project README
From the project README

Main components on the Z80ctrlng

AS6C4008-55PCNAVR128DB64x-xPT74HCT57374HCT257AMS1117-3.3PCF8563TCH340C74LVC1G126

Z80ctrlng bill of materials (BOM)

63 components, 41 distinct parts.

QtyPartRefs
1
AS6C4008-55PCN
U1
1
AVR128DB64x-xPT
U2
1
74HCT573
U3
1
74HCT257
U4
1
AMS1117-3.3
U5
1
PCF8563T
U6
1
CH340C
U7
1
74LVC1G126
U8
1
BSS138
Q3
1
32kHz
Y1
1
RCBUS
J1
1
UDPI
J3
1
XKTF-0803-0
J5
1
UEXT
J6
1
SM04B-SRSS-TB
J9
1
U254-051T-4BH81-S2S
J11
1
CR1216
BT1
1
AUTORESET
JP1
1
TX3V
JP2
1
RX3V
JP3
Show 21 more
QtyPartRefs
1
SDA
JP6
1
SCL
JP7
1
MOSI
JP8
1
MISO
JP9
1
SCK
JP10
1
CS
JP11
1
RTC_SCL
JP13
1
RTC_SDA
JP15
1
I2C_PU
JP16
1
RESET
SW1
1
PROG_EN
SW4
1
LED
D1
3
1N5819WS
D2, D3, D4
14
0.1uf
C1, C2, C3, C4, C5, C6, C7, C8 +6
2
1uf
C9, C10
1
27pf
C13
2
22uf
C17, C18
1
10K
R1
2
1K
R2, R5
4
100K
R3, R4, R6, R7
2
2.2K
R12, R14

Z80ctrlng design files
