Homectrl v2
About the Homectrl v2 PCB

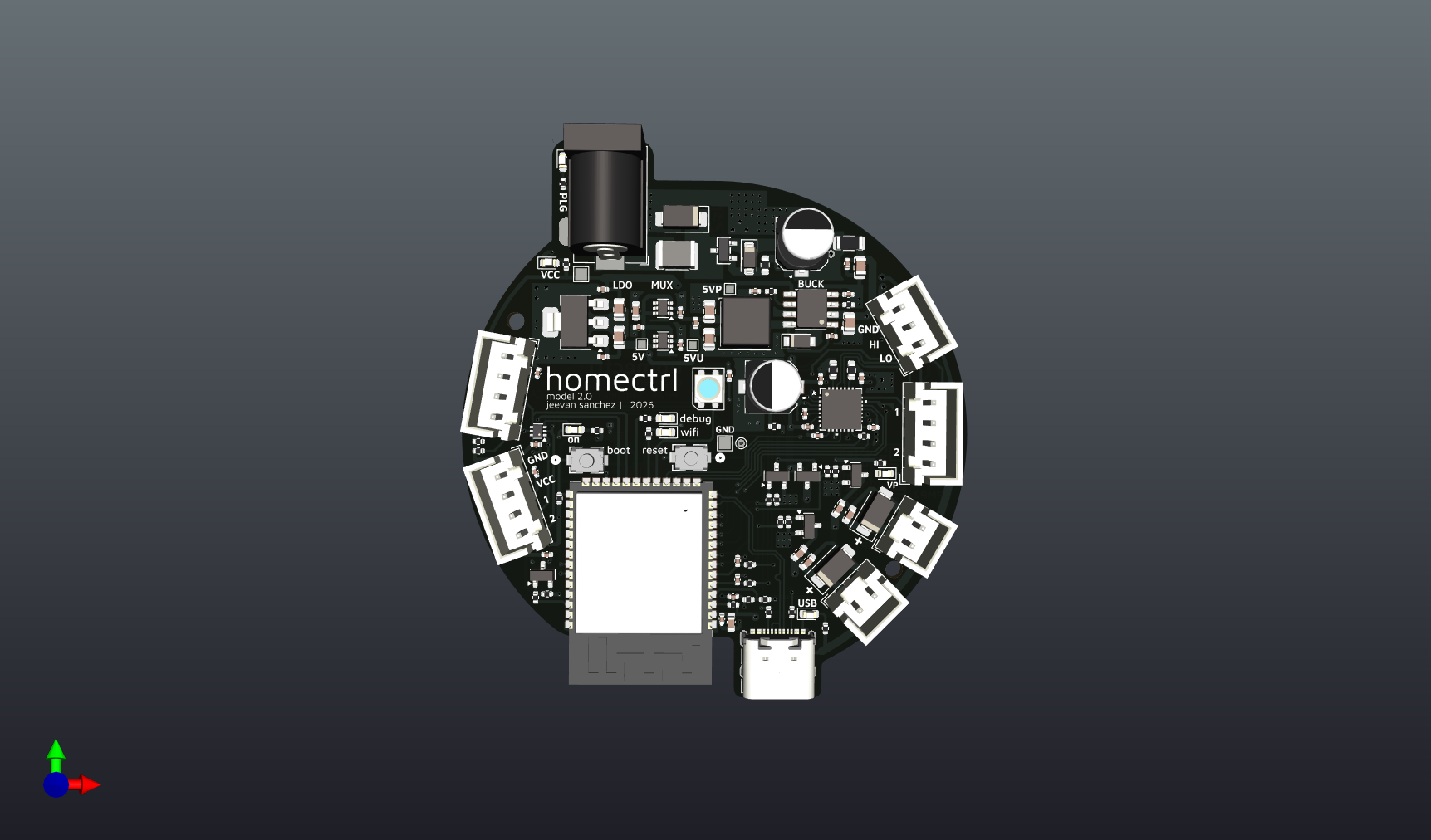

Homectrl v2 is an open source ESP32 PCB design by jeevan9s, published on GitHub. It is a 4-layer board measuring 64 × 70.5 mm, with 127 components from 64 distinct parts.
Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the TPS5405DR, MCP1826S, DMP4065S-7, TMC2209 and TPD4E001DRLR. By type, the board carries 43 capacitors, 39 resistors, 14 diodes, 8 ICs, 8 connectors and 5 transistors.
It belongs with the iot & wireless, robotics & motion and power & battery designs in this gallery.
From the project
home automation controller
Home-automation controller with a Next.js dashboard.
- homectrl - Status - Overview - Features - Controller - App - Mechanical - Architecture - Systems - Electrical - Power System - Microcontroller - Pump Interface - Stepper Motor Interface - Peripheral Devices - Mechanical - Container - Lid - Firmware - Web-App - Repository Structure - Gallery
I built homectrl because I wanted to automate my first apartment.
Main components on the Homectrl v2
Homectrl v2 bill of materials (BOM)
127 components, 64 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS5405DR | SOIC127P599X175-8N | U1 |
| 1 | MCP1826S | SOT-223-3_TabPin2 | U2 |
| 1 | DMP4065S-7 | SOT-23 | U3 |
| 1 | ESP32-S3-WROOM-1 | XCVR_ESP32-S3-WROOM-1-N16R2 | U4 |
| 1 | TMC2209 | QFN28_5X5_TRI | U5 |
| 1 | TPD4E001DRLR | Texas_R-PDSO-N6_DRL-6 | U7 |
| 1 | TPD2E001DRLR | SOT50P160X60-5N | U8 |
| 1 | SI2347DS-T1-GE3 | SOT_7DS-T1-GE3_VIS | U9 |
| 1 | AO3407A | SOT-23 | Q1 |
| 1 | 2N7002 | SOT-23 | Q2 |
| 3 | AO3400A | SOT-23 | Q3, Q4, Q5 |
| 1 | Barrel_Jack | BarrelJack_Horizontal | J1 |
| 1 | PUMP1_CONN | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J2 |
| 1 | PUMP2_CONN | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J3 |
| 1 | STEP_CONN | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J4 |
| 1 | USB_C_CONN | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J5 |
| 1 | SMS1_CONN | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J6 |
| 1 | ALS_CONN | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J7 |
| 1 | FSW1_CONN | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J8 |
| 1 | CMT-0525-75-SMT-TR | XDCR_CMT-0525-75-SMT-TR | BZ1 |
Show 44 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 3A 24V PTC | Fuse_1812_4532Metric | F1 |
| 1 | S3_RESET_SW | SW_5-B-B-B-A_XKB | SW1 |
| 1 | S3_BOOT_SW | SW_5-B-B-B-A_XKB | SW2 |
| 1 | GND_TP_DRILL | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP3 |
| 1 | VPLUG_TP_DRILL | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP5 |
| 2 | ID_LM66100DCKR | SOT-363_SC-70-6 | UE1, UE2 |
| 1 | SMAJ14A | D_SMA | D1 |
| 2 | PLUG_LED | LED_0603_1608Metric | D2, D7 |
| 1 | MMSZ5243BT1G | D_SOD-123 | D3 |
| 1 | SS34 | Nexperia_CFP3_SOD-123W | D4 |
| 2 | SS14 | D_SMA | D5, D9 |
| 1 | USB_LED | LED_0603_1608Metric | D6 |
| 1 | 3V3_LED | LED_0603_1608Metric | D8 |
| 1 | ON_LED | LED_0603_1608Metric | D10 |
| 1 | DBG_LED | LED_0603_1608Metric | D11 |
| 1 | WIFI_LED | LED_0603_1608Metric | D12 |
| 1 | BAT54J | D_SOD-323F | D13 |
| 1 | VPMP_LED | LED_0603_1608Metric | D15 |
| 1 | FerriteBead | R_1206_3216Metric | FB1 |
| 1 | 10uH | L_Changjiang_FNR6045S | L1 |
| 1 | EEE-FK1V101P 100uF | CAP_EEHZK1V101XP | C1 |
| 1 | CL21A106KAYNNNE 10uF | C_0805_2012Metric | C2 |
| 1 | 10uF | C_0805_2012Metric | C3 |
| 1 | 10nF | C_0402_1005Metric | C4 |
| 25 | 0.1uF | C_0402_1005Metric | C5, C7, C9, C10, C12, C14, C15, C17 +17 |
| 4 | 22uF | C_0805_2012Metric | C6, C13, C42, C44 |
| 1 | 3.3nF | C_0402_1005Metric | C8 |
| 4 | 10uF | C_0603_1608Metric | C11, C16, C22, C23 |
| 2 | 0.1uF | C_0603_1608Metric | C18, C19 |
| 1 | 100uF | CAP_EEHZK1V101XP | C34 |
| 1 | 22nF | C_0402_1005Metric | C38 |
| 1 | 2.2uF | C_0402_1005Metric | C40 |
| 3 | 4.7k | R_0402_1005Metric | R1, R34, R35 |
| 1 | 100k | R_0603_1608Metric | R2 |
| 1 | 50k | R_0402_1005Metric | R3 |
| 11 | 10k | R_0402_1005Metric | R4, R5, R6, R9, R14, R19, R23, R25 +3 |
| 9 | 150 | R_0402_1005Metric | R7, R13, R15, R16, R17, R18, R22, R24 +1 |
| 1 | 100k | R_0402_1005Metric | R8 |
| 1 | 470 | R_0402_1005Metric | R10 |
| 1 | 20K | R_0402_1005Metric | R11 |
| 2 | 1.8K | R_0402_1005Metric | R12, R37 |
| 2 | 5.1k | R_0402_1005Metric | R20, R21 |
| 5 | 1k | R_0402_1005Metric | R27, R31, R32, R39, R40 |
| 2 | 0.11 | R_0603_1608Metric | R29, R30 |
Homectrl v2 design files
The KiCad project lives in the jeevan9s/homectrl-sys repository on GitHub; these links point at the commit this page was built from.
Homectrl v2: common questions
What microcontroller does the Homectrl v2 use?
The Homectrl v2 is built around the ESP32-S3-WROOM-1, from the ESP32 family.
How big is the Homectrl v2 PCB?
The Homectrl v2 measures 64 × 70.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Homectrl v2?
127 components, from 64 distinct parts. The full bill of materials is listed on this page.
Where can I download the Homectrl v2 design files?
From the jeevan9s/homectrl-sys repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Homectrl v2 design in my own project?
The repository has no license, so all rights stay with jeevan9s. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Homectrl v2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
