4ch-RF-FE PCB layout, top view — open source board by JohnnyGOX17
Simulate this board

About the 4ch-RF-FE PCB

4ch-RF-FE is an open source PCB design by JohnnyGOX17, published on GitHub under the MIT license. It is a 4-layer board measuring 249.9 × 94.7 mm, with 275 components from 44 distinct parts.

Other key parts include the MCP1755ST-5002E_DB, INA219AIDCNR, TPS562208DDCT, PCA9548APW and M24C02-FDW. By type, the board carries 137 capacitors, 42 ICs, 36 resistors, 22 connectors, 17 fuses and 11 inductors.

It belongs with the audio designs in this gallery.

From the project

4-channel RF Front End design

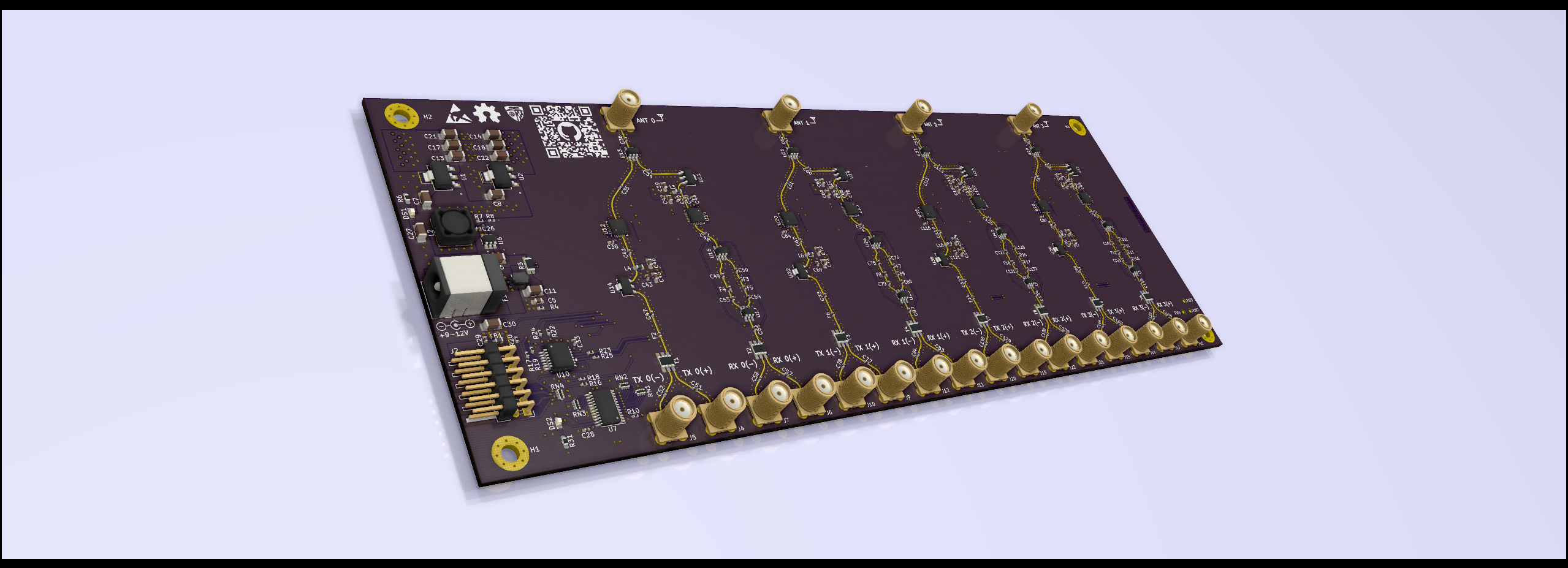

An open-source (KiCAD) RF front end with 4 independent RX & TX channels optimized for MIMO/Radar prototyping. It implements an I2C bus for digital control of each channel’s attenuation and single-ended control of T/R switch for fast action. A switch-mode power supply and separate low dropout regulators for each channel are utilized to provide low-ripple power to RF Low Noise Amplifiers.

4ch-RF-FE, from the project README
From the project README

Main components on the 4ch-RF-FE

MCP1755ST-5002E_DBINA219AIDCNRTPS562208DDCTPCA9548APWM24C02-FDWSN74LVC125APWRSN74HCU04PWRADL5611ARKZ-R7PE43711HMC544AETRPCAL6416APW

4ch-RF-FE bill of materials (BOM)

275 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
MCP1755ST-5002E_DB
SOT-223_3MC
U1, U2, U3, U4
1
INA219AIDCNR
Texas Instruments
U5
1
TPS562208DDCT
DDC0006A_N
U6
1
PCA9548APW
U7
1
M24C02-FDW
U8
1
SN74LVC125APWR
PW14
U9
1
SN74HCU04PWR
PW14
U10
8
ADL5611ARKZ-R7
RK_3
U11, U14, U19, U22, U27, U30, U35, U38
8
PE43711
U12, U15, U20, U23, U28, U31, U36, U39
12
HMC544AETR
U13, U16, U17, U21, U24, U25, U29, U32 +4
4
PCAL6416APW
U18, U26, U34, U42
1
PJ1-021-SMT
PJ1-021-SMT-TR
J1
1
PPTC062LJBN-RC
Sullins Connector Solutions
J2
20
5-1814832-1
TE Connectivity AMP Connectors
J3, J4, J5, J6, J7, J8, J9, J10 +12
1
ERB-RE5R00V
Panasonic
F1
8
LPF04023600L
ATC
F2, F3, F6, F7, F10, F11, F14, F15
4
LP0603A2140ANTR
AVX
F4, F8, F12, F16
4
DEA162300HT-8047A1
TDK
F5, F9, F13, F17
8
MABA-011082
T1, T2, T3, T4, T5, T6, T7, T8
2
LTST-C190KGKT
Lite-On Inc.
DS1, DS2
Show 24 more
QtyPartRefs
1
BLM18HE152SN1D
Murata Electronics North America
FB1
1
ACP3225
L1
1
SRR6038-3R3Y
IND_BOURNS_SRR6038
L2
8
43NH
43nH
L3, L4, L5, L6, L7, L8, L9, L10
25
490-13342-1
0.1µF
C1, C4, C12, C26, C28, C29, C31, C32 +17
1
DNP
C2
11
1276-1942-1
1µF
C3, C5, C6, C42, C46, C68, C72, C94 +3
19
1276-1804-1
10µF
C7, C8, C9, C10, C11, C13, C14, C15 +11
1
1276-3146-1
22µF
C27
64
330PF
330pF
C34, C35, C36, C40, C41, C47, C48, C49 +56
8
68PF
68pF
C37, C43, C63, C69, C89, C95, C115, C121
8
1.2NF
1.2nF
C39, C45, C65, C71, C91, C97, C117, C123
4
DNP
R1, R9, R13, R15
2
10
R2, R3
1
100K
100k
R4
1
CSR1206-0R002F1
R5
1
180
R6
1
61.9K
61.9k
R7
10
10K
10k
R8, R10, R11, R12, R14, R26, R27, R28 +2
8
33
R16, R17, R18, R19, R20, R21, R22, R24
2
100
R23, R25
1
75
R31
4
EXB-28V103JX
RN1, RN2, RN3, RN4
1
DNP
RN5
