About the Micro-Pico Tiny Monosynth PCB

Micro-Pico Tiny Monosynth is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 134.6 × 113 mm, with 282 components from 69 distinct parts.

Other key parts include the SSI2130, TL072, SSI2162, LF398_SOIC14 and CD4053. By type, the board carries 121 resistors, 80 capacitors, 22 ICs, 14 diodes, 9 connectors and 5 switches.

It belongs with the audio designs in this gallery.

From the project

Tiny analog monosynth with 2 SSI2130 VCOs and swappable filter

Open index.html in a web browser for easy documentation navigation.

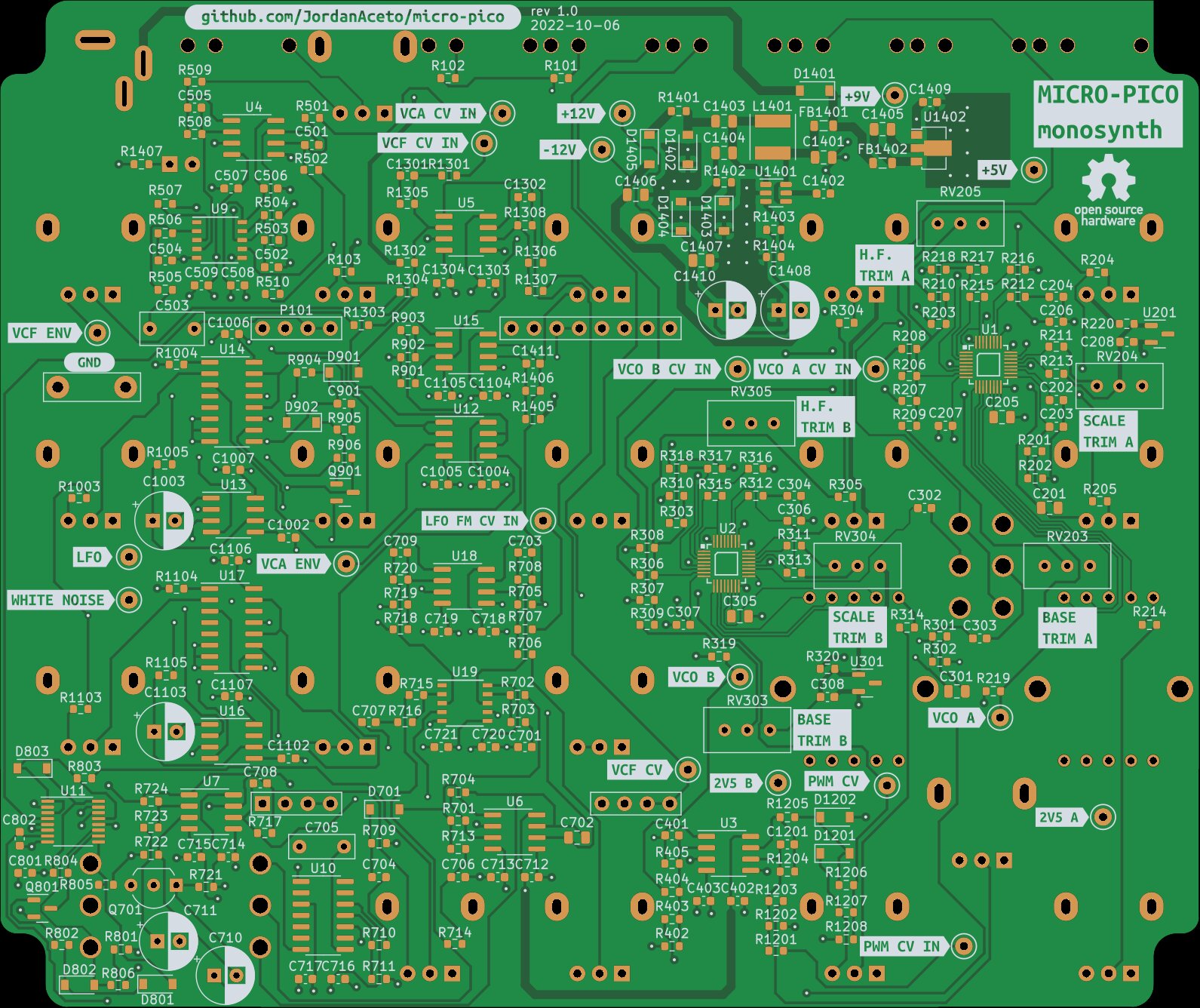

Micro-Pico Tiny Monosynth, from the project README — From the project README

Main components on the Micro-Pico Tiny Monosynth

SSI2130 TL072 SSI2162 LF398_SOIC14 CD4053 TLC555 CD4052B LM4040C-2.5 LT3467A L78L05_SOT89

Micro-Pico Tiny Monosynth bill of materials (BOM)

282 components, 69 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	SSI2130	PQN32_HandSoldering	U1, U2
8	TL072	SOIC-8_3.9x4.9mm_P1.27mm	U3, U4, U5, U6, U7, U12, U15, U18
2	SSI2162	SSOP-10_3.9x4.9mm_P1.00mm	U9, U19
1	LF398_SOIC14	SOIC-14_3.9x8.7mm_P1.27mm	U10
1	CD4053	TSSOP-16_4.4x5mm_P0.65mm	U11
2	TLC555	SOIC-8_3.9x4.9mm_P1.27mm	U13, U16
2	CD4052B	SOIC-16_3.9x9.9mm_P1.27mm	U14, U17
2	LM4040C-2.5	SOT-23	U201, U301
1	LT3467A	TSOT-23-6	U1401
1	L78L05_SOT89	SOT-89-3	U1402
1	2N3904_WIDE 2N3904_wide	TO-92_Inline_Wide	Q701
2	MMBT3904	SOT-23	Q801, Q901
7	PJ301M-12	PJ301M-12	J101, J102, J103, J104, J105, J106, J107
1	PJ-011A	CUI_PJ-011A	J108
1	VCF_plug_in_port	VCF_plug_in_port	P101
5	10K 10k	Alpha_RD901F	RV101, RV206, RV306, RV1003, RV1103
8	100K 100k	Alpha_RD901F	RV201, RV202, RV301, RV302, RV601, RV602, RV701, RV1301
6	5k	Potentiometer_Bourns_3296W_Vertical	RV203, RV204, RV205, RV303, RV304, RV305
2	5k	Bourns_PTV09	RV501, RV1201
4	1MA	Alpha_RD901F	RV1001, RV1002, RV1101, RV1102

Show 49 more

Qty	Part	Footprint	Refs
1	SW_DP_on_on_on	DPDT_mini_toggle	SW101
2	SR1712F-0204	SR1712F_rotary_switch	SW201, SW301
2	SW_SPDT_CO	SPDT_mini_toggle	SW701, SW801
8	1N4148W	D_SOD-123	D701, D801, D802, D803, D901, D902, D1201, D1202
5	B5819W	D_SOD-123	D1401, D1402, D1403, D1404, D1405
1	XLMDK65D	LED_D3.0mm	D1406
2	100R @ 100MHz	L_0805_2012Metric	FB1401, FB1402
1	10uH, 1.2A	L_Taiyo-Yuden_NR-50xx	L1401
2	10U 10u	C_0805_2012Metric	C201, C301
6	10N 10n	C_0603_1608Metric	C202, C203, C204, C302, C303, C304
2	3N9 COG	C_0805_2012Metric	C205, C305
38	100N 100n	C_0603_1608Metric	C206, C207, C208, C306, C307, C308, C402, C403 +30
5	100P 100p	C_0603_1608Metric	C401, C505, C708, C901, C1302
12	1n	C_0603_1608Metric	C501, C502, C504, C701, C703, C704, C707, C709 +4
1	470N 470n	C_Rect_L7.0mm_W3.5mm_P5.00mm	C503
1	10N 10n	C_0805_2012Metric	C702
1	2N2 2n2	C_Rect_L7.2mm_W2.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2	C705
6	10U 10u	CP_Radial_D6.3mm_P2.50mm	C710, C711, C1003, C1103, C1408, C1410
3	4U7 4u7	C_0805_2012Metric	C1401, C1406, C1407
2	1u	C_0805_2012Metric	C1403, C1404
1	470N 470n	C_0805_2012Metric	C1405
6	1k	R_0603_1608Metric	R101, R220, R320, R723, R803, R1205
16	10K 10k	R_0603_1608Metric	R102, R103, R201, R202, R301, R302, R709, R801 +8
3	39K 39k	R_0603_1608Metric	R203, R303, R708
3	200K 200k	R_0603_1608Metric	R204, R304, R707
3	2M2	R_0603_1608Metric	R205, R305, R722
30	100K 100k	R_0603_1608Metric	R206, R207, R208, R209, R214, R306, R307, R308 +22
2	270K 270k	R_0603_1608Metric	R210, R310
4	47K 47k	R_0603_1608Metric	R211, R311, R713, R714
7	270	R_0603_1608Metric	R212, R312, R503, R506, R509, R703, R716
2	470K 470k	R_0603_1608Metric	R213, R313
2	3K9 3k9	R_0603_1608Metric	R215, R315
6	4K7 4k7	R_0603_1608Metric	R216, R218, R316, R318, R507, R711
5	12K 12k	R_0603_1608Metric	R217, R317, R508, R710, R902
2	18K 18k	R_0603_1608Metric	R219, R319
3	27K 27k	R_0603_1608Metric	R403, R404, R505
2	150K 150k	R_0603_1608Metric	R502, R721
2	10M	R_0603_1608Metric	R510, R724
4	220K 220k	R_0603_1608Metric	R701, R1203, R1204, R1307
2	22K 22k	R_0603_1608Metric	R702, R1305
1	68K 68k	R_0603_1608Metric	R705
3	56K 56k	R_0603_1608Metric	R720, R1207, R1304
2	5K6 5k6	R_0603_1608Metric	R1003, R1103
4	100	R_0603_1608Metric	R1004, R1005, R1104, R1105
2	330K 330k	R_0603_1608Metric	R1201, R1202
1	6K8 6k8	R_0603_1608Metric	R1208
2	1	R_0603_1608Metric	R1401, R1402
1	114K 114k	R_0603_1608Metric	R1403
1	13K3 13k3	R_0603_1608Metric	R1404

Micro-Pico Tiny Monosynth design files

The KiCad project lives in the JordanAceto/micro-pico repository on GitHub; these links point at the commit this page was built from.

Layoutmain_pcb/kicad_6/micro_pico.kicad_pcb
Schematicmain_pcb/kicad_6/micro_pico.kicad_sch
BOMmain_pcb/docs/BOM/micro_pico-bom.csv
