TPP PCB layout, top view — open source STM32 board by juan-LARRAYA

About the TPP PCB

TPP is an open source STM32 PCB design by juan-LARRAYA, published on GitHub. It is a 2-layer board measuring 96 × 90 mm, with 211 components from 51 distinct parts.

Its main chip is the STM32F405RGTx, from the STM32 family. Other key parts include the LM358, INA199xxDCK, MCP1700x-330xxMB, BQ76905 and MT3608. By type, the board carries 72 capacitors, 67 resistors, 24 ICs, 21 diodes, 11 inductors and 8 connectors.

It belongs with the power & battery and science & space designs in this gallery.

From the project

Sistema de Gestión de Energía para Satélites Cubesat

Sistema de gestión de energía (EPS - Electric Power System) para CubeSat, diseñado para cumplir con las especificaciones requeridas en tensiones de salida, tasas de datos para comunicación con periféricos y vida útil extendida.

- Larraya, Juan Cruz - 104162 - jlarraya@fi.uba.ar - Stirparo, Nicolás - 105885 - nstirparo@fi.uba.ar - Paulino Alaya, Diego - 104311 - dpaulino@fi.uba.ar

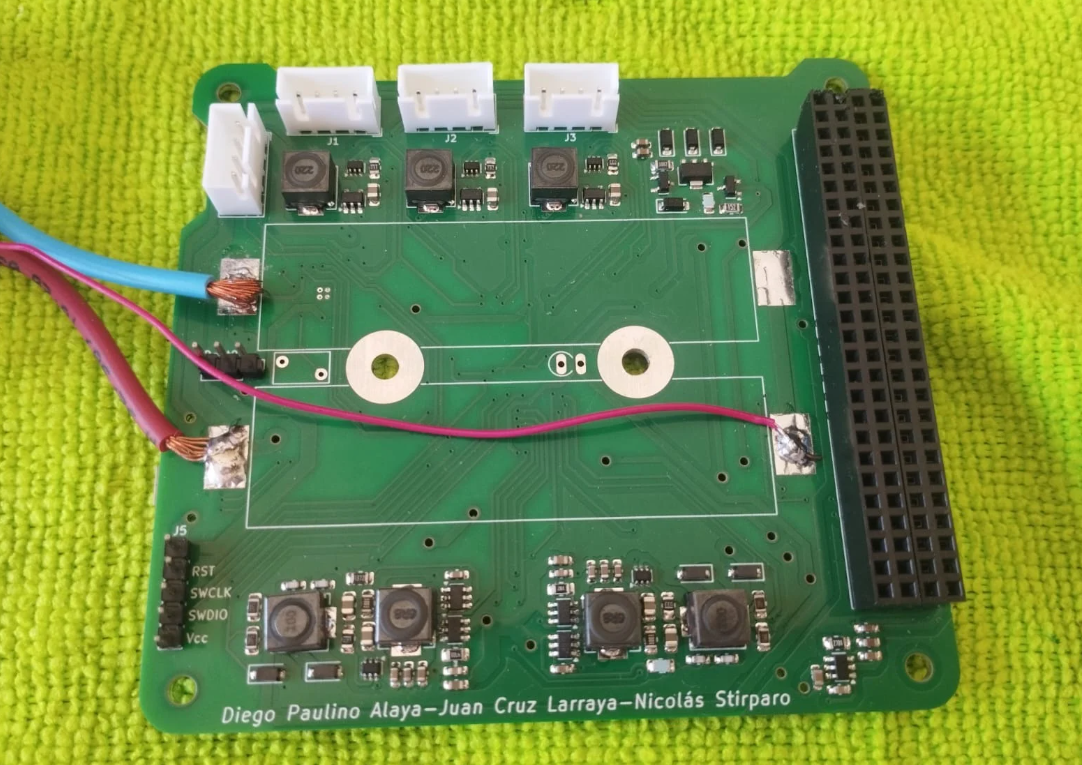

TPP, from the project README
From the project README

Main components on the TPP

LM358INA199xxDCKMCP1700x-330xxMBBQ76905MT3608MP5035GJ-PLMR51430STM32F405RGTx

TPP bill of materials (BOM)

211 components, 51 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
LM358
U1, U2
7
INA199xxDCK
U3, U4, U5, U14, U18, U21, U28
1
MCP1700x-330xxMB
U6
1
BQ76905
U7
3
MT3608
U8, U9, U10
5
MP5035GJ-P
U11, U12, U16, U25, U26
4
LMR51430
U13, U19, U27, U30
1
STM32F405RGTx
U15
1
RU8205G
Q1
2
DMG2301L
Q2, Q3
1
DMG2302U
Q4
1
Crystal
Y2
1
X Solar Cell
J1
1
Y Solar Cell
J2
1
Z Solar Cell
J3
1
Rx Tx
J4
1
USB_B_Micro
J6
1
Conn_01x03_Pin
J7
1
Conn_01x02_Pin
J8
1
Conn_01x02_Pin
J9
Show 31 more
QtyPartRefs
1
Dual-Cell Battery
BT2
2
Conn_02x26_Odd_Even
H1, H2
11
CRS08
D1, D4, D5, D6, D9, D10, D11, D12 +3
2
1N4148W
D7, D8
8
SMZxxx
D15, D17, D18, D21, D23, D24, D36, D37
3
22uH
L2, L3, L4
4
6.8uH
L5, L7, L9, L14
4
10uH
L6, L8, L10, L21
16
100nF
C1, C2, C4, C5, C25, C26, C33, C44 +8
10
1uF
C3, C12, C13, C14, C43, C45, C57, C59 +2
14
22uF
C6, C7, C8, C16, C17, C18, C24, C27 +6
12
22uF
C9, C10, C11, C20, C23, C30, C40, C48 +4
5
330nF
C15, C19, C21, C22, C49
8
10pF
C28, C29, C37, C38, C46, C47, C54, C60
2
10nF
C35, C68
1
220nF
C41
3
22pF
C50, C51, C52
1
2.2uF
C55
21
1K5
R1, R2, R3, R21, R26, R36, R43, R47 +13
11
100K
R4, R5, R6, R7, R8, R9, R39, R41 +3
7
Rcs
R10, R11, R12, R46, R49, R52, R60
2
100
R13, R24
1
0.1
R14
6
180k
R15, R16, R17, R27, R29, R31
6
10k
R18, R19, R20, R28, R30, R32
2
1K5
R22, R37
2
0.47
R23, R25
3
5k6
R33, R34, R35
1
33k
R38
4
13k7
R42, R45, R50, R59
1
56K
R73

TPP design files

The KiCad project lives in the juan-LARRAYA/TPP repository on GitHub; these links point at the commit this page was built from.

TPP: common questions

What microcontroller does the TPP use?

The TPP is built around the STM32F405RGTx, from the STM32 family.

How big is the TPP PCB?

The TPP measures 96 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TPP?

211 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TPP design files?

From the juan-LARRAYA/TPP repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TPP design in my own project?

The repository has no license, so all rights stay with juan-LARRAYA. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TPP without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
